Plenum Chamber

Plenum Chamber

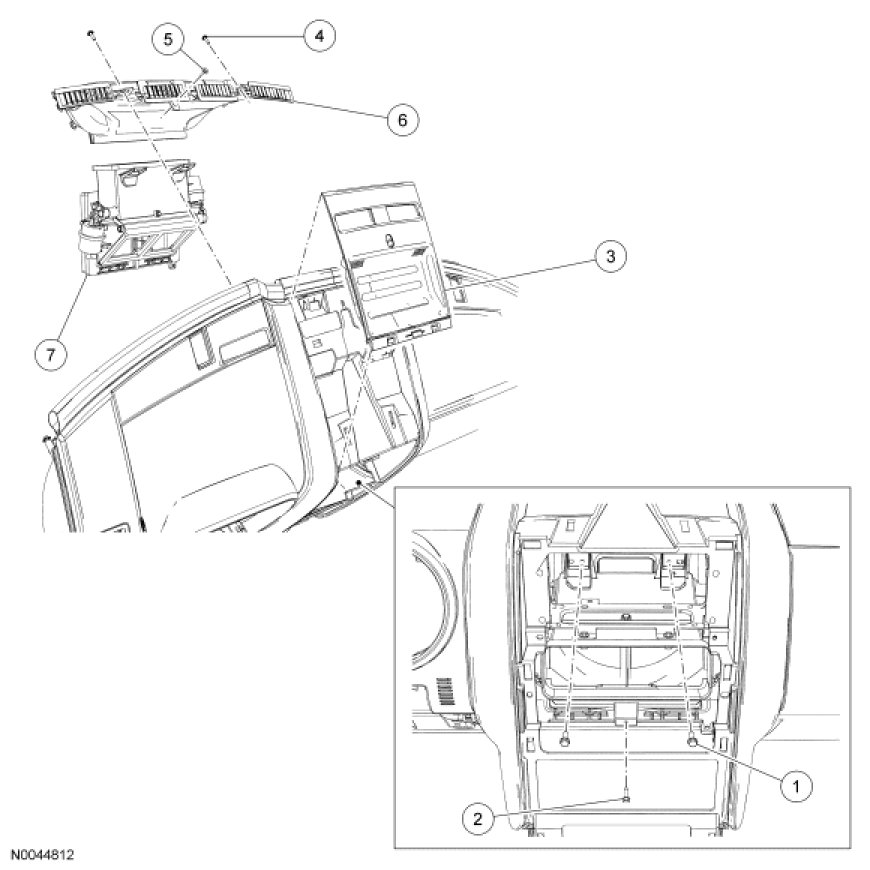

Removal and Installation

1. Remove the instrument panel. For additional information, refer to Service and Repair

2. Remove the Audio Control Module (ACM). For additional information, refer to Accessories and Optional Equipment.

3. Remove the 3 plenum chamber screws.

4. Remove the instrument panel upper finish panel.

5. Remove the 3 defroster duct screws.

6. Remove the defroster duct.

7. Remove the plenum chamber.

8. To install, reverse the removal procedure.
