Acceleration/Deceleration Sensor: Service and Repair

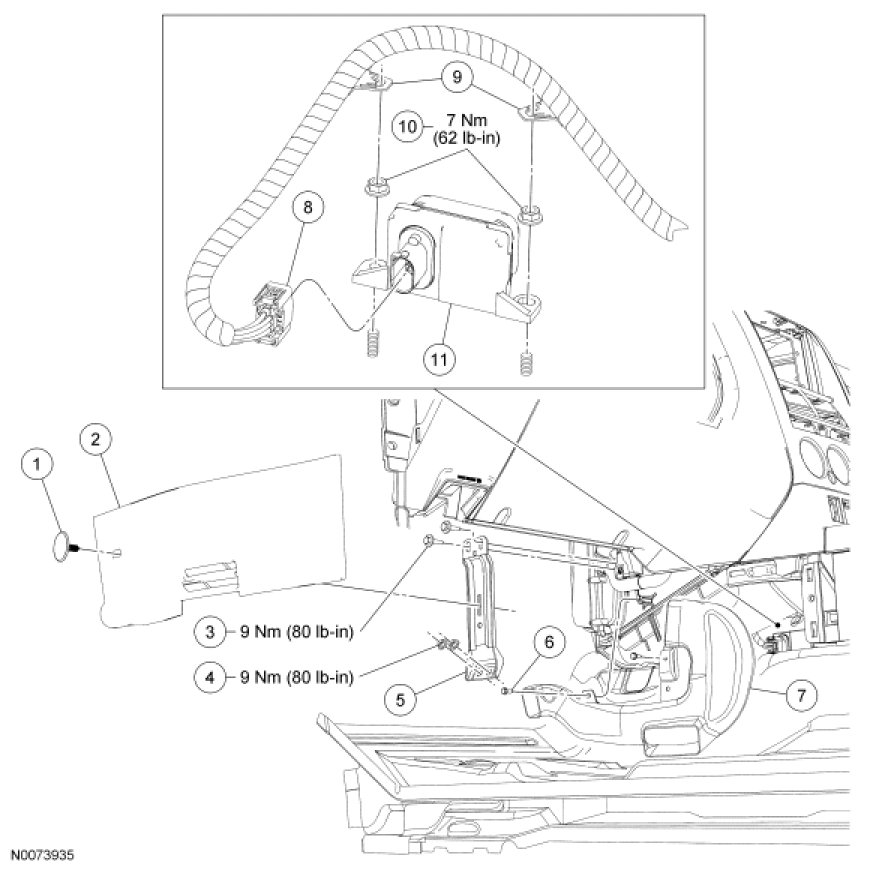

Stability Control Sensor Cluster









Removal and Installation

NOTE: When installing a new stability control sensor cluster, the ABS module must be calibrated. Follow the scan tool directions for the calibration procedures.

1. Remove the pin-type retainer and the LH floor console finish panel.

2. Remove the 2 bolts, 2 nuts and the LH instrument panel brace.
- To install, tighten to 9 Nm (80 lb-in).

3. Remove the 2 bolts and LH floor heater duct.

4. Disconnect the stability control sensor cluster electrical connector.

5. Remove the stability control sensor cluster electrical harness retainers and position aside.

6. Remove the 2 stability control sensor cluster bracket nuts and the stability control sensor cluster.
- To install, tighten to 7 Nm (62 lb-in).

7. To install, reverse the removal procedure.
