Front Brake Caliper: Notes
WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

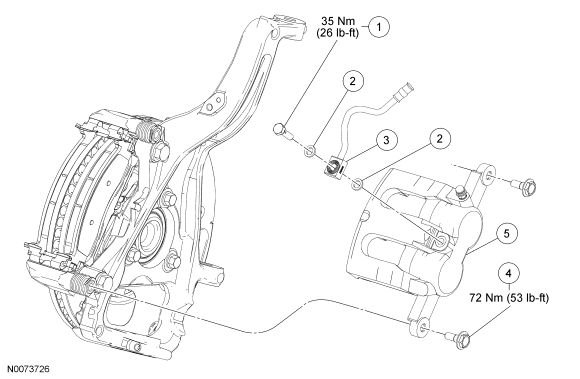

| Item | Part Number | Description |
|---|---|---|
| 1 | 385116 | Brake hose flow bolt |
| 2 | 2149 | Copper washers (2 required) |
| 3 | 2078 | Brake hose |
| 4 | 2386 | Brake caliper guide pin bolt (2 required) |
| 5 | 2B120 RH/ 2B121 LH | Brake caliper housing |
