Seat Backrest - Front: Notes
Front Seat Backrest
NOTE:

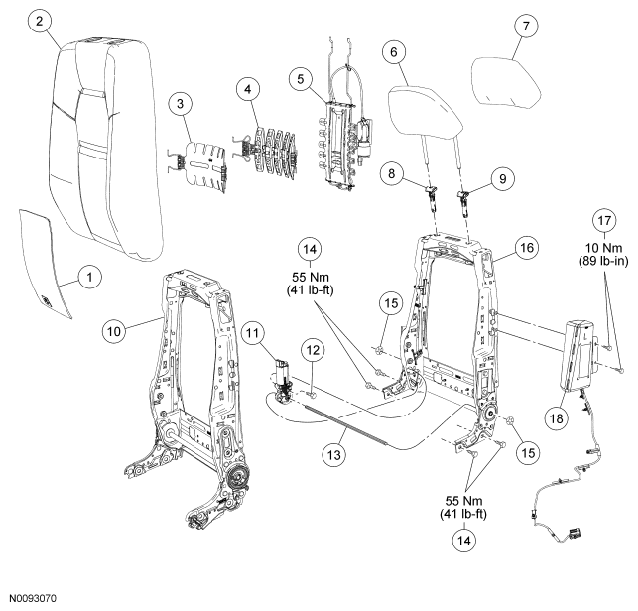

Driver backrest shown in illustration, passenger backrest similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14D696 | Backrest heated seat mat (if equipped) |
| 2 | 64417/64811 | Backrest trim cover/backrest foam pad |
| 3 | 65500 | Static lumbar (if equipped) |
| 4 | 65500 | Manual lumbar adjust assembly (if equipped) |
| 5 | 65500 | Power lumbar adjust assembly (if equipped) |
| 6 | 611A08 | Head restraint assembly |
| 7 | - | Head restraint cover |
| 8 | 610A18 | Inboard head restraint guide sleeve |
| 9 | 610A16 | Outboard head restraint guide sleeve |
| 10 | 61018 | Backrest frame (serviced with manual recliners) (if equipped) |
| 11 | 14547 | Power recline motor (if equipped) |
| 12 | - | Screw (if equipped) (part of 600A58) |
| 13 | 62714 | Recliner shaft (if equipped) |
| 14 | - | Recliner-to-cushion frame bolts (4 required) (part of 600A58) |
| 15 | - | One-way push clips (2 required) (if equipped) (part of 14547) |
| 16 | 61018 | Backrest frame (serviced with power recliners) (if equipped) |
| 17 | - | Side air bag module bolts (2 required) |
| 18 | 611D11 | Side air bag module |
