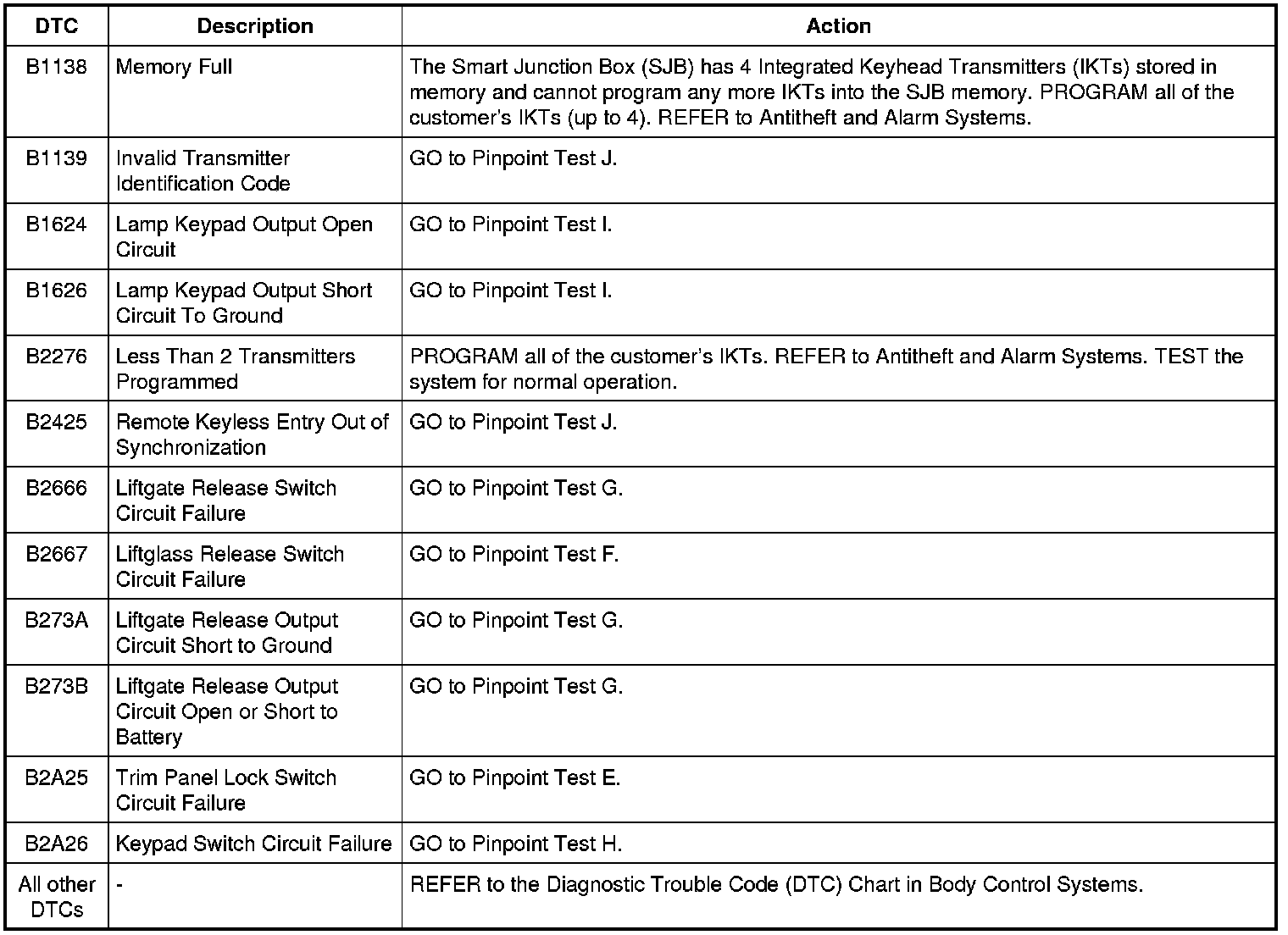

Diagnostic Trouble Code Descriptions




Handles, Locks, Latches and Entry Systems

DTC Charts


Instrument Cluster (IC) DTC Chart







Smart Junction Box (SJB) DTC Chart
