Engine Ignition LH

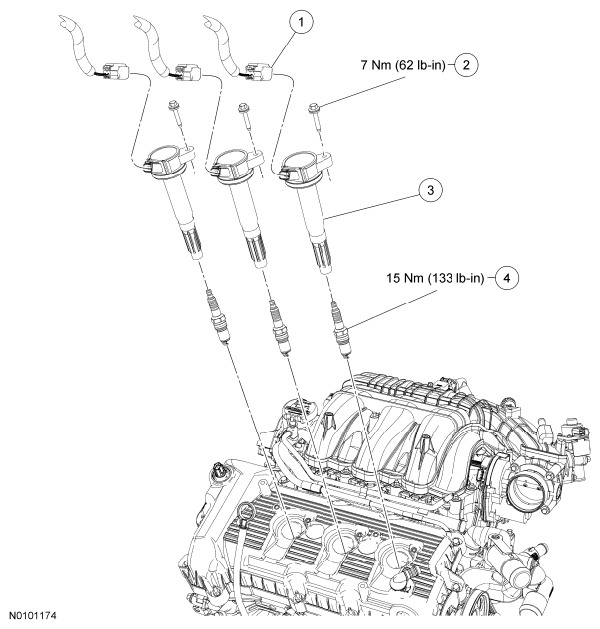

Fig 1: Engine Ignition LH Replacement Components With Torque Specifications
G06390450Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 14A464 LH ignition coil electrical connector (3 required)
2 W708833 LH ignition coil bolt (3 required)
3 12A375 LH ignition coil (3 required)
4 12405 LH spark plug (3 required)
