Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)

Removal and Installation

1. Remove the passenger air bag. For additional information, refer to Restraint Systems.

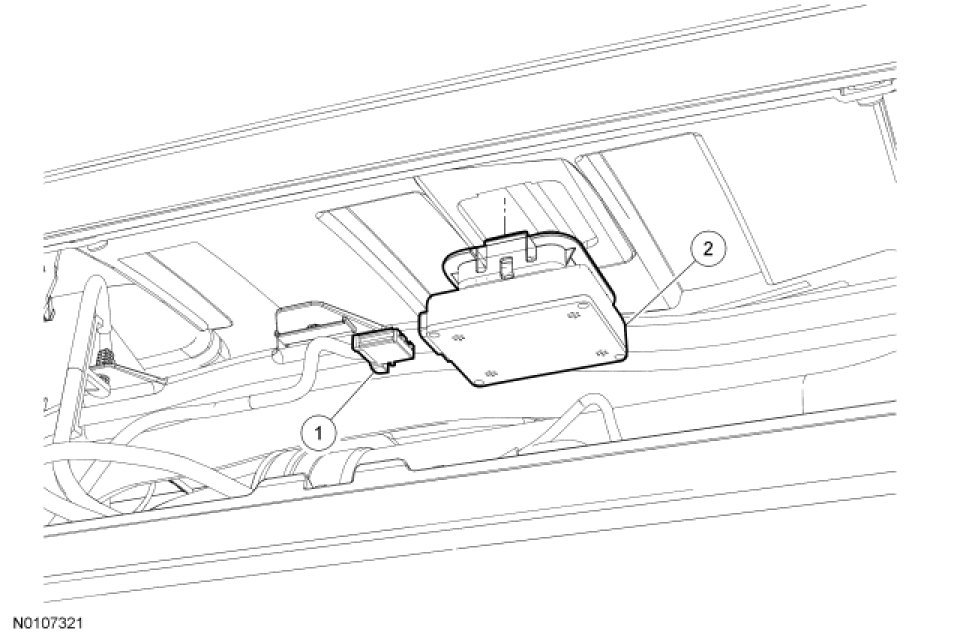

2. Release the clip and remove the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
