Test QA: Unable to Activate Self-Test/Network Communication Error
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test QA: Unable to Activate Self-Test/Network Communication Error
PINPOINT TEST QA: UNABLE TO ACTIVATE SELF-TEST/NETWORK COMMUNICATION ERROR

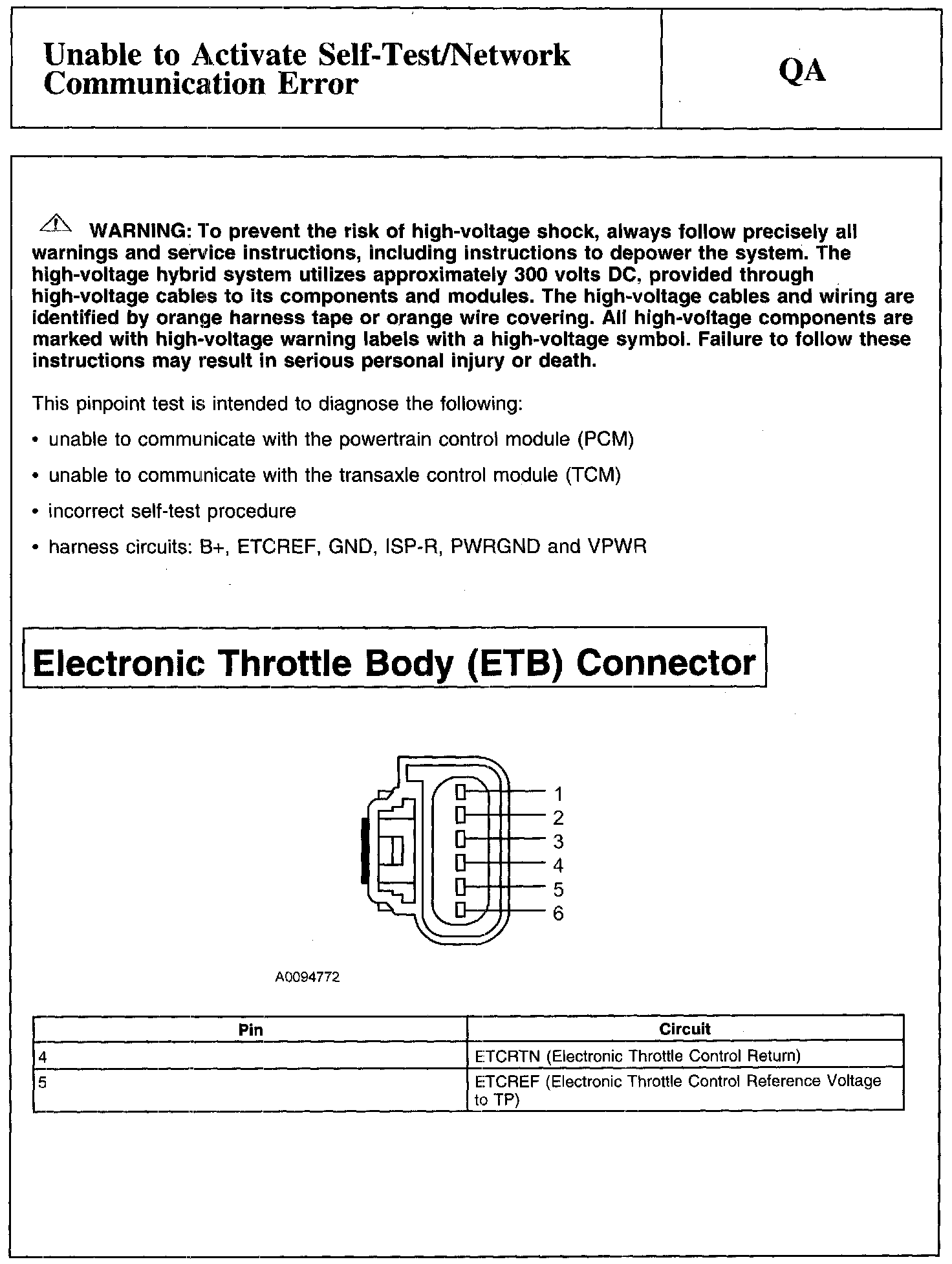

Warning And Electronic Throttle Body (ETB) Connector:

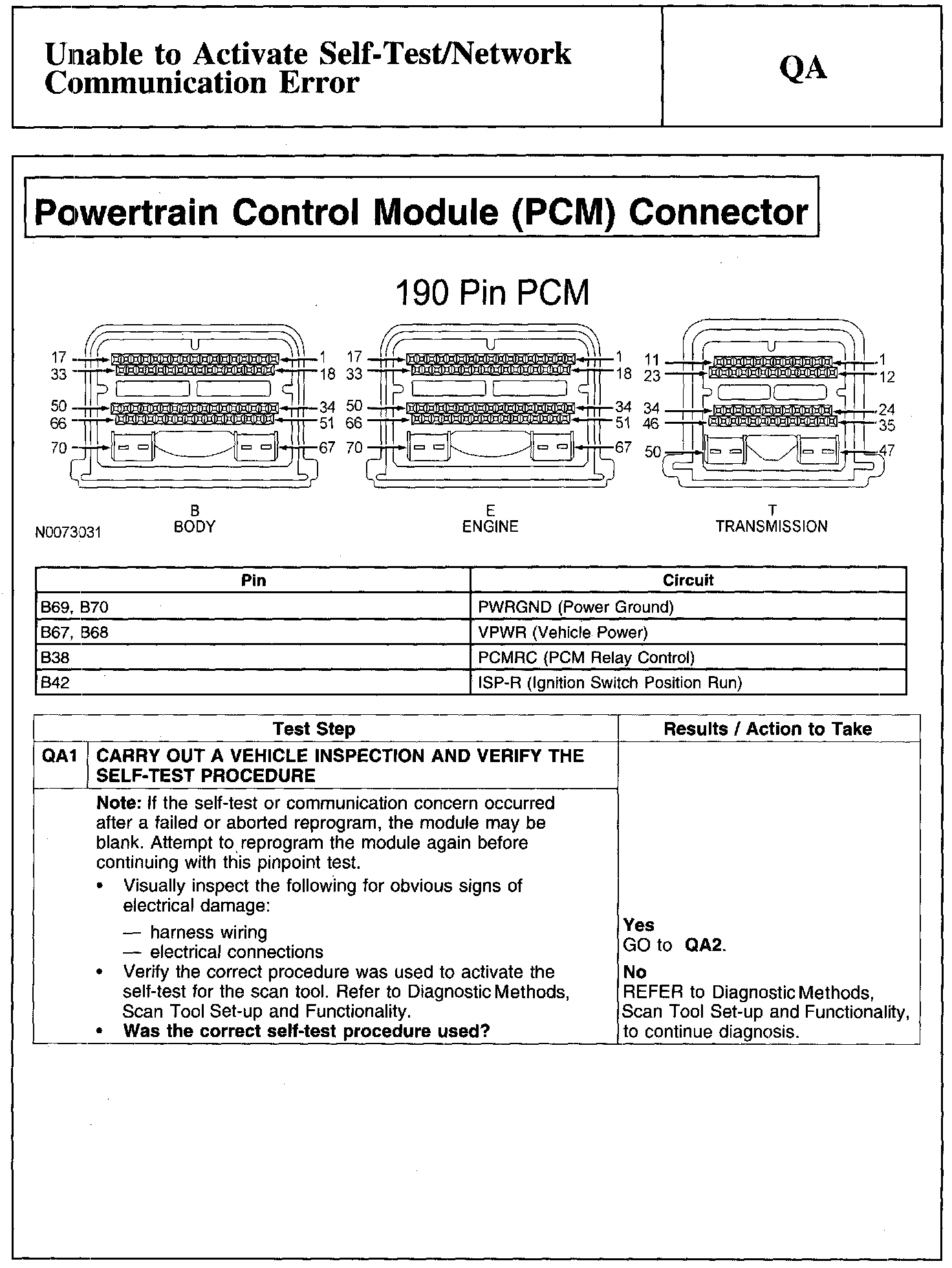

QA1:

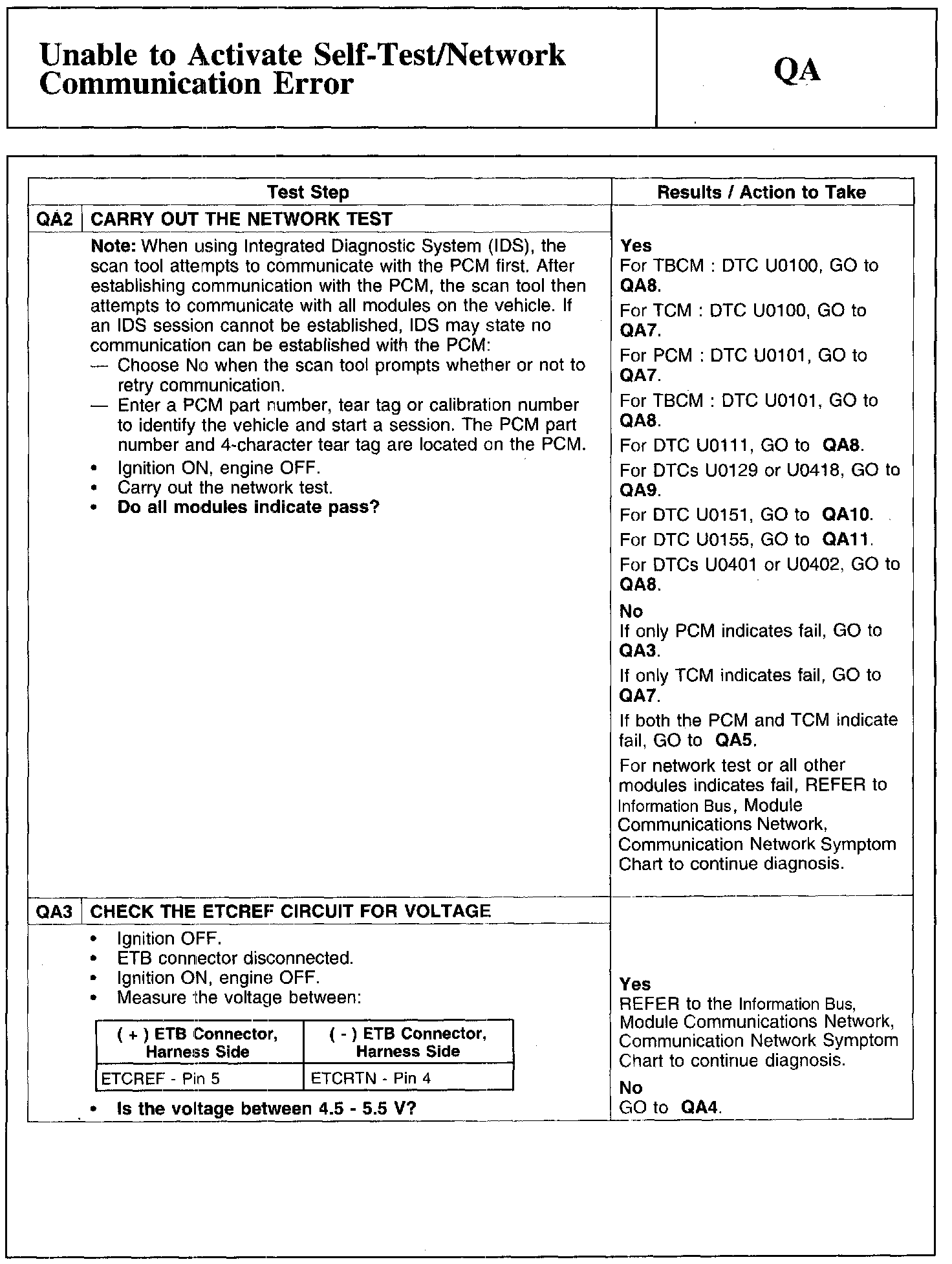

QA2-QA3:

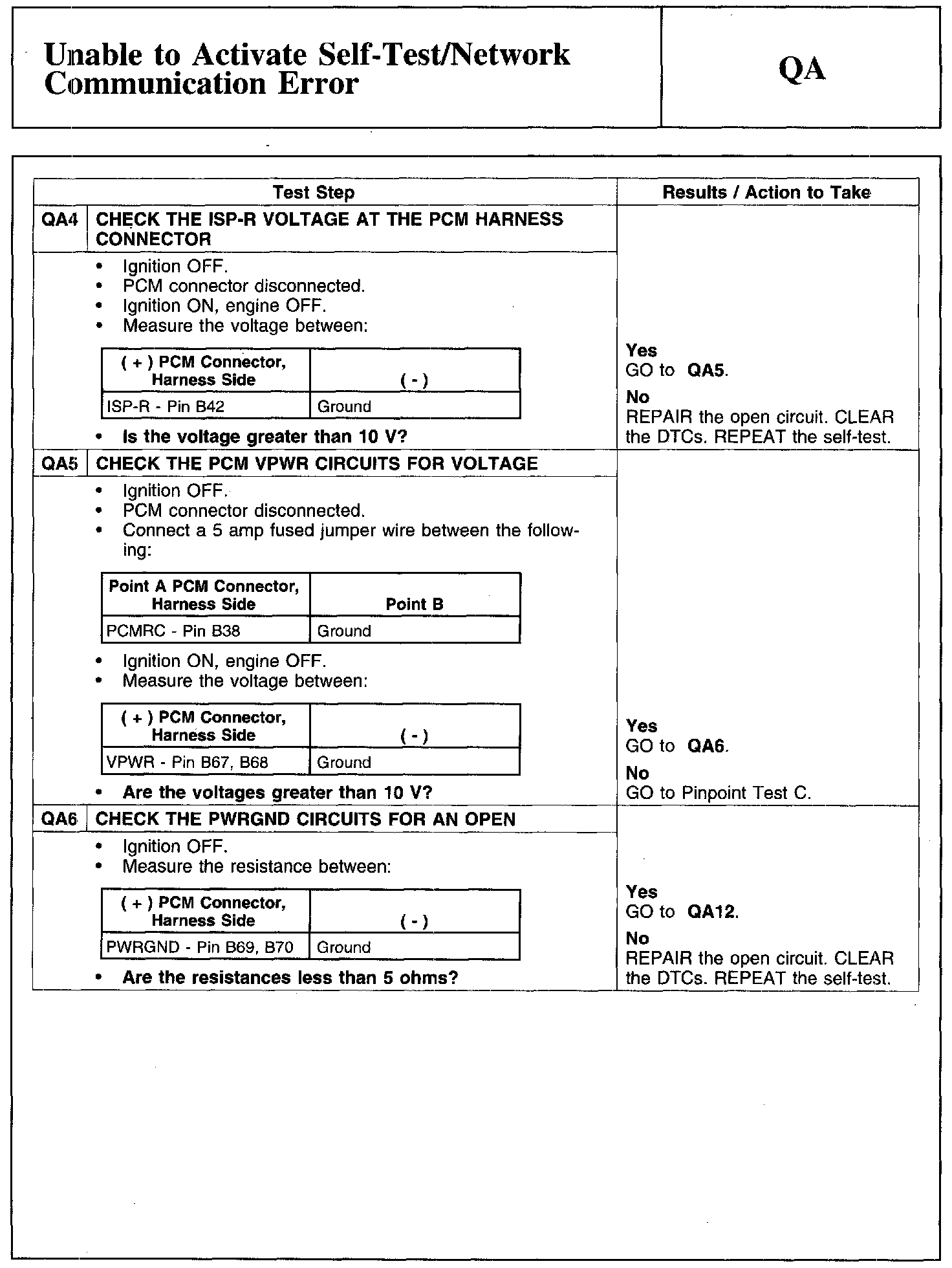

QA4-QA6:

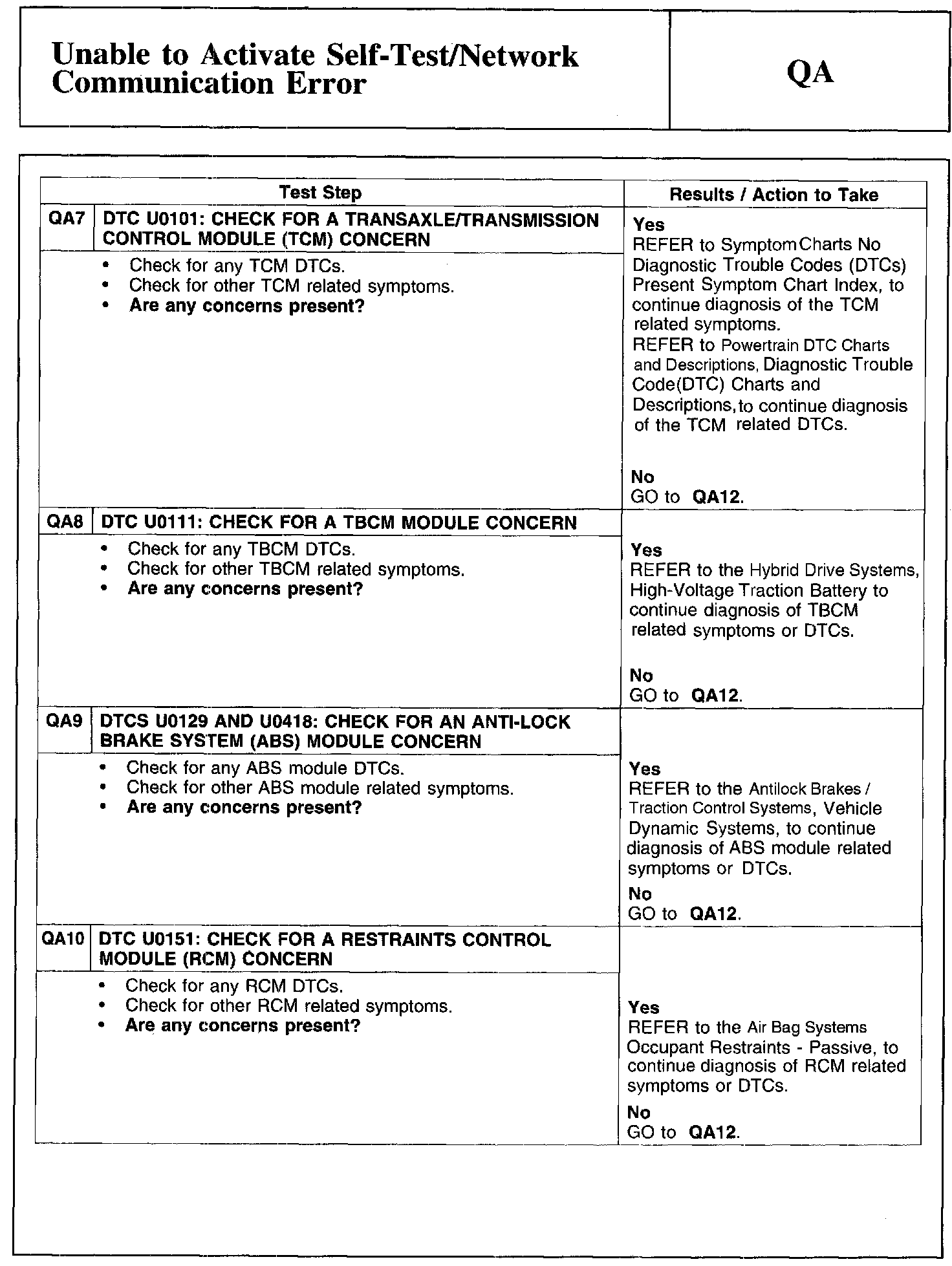

QA7-QA10:

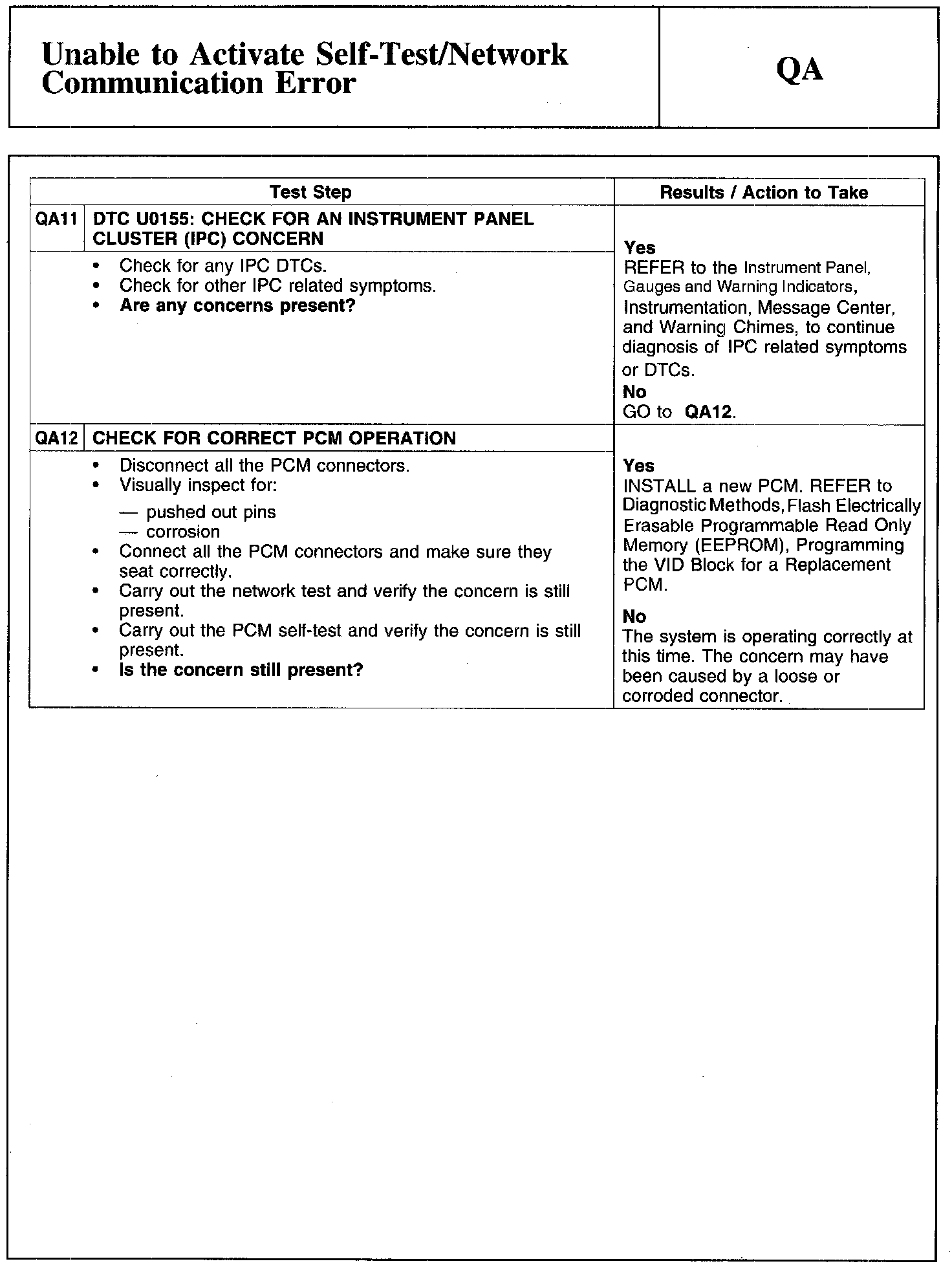

QA11-QA12:
