Liftgate Latch Connector - C479

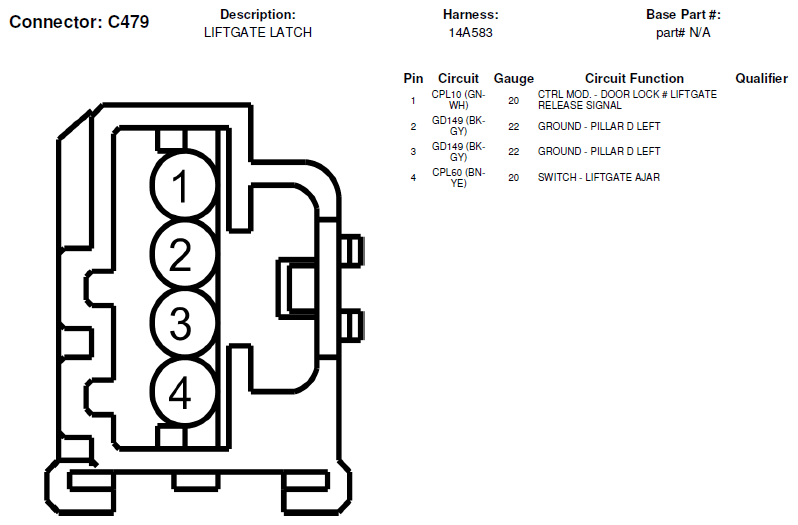

Fig 1: Liftgate Latch Connector End View (C479)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
