Engine Roll Restrictor, Heat Shield and Driveshaft

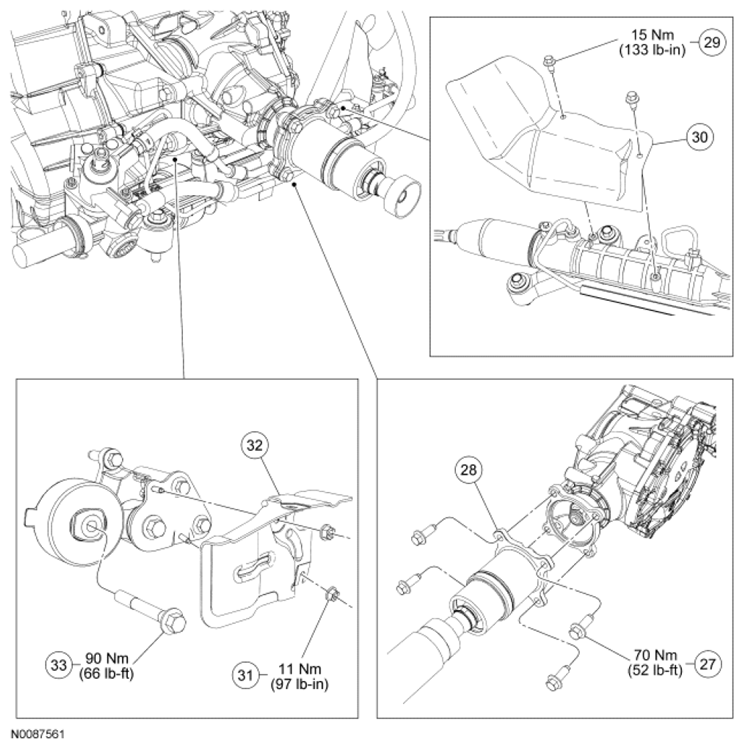

Fig 1: Engine Roll Restrictor, Heat Shield And Driveshaft Replacement Components With Torque Specifications
DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 27 | W711918 | U-joint flange bolts (4 required) (All-Wheel Drive (AWD) only) |
| 28 | 4K357 | Front driveshaft (AWD only) |
| 29 | W500210 | Power steering gear heat shield bolts (2 required) |
| 30 | - | Power steering gear heat shield |
| 31 | W700101 | Engine roll restrictor shield nut (2 required) |
| 32 | 6C038 | Engine roll restrictor shield |
| 33 | W706674 | Engine roll restrictor bolt |
- For additional information, refer to the appropriate procedure(s).
