Test TB: Transmission Control Switch (TCS)/Transmission Control Indicator Lamp (TCIL)
PINPOINT TEST
TB
: TRANSMISSION CONTROL SWITCH (TCS)/TRANSMISSION CONTROL INDICATOR LAMP (TCIL)

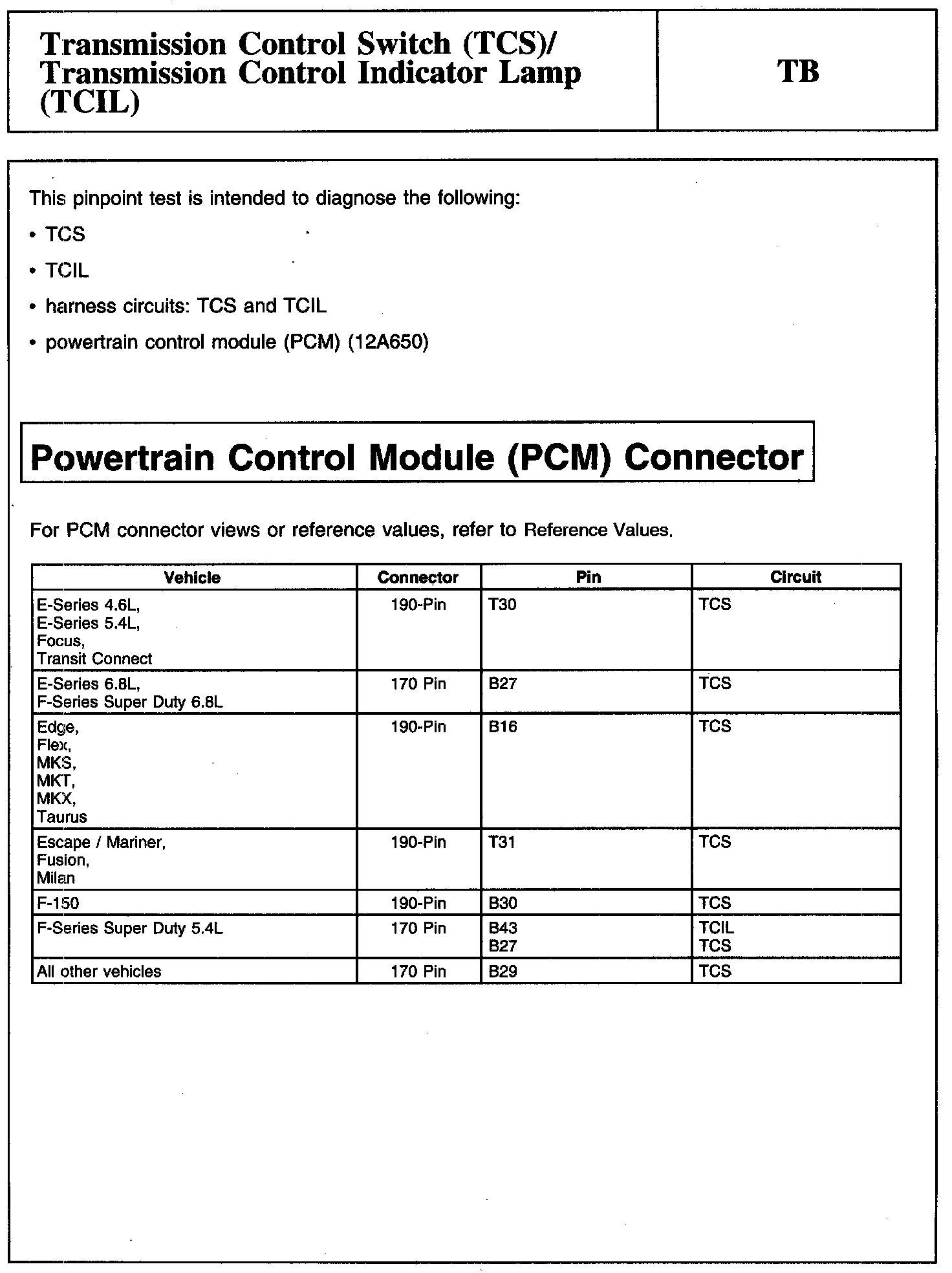

Powertrain Control Module (PCM) Connector:

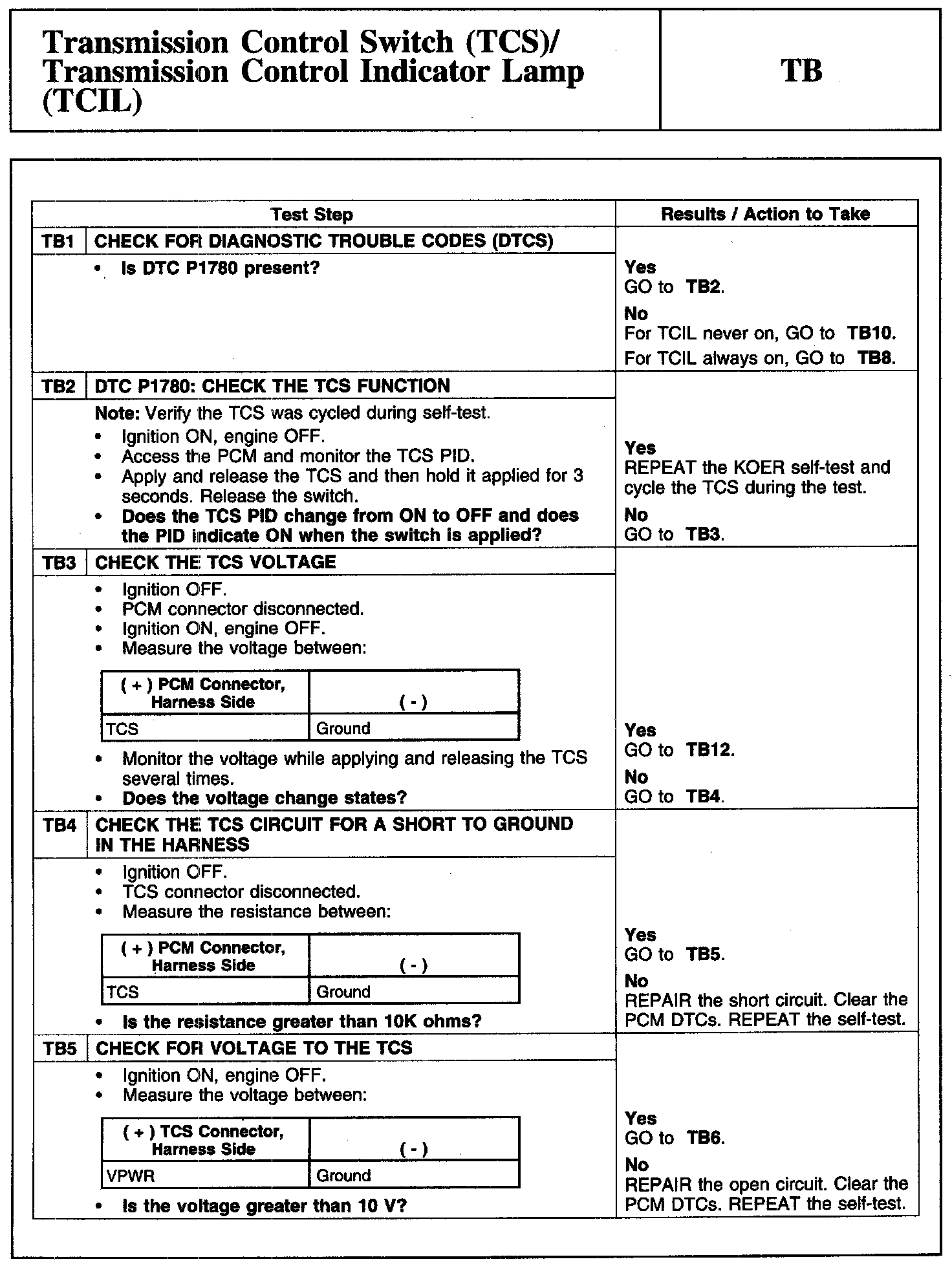

TB1-TB5:

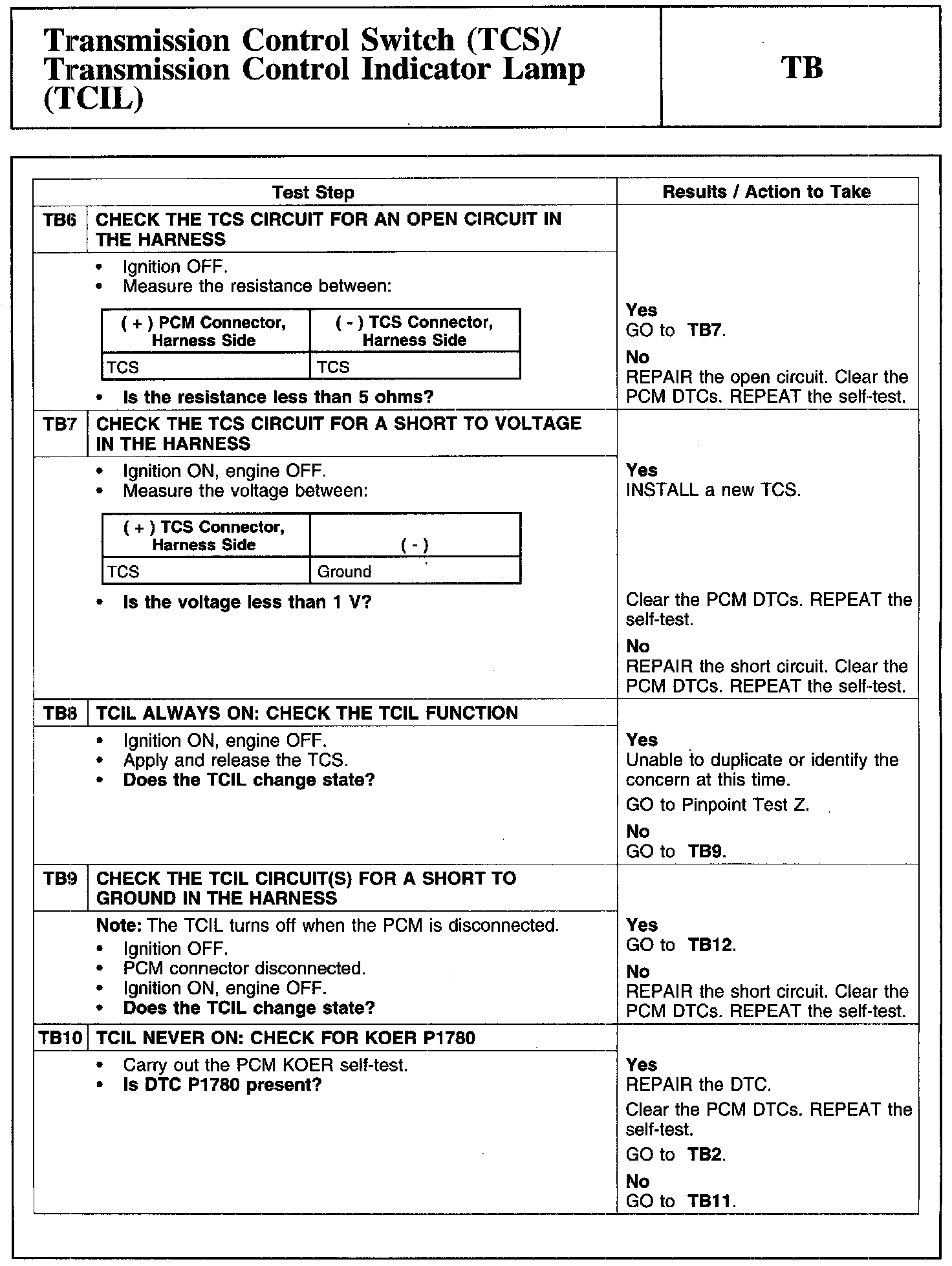

TB6-TB10:

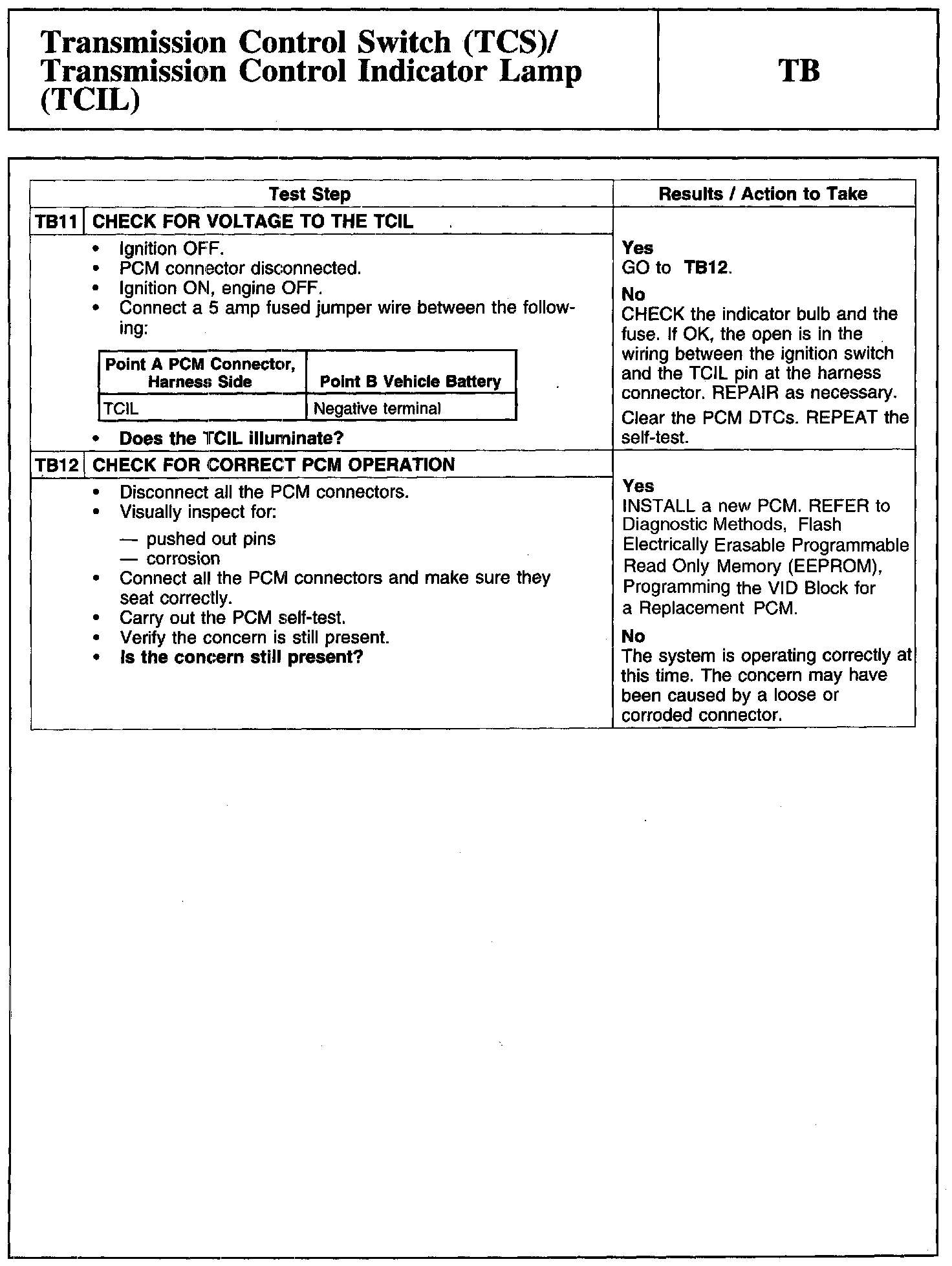

TB11-TB12:
