Test M: Fuel Pump Monitor/Control
PINPOINT TEST M: FUEL PUMP MONITOR/CONTROL

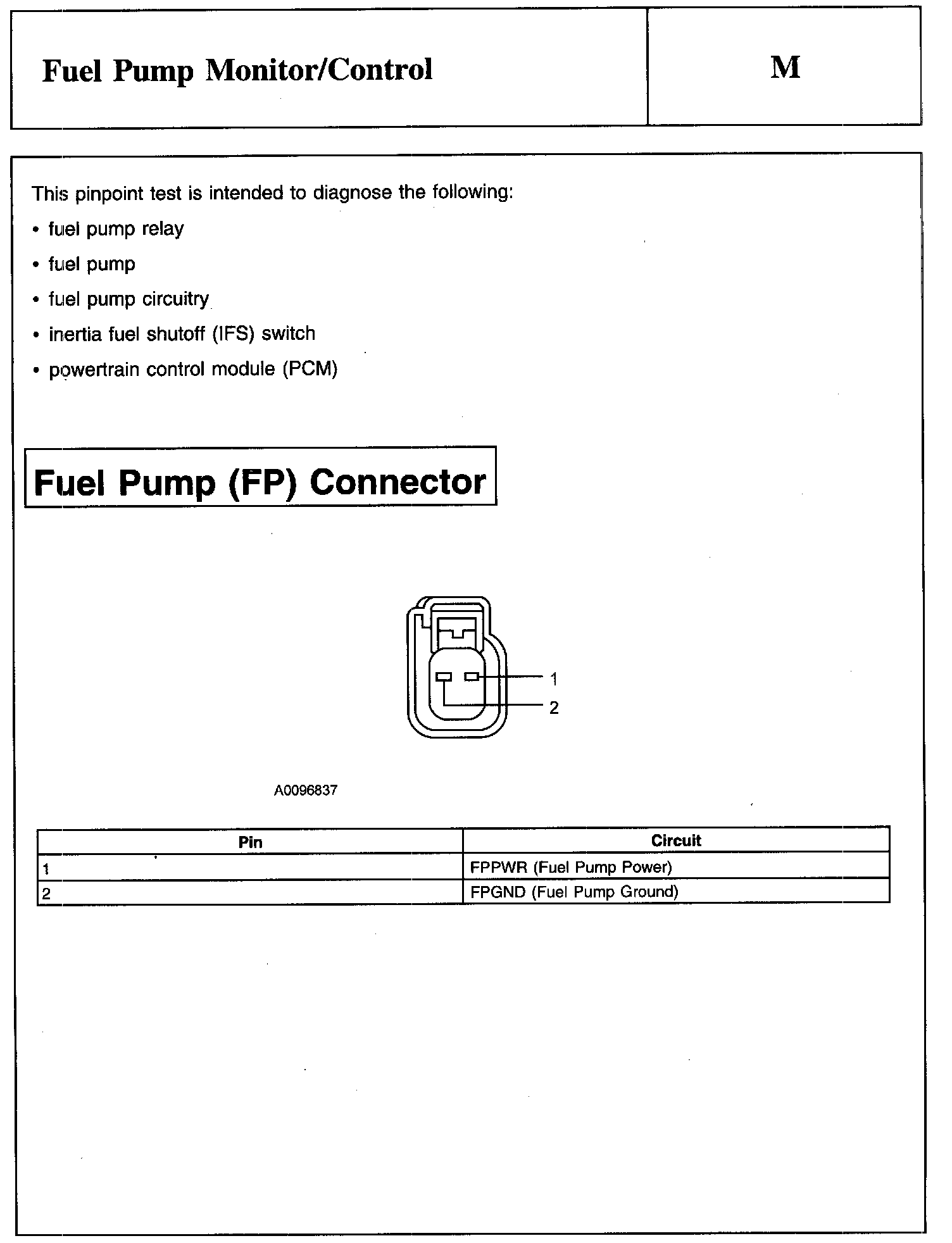

Fuel Pump (FP) Connector:

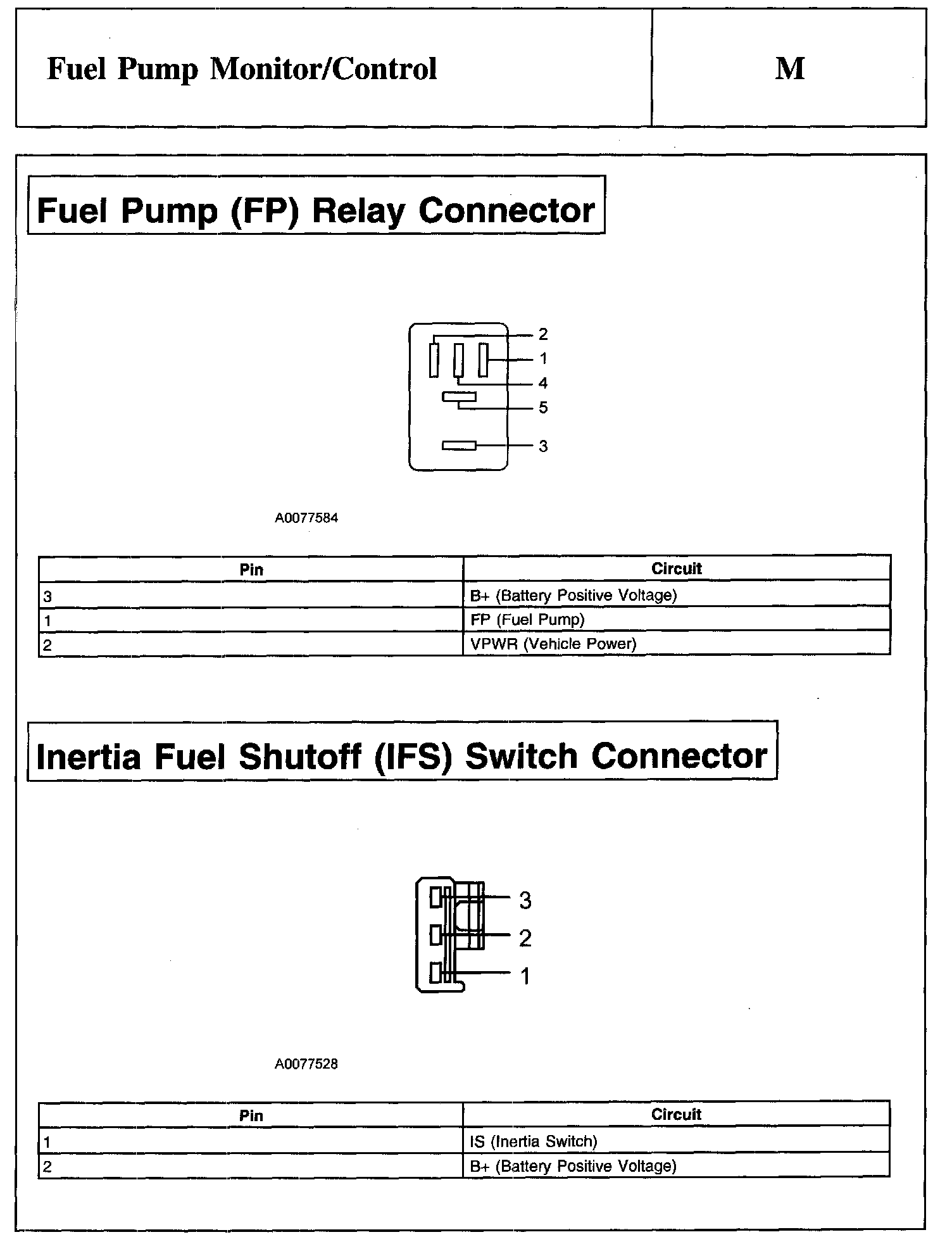

Fuel Pump (FP) Relay Connector And Inertia Fuel Shutoff (IFS) Switch Connector:

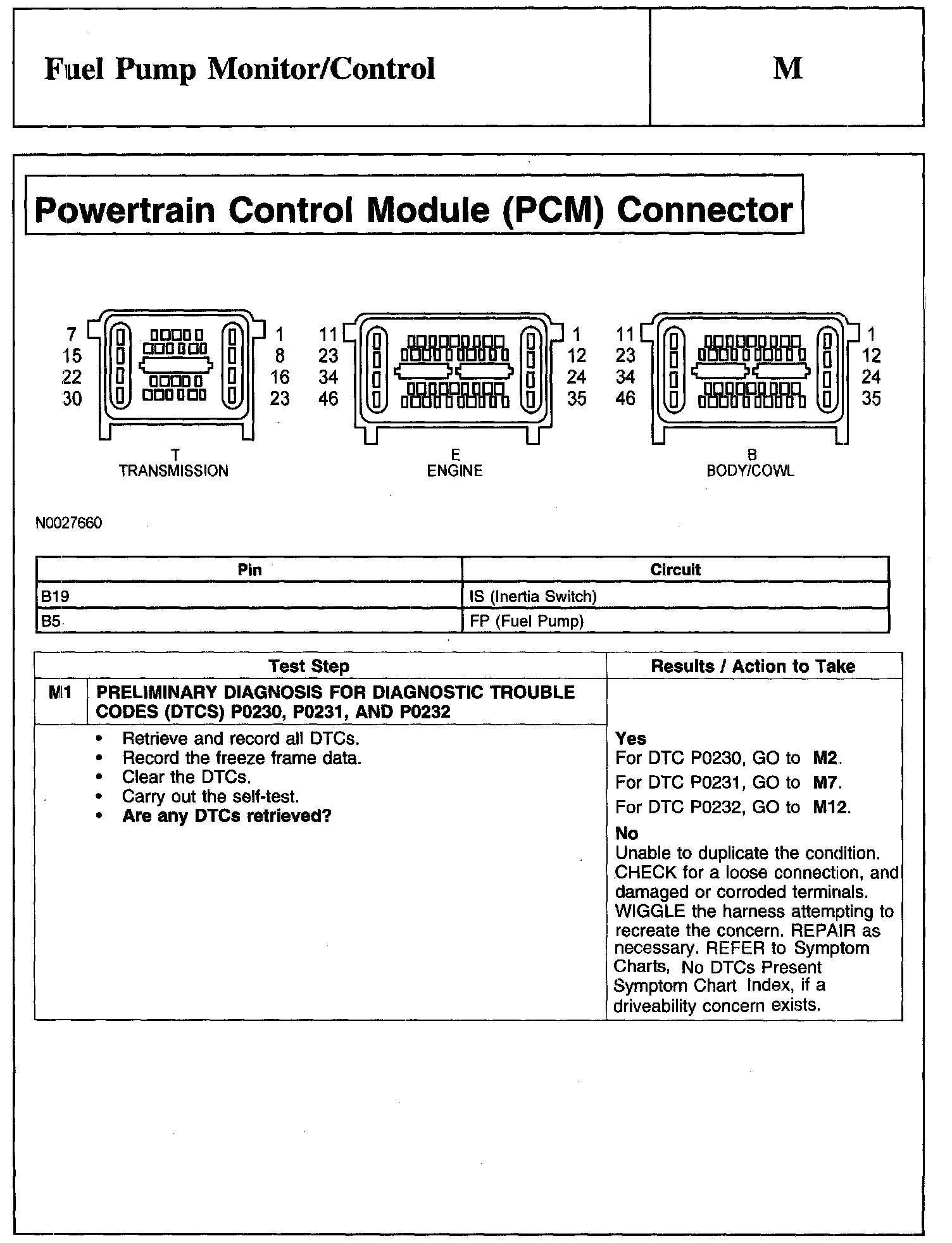

M1:

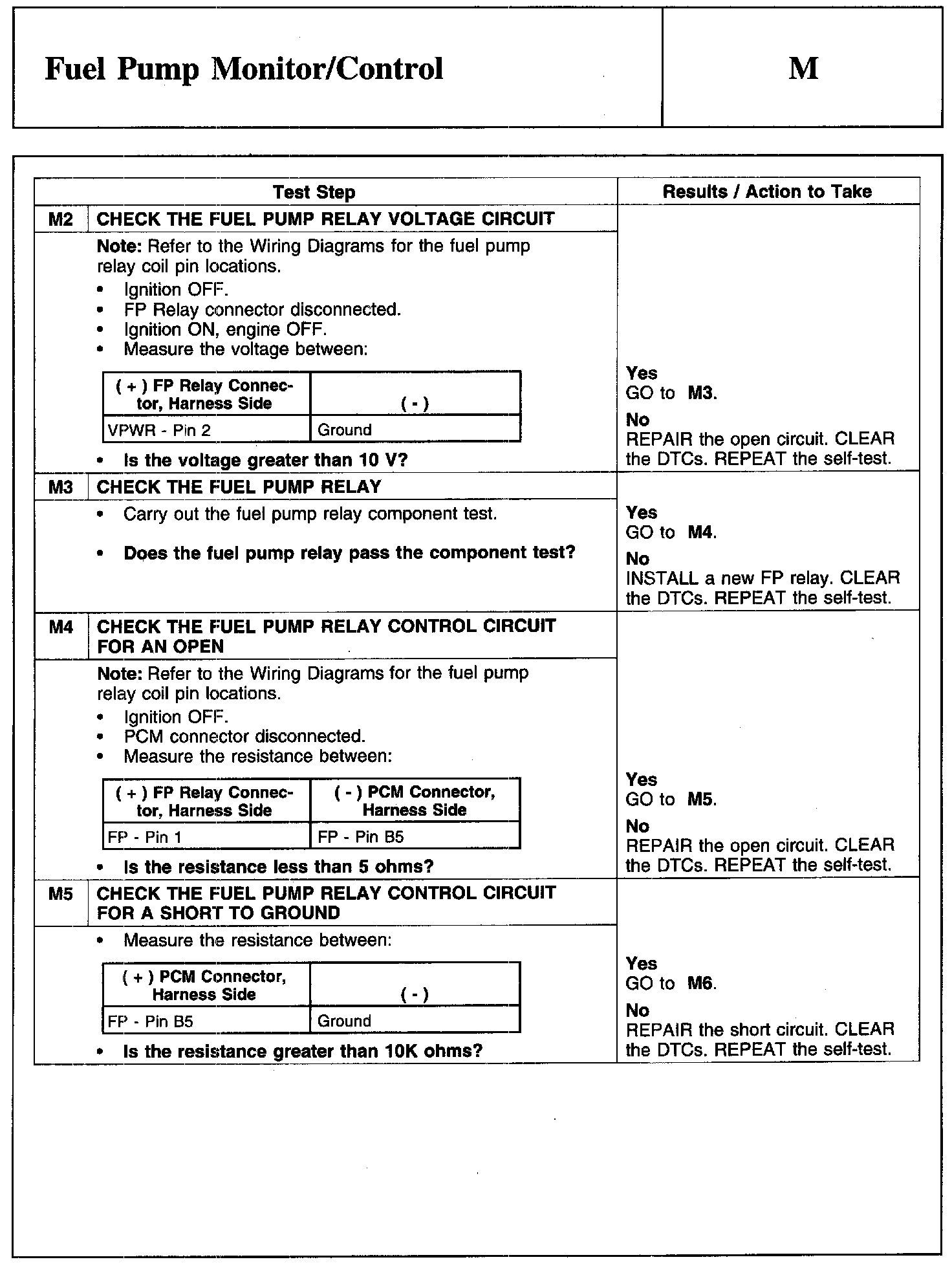

M2-M5:

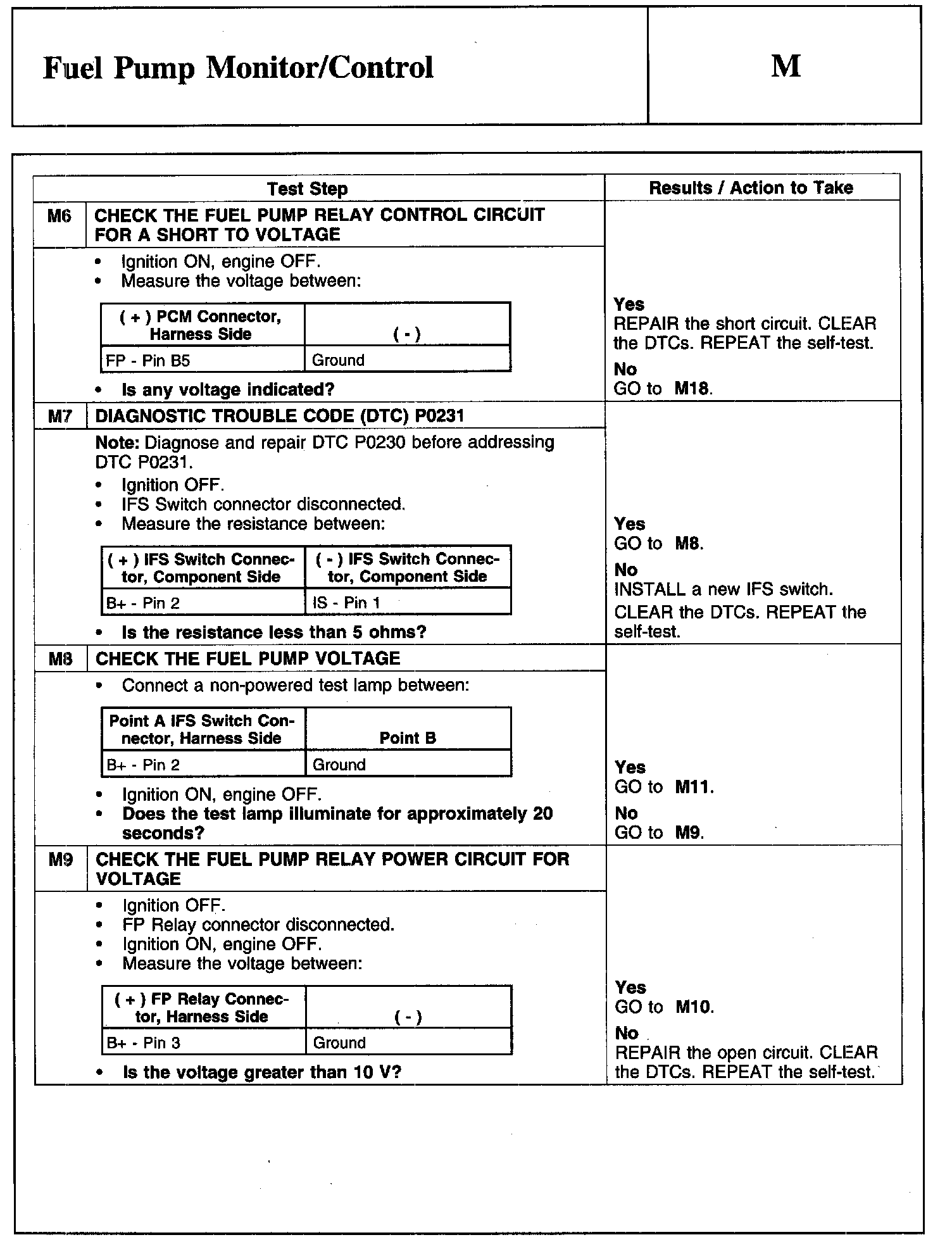

M6-M9:

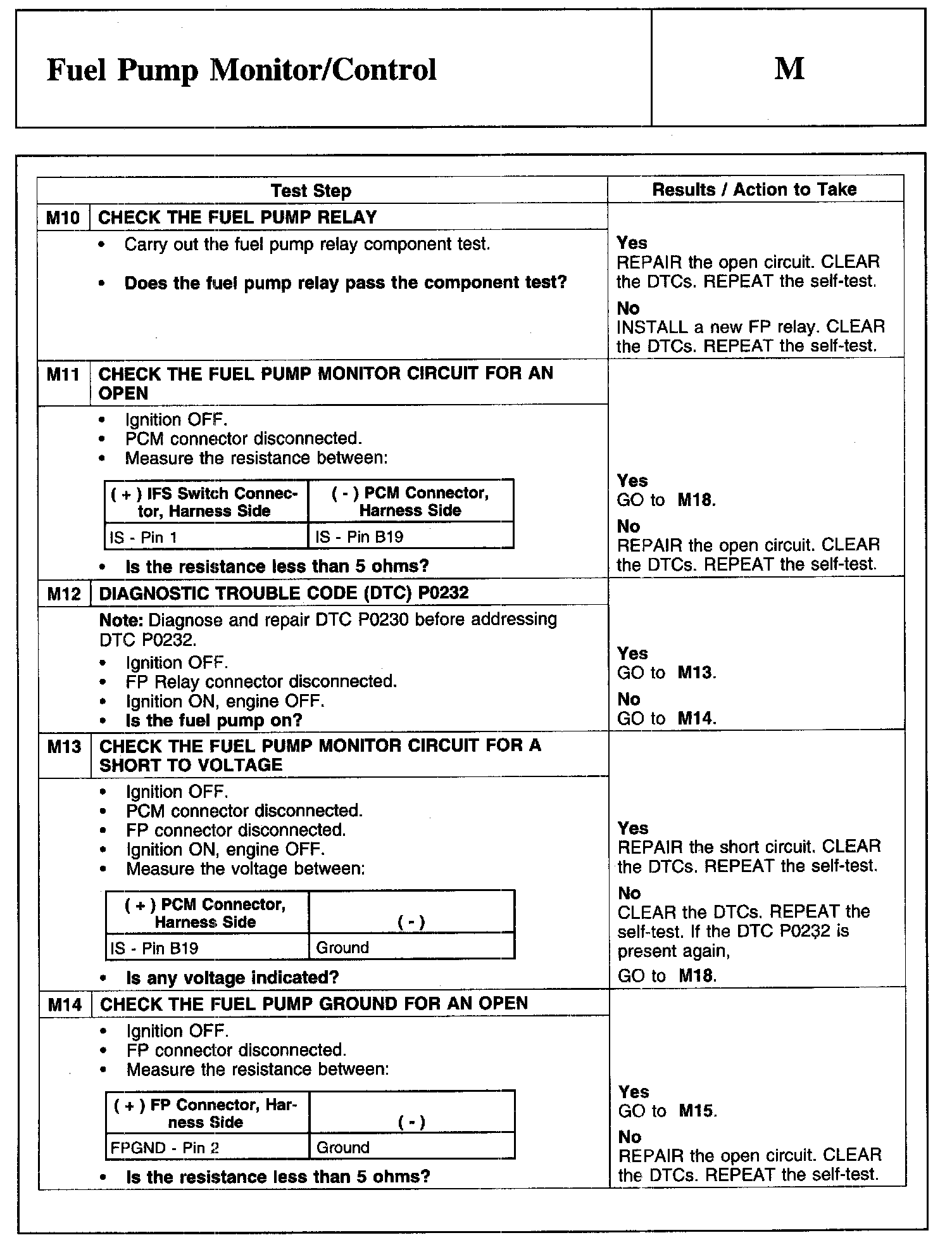

M10-M14:

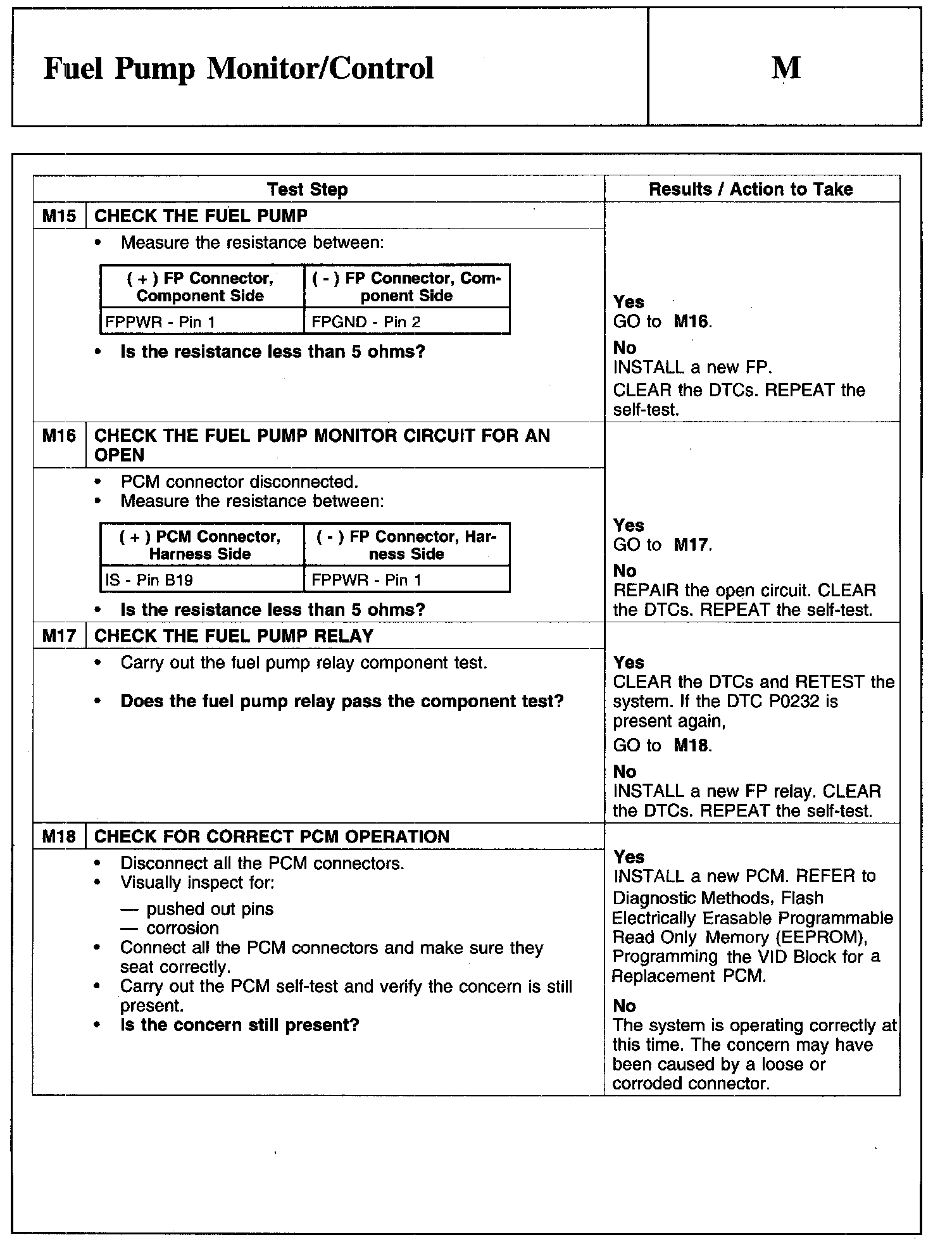

M15-M18:
