Test AT: Fuel Injector Control Module (FICM) Circuit Fuel Delivery Error
PINPOINT TEST AT:
FUEL INJECTOR CONTROL MODULE
(FICM) CIRCUIT FUEL DELIVERY ERROR

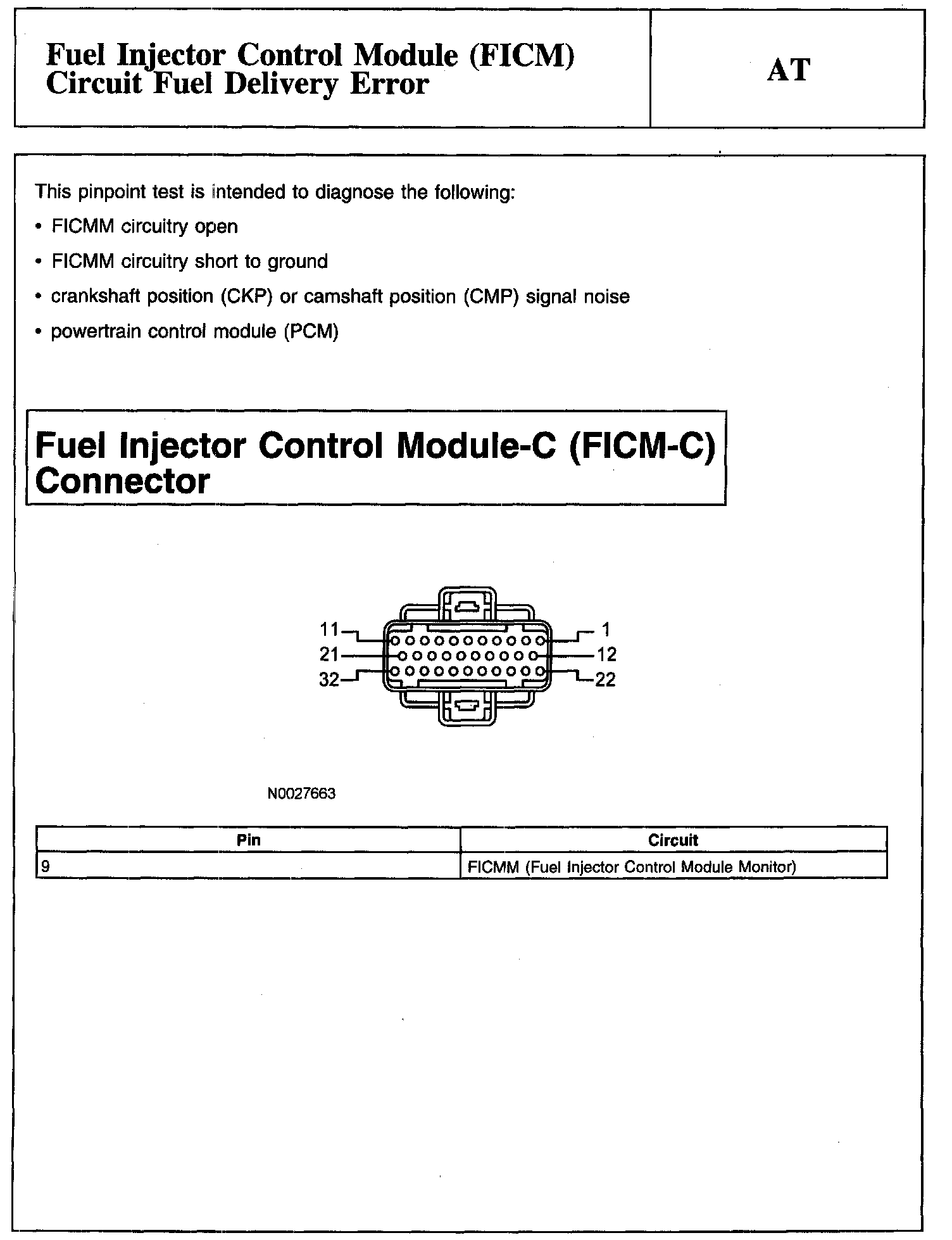

Fuel Injector Control Module-C (FICM-C) Connector:

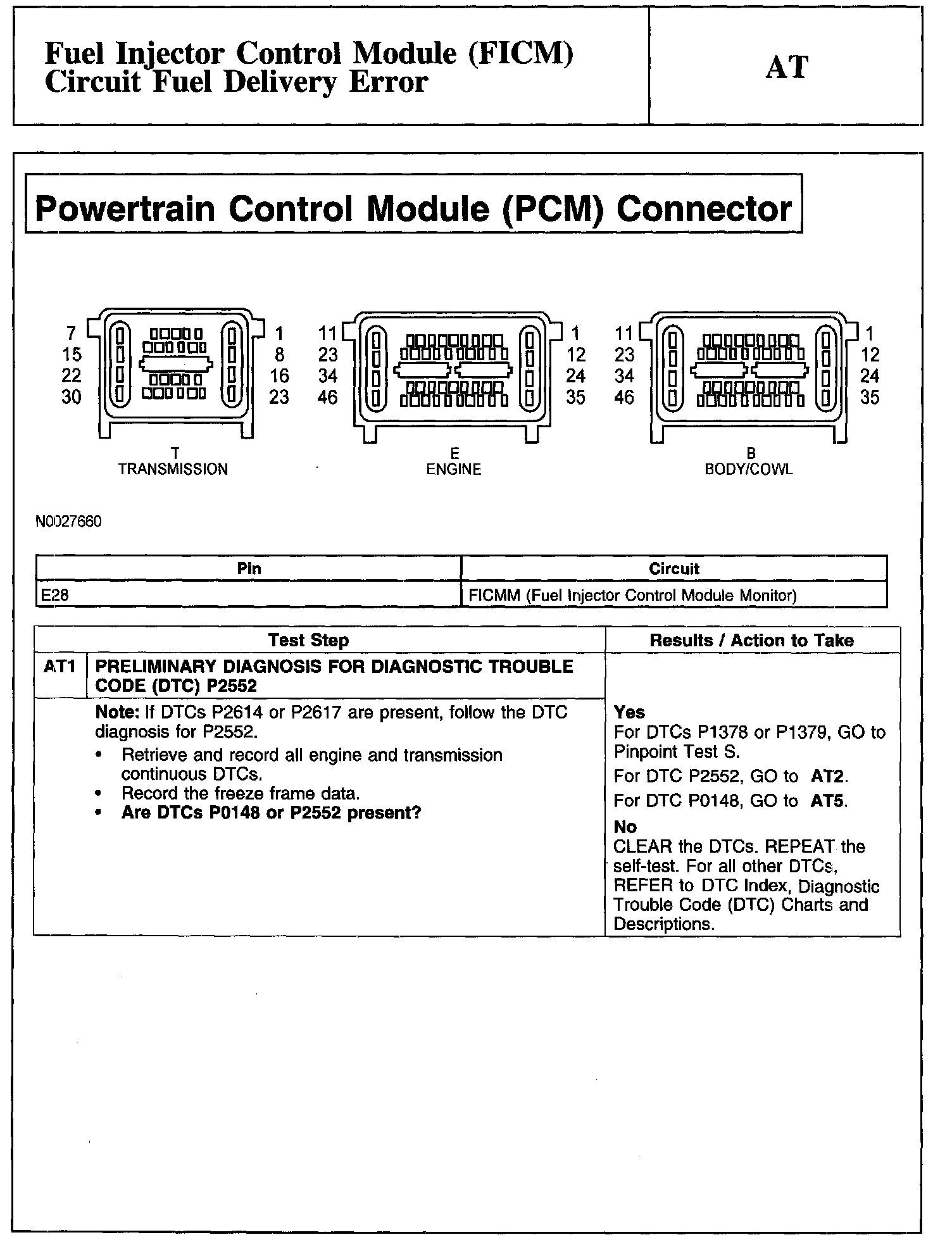

AT1:

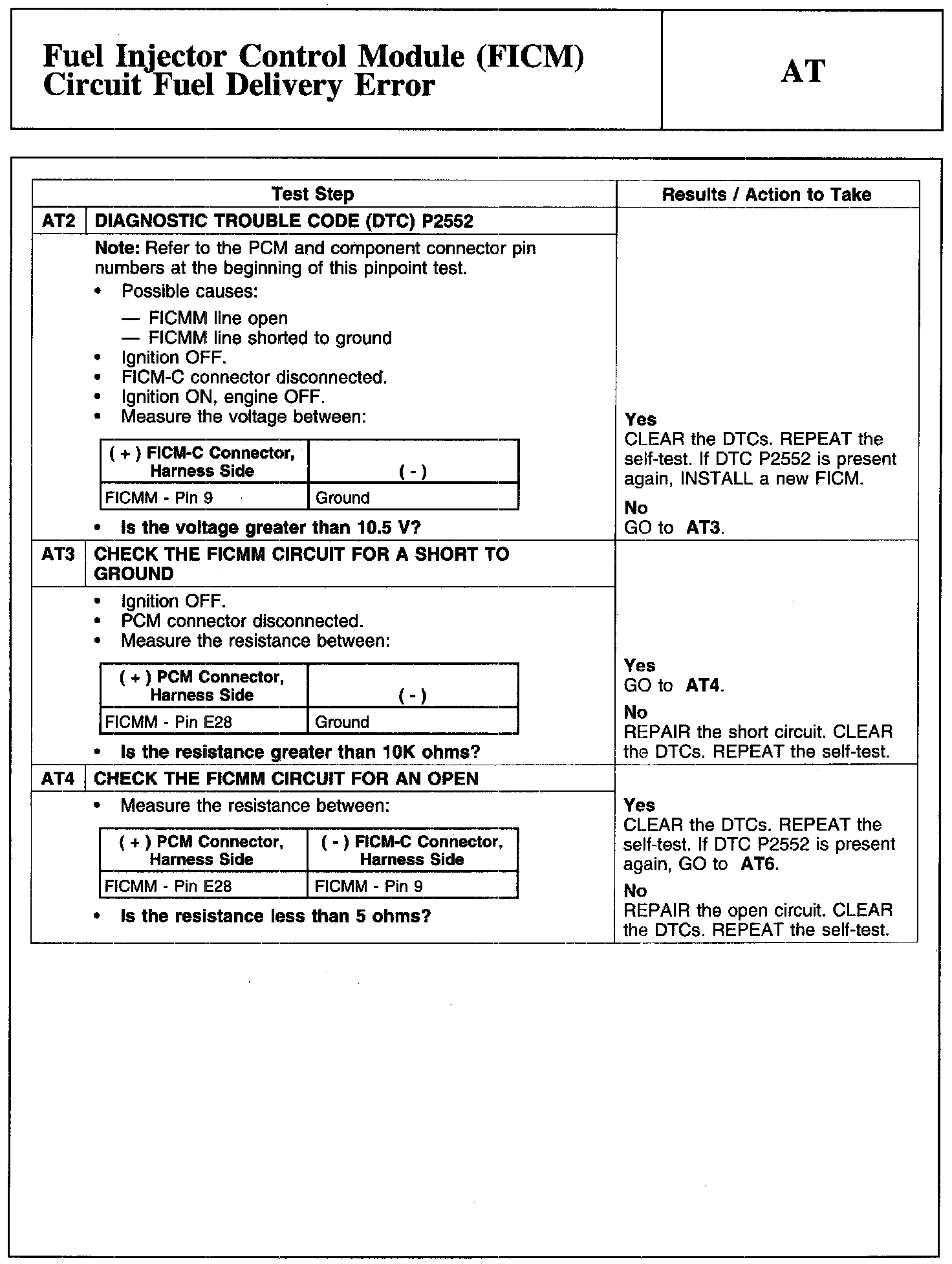

AT2-AT4:

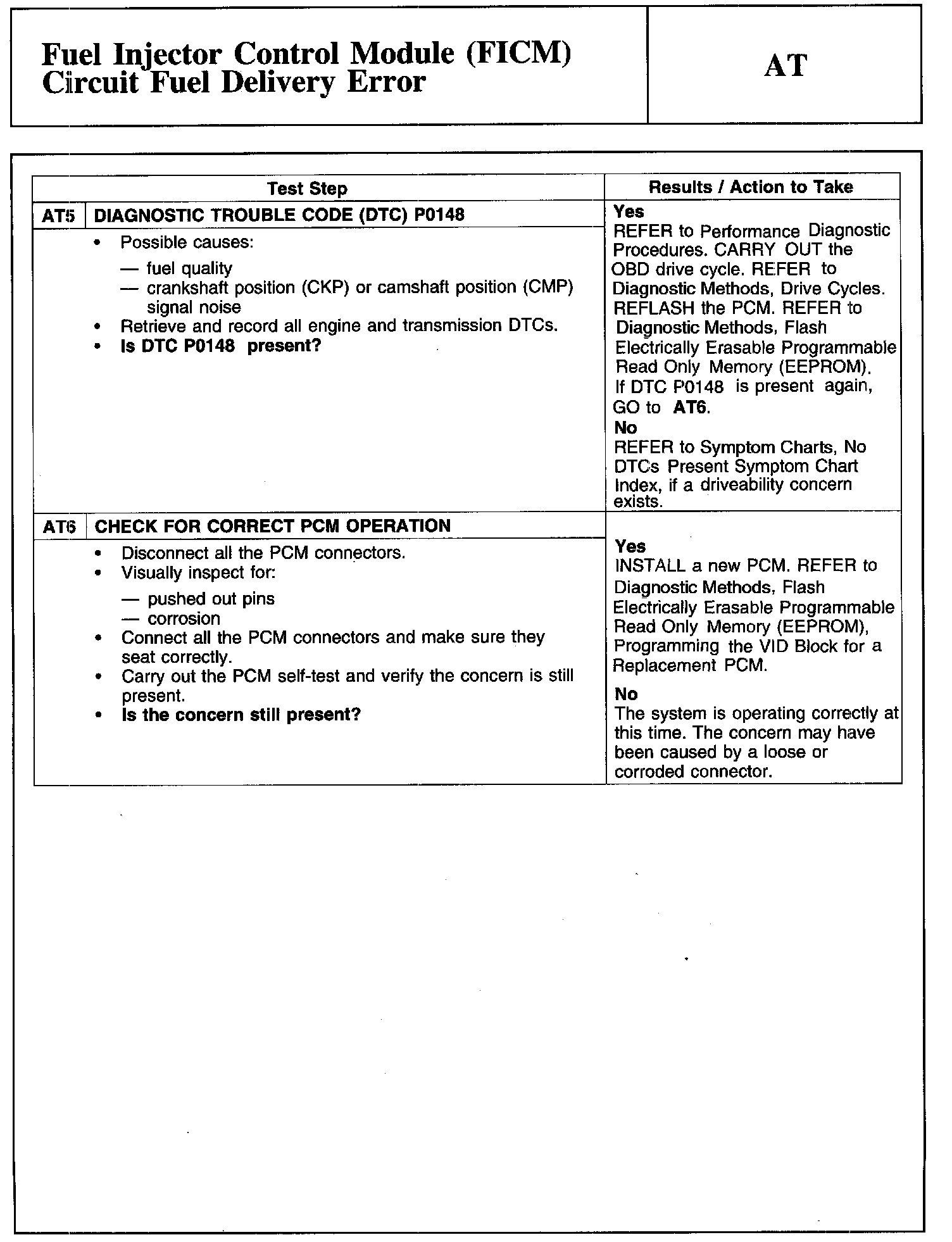

AT5-AT6:
