Test A: Powertrain Control Module (PCM) Power Relay
PINPOINT TEST A: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

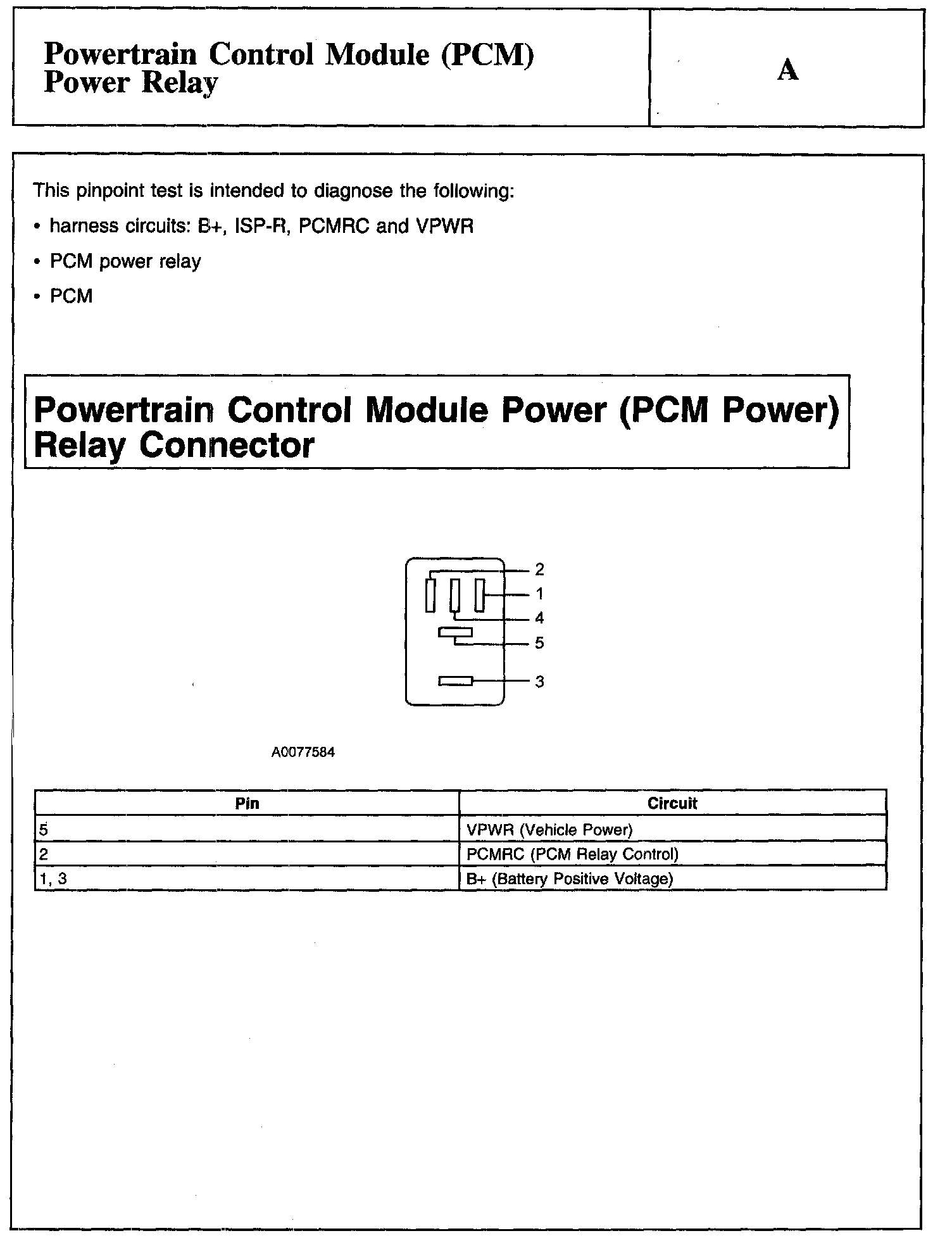

Powertrain Control Module Power (PCM Power) Relay Connector:

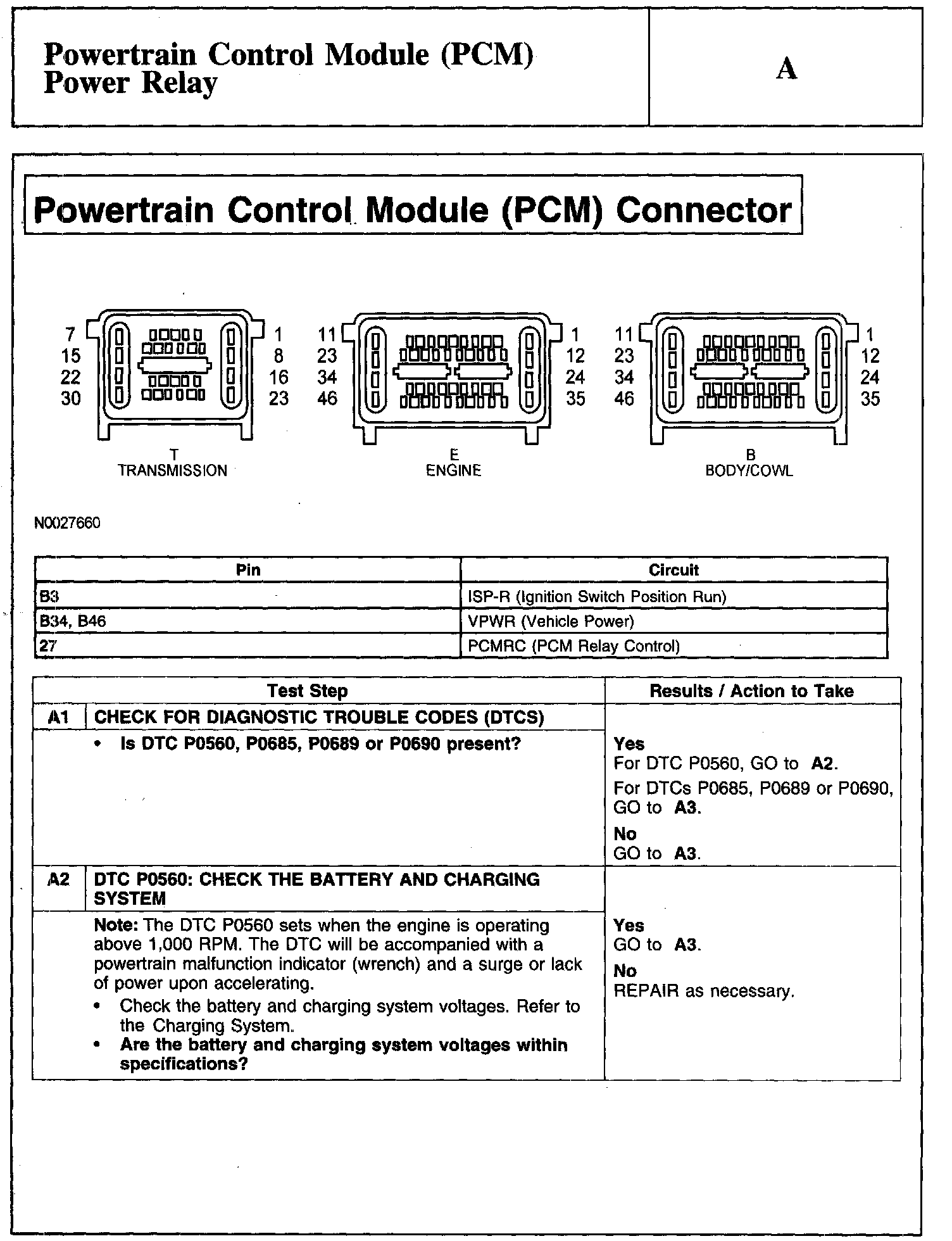

A1-A2:

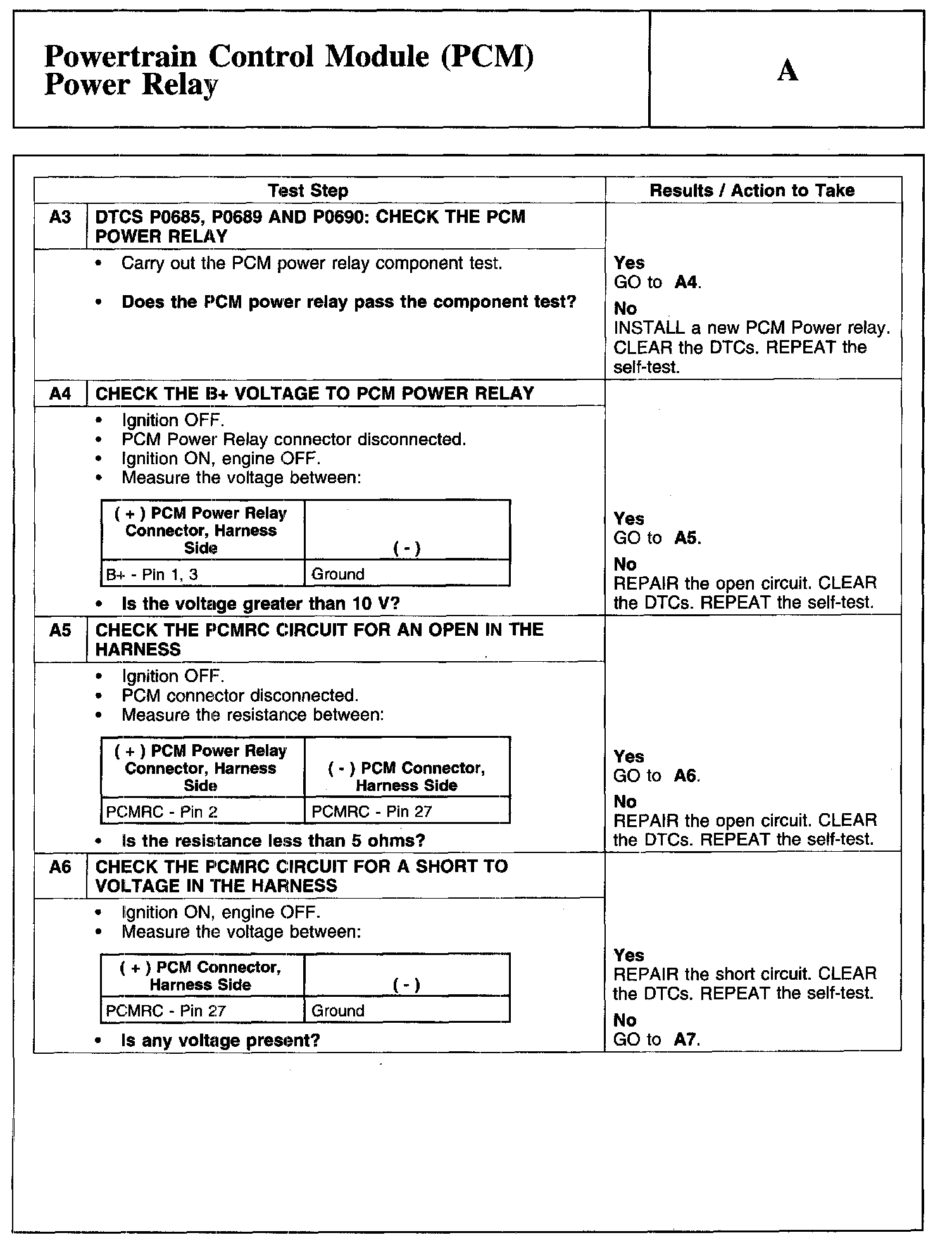

A3-A6:

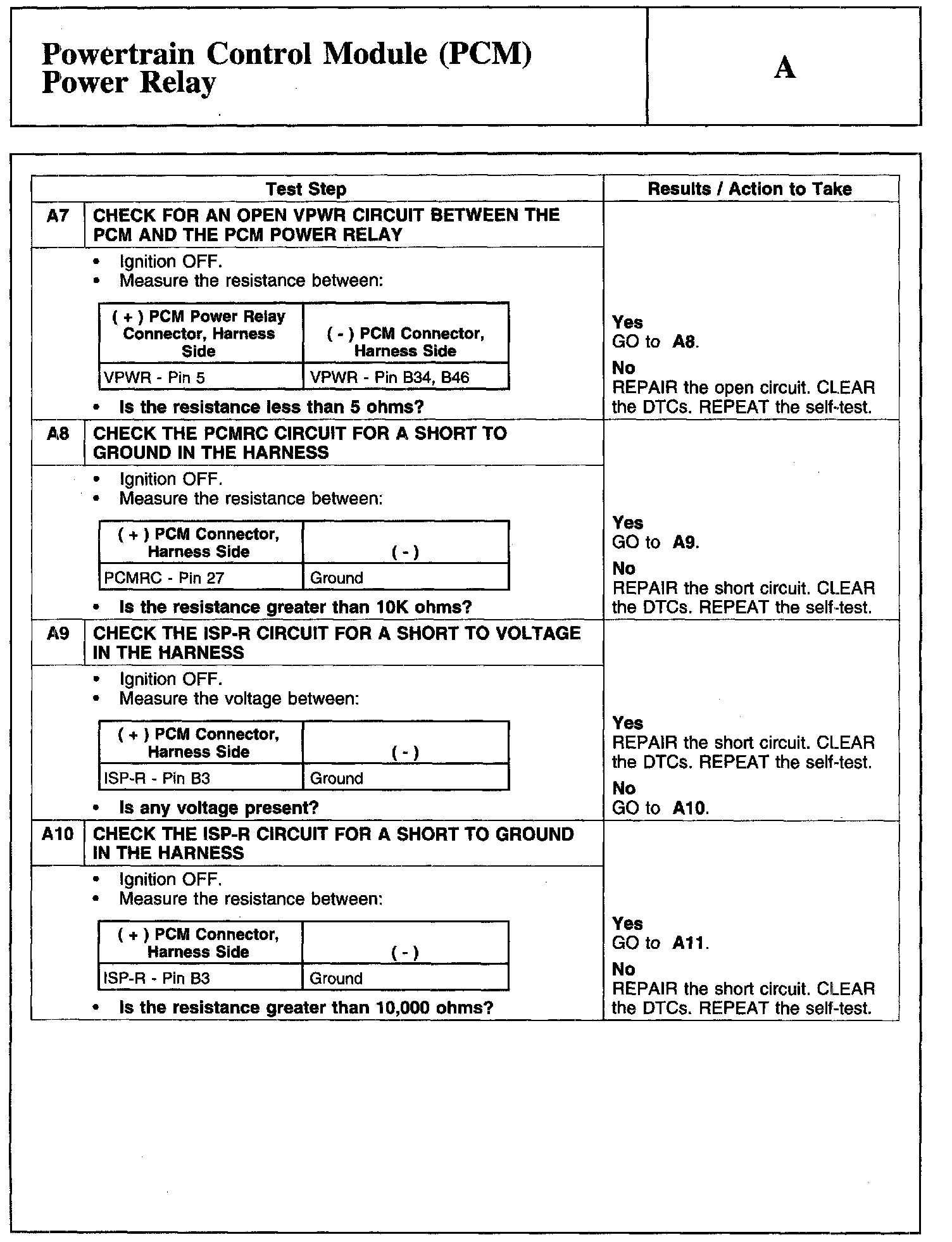

A7-A10:

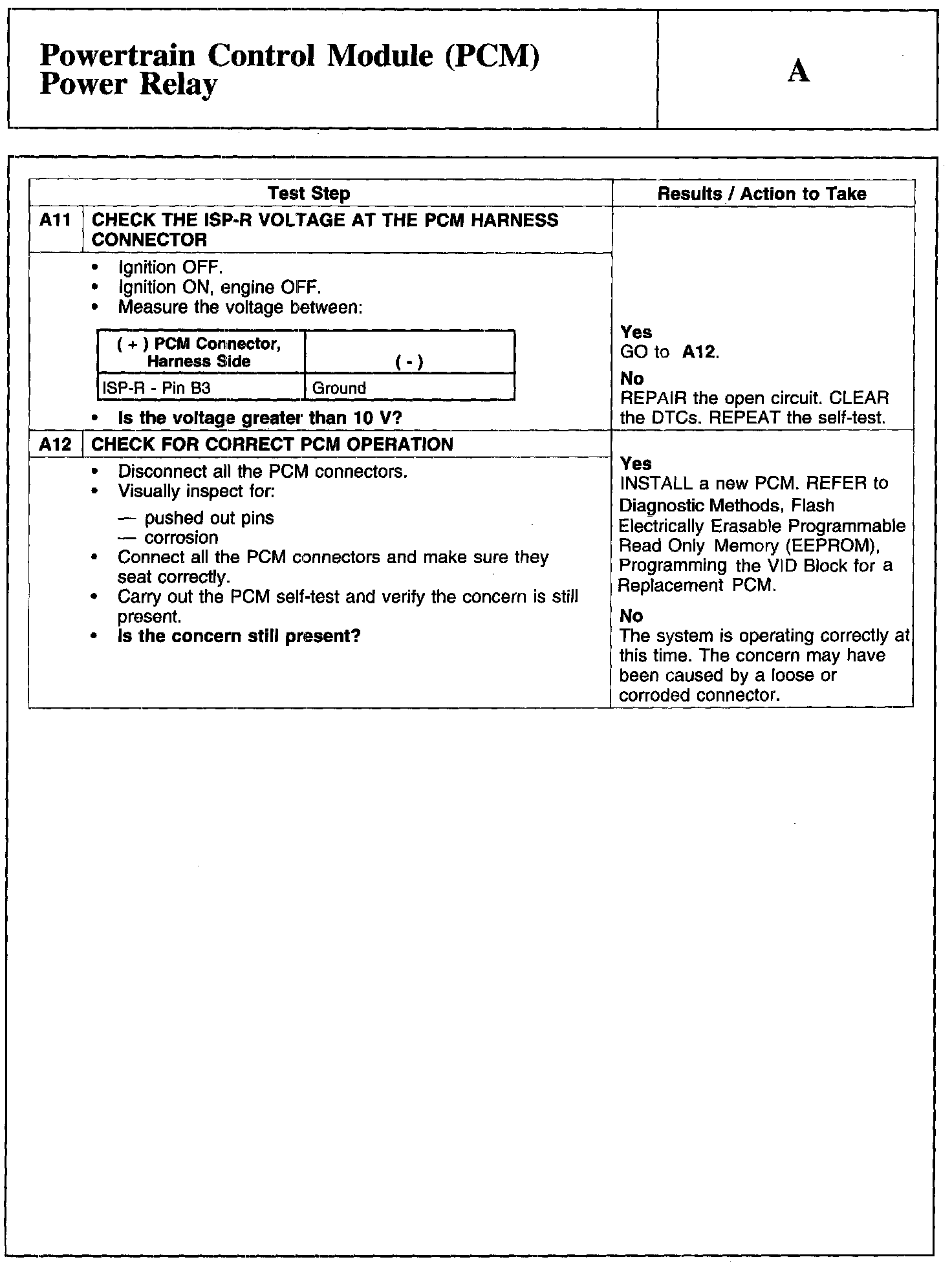

A11-A12:
