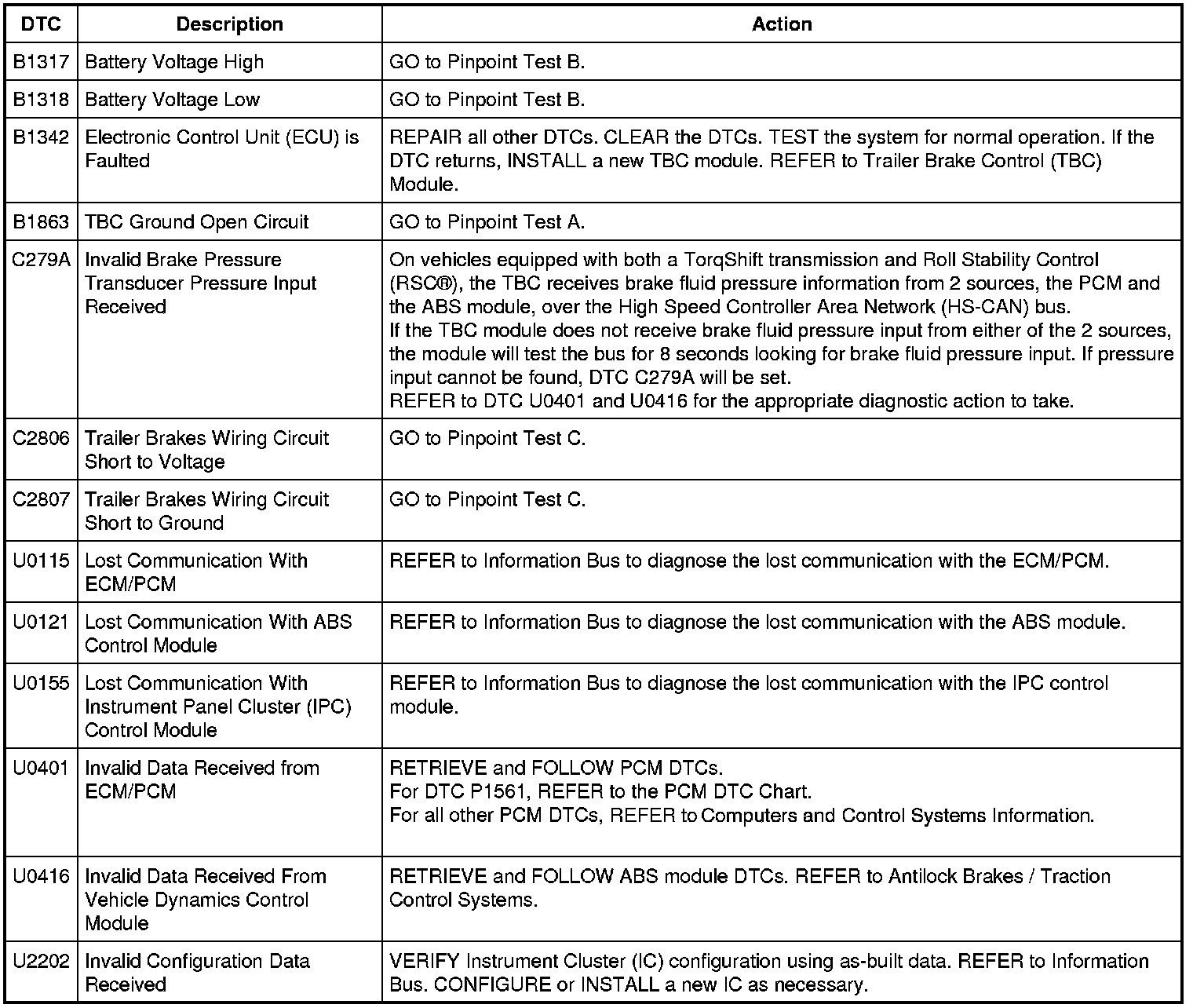

Trailer Brake Control (TBC) Module DTC Chart
Auxiliary Brake System - Trailer Brake Control (TBC) Module
DTC Charts
Trailer Brake Control (TBC) Module DTC Chart
