Exploded View Images
Main Control Valve Body
Disassembly

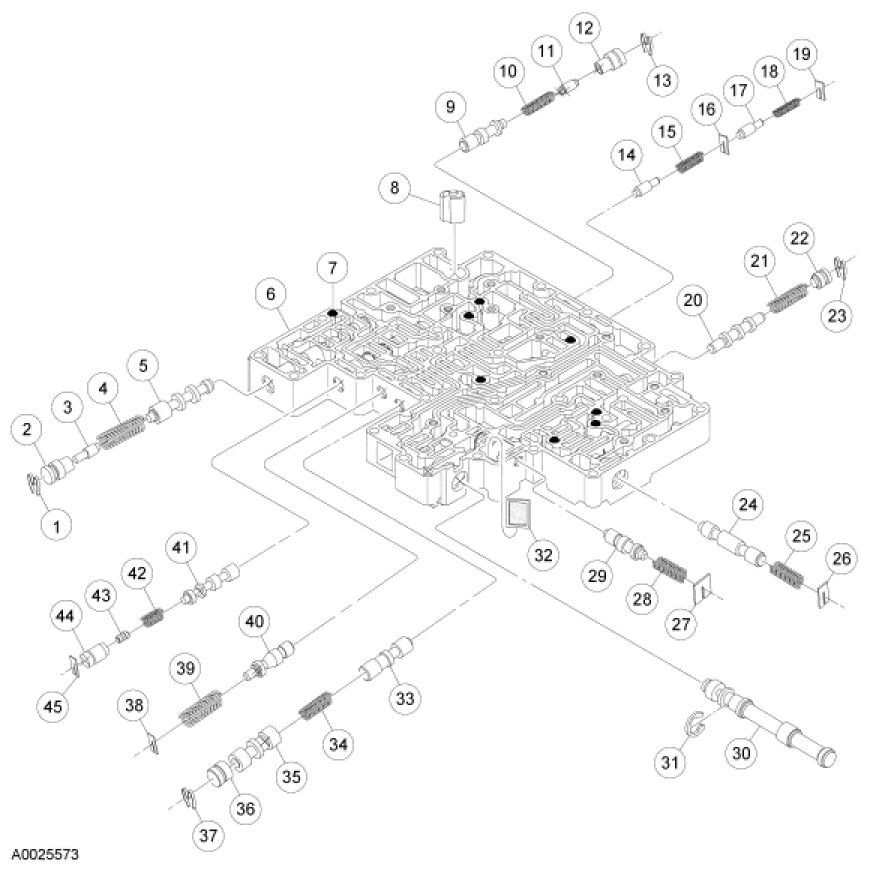

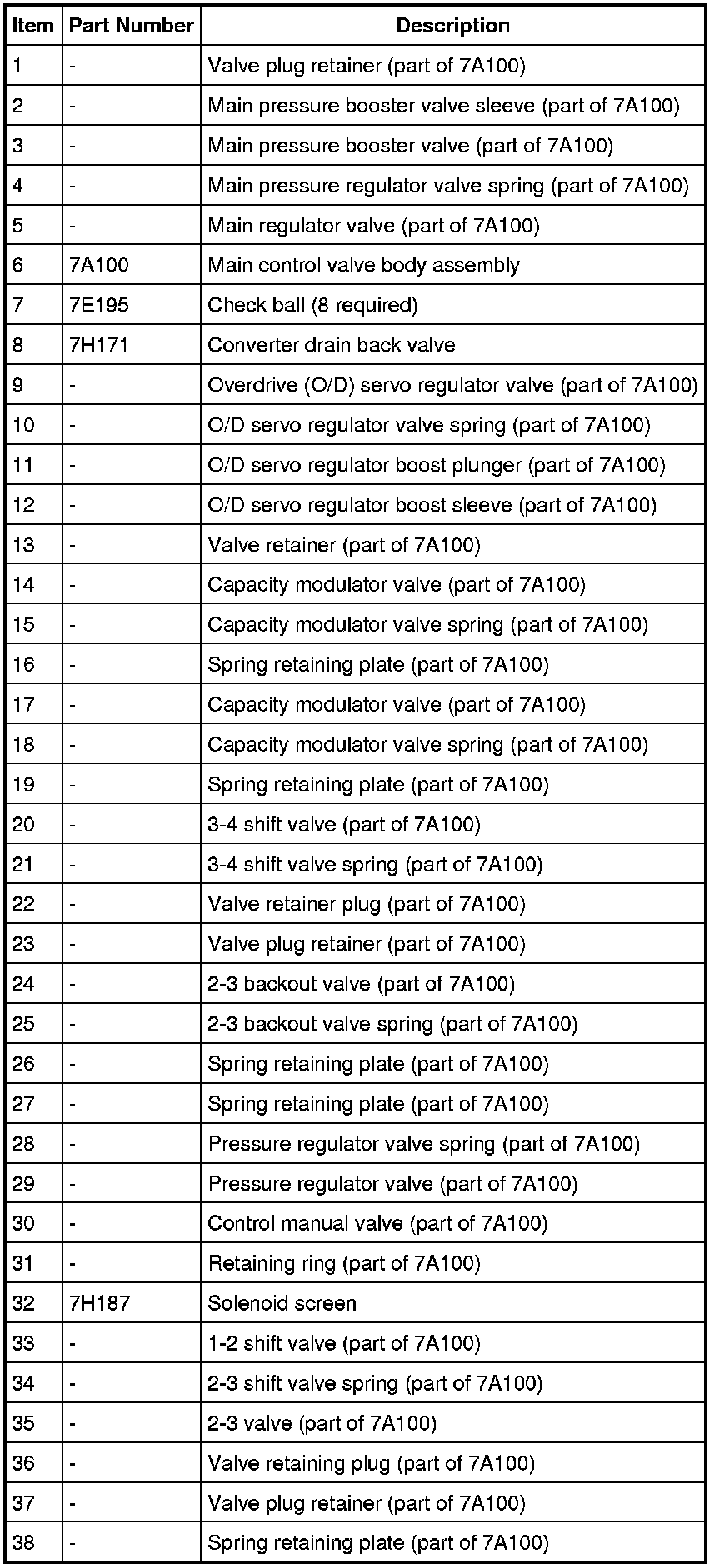

Main Control Valve Body - Disassembled View
