Intake Manifold

Intake Manifold

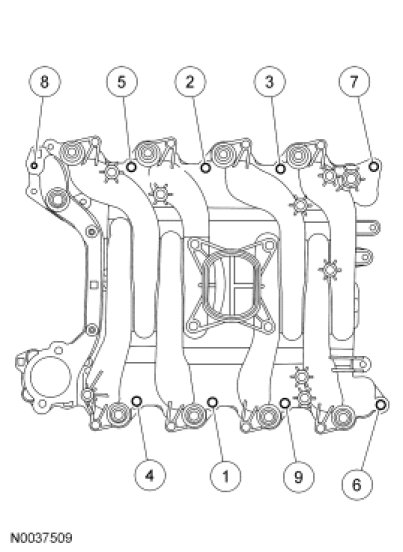

Tighten the bolts in the sequence shown.
Tighten to 25 Nm (18 lb-ft).
