Connector Locations

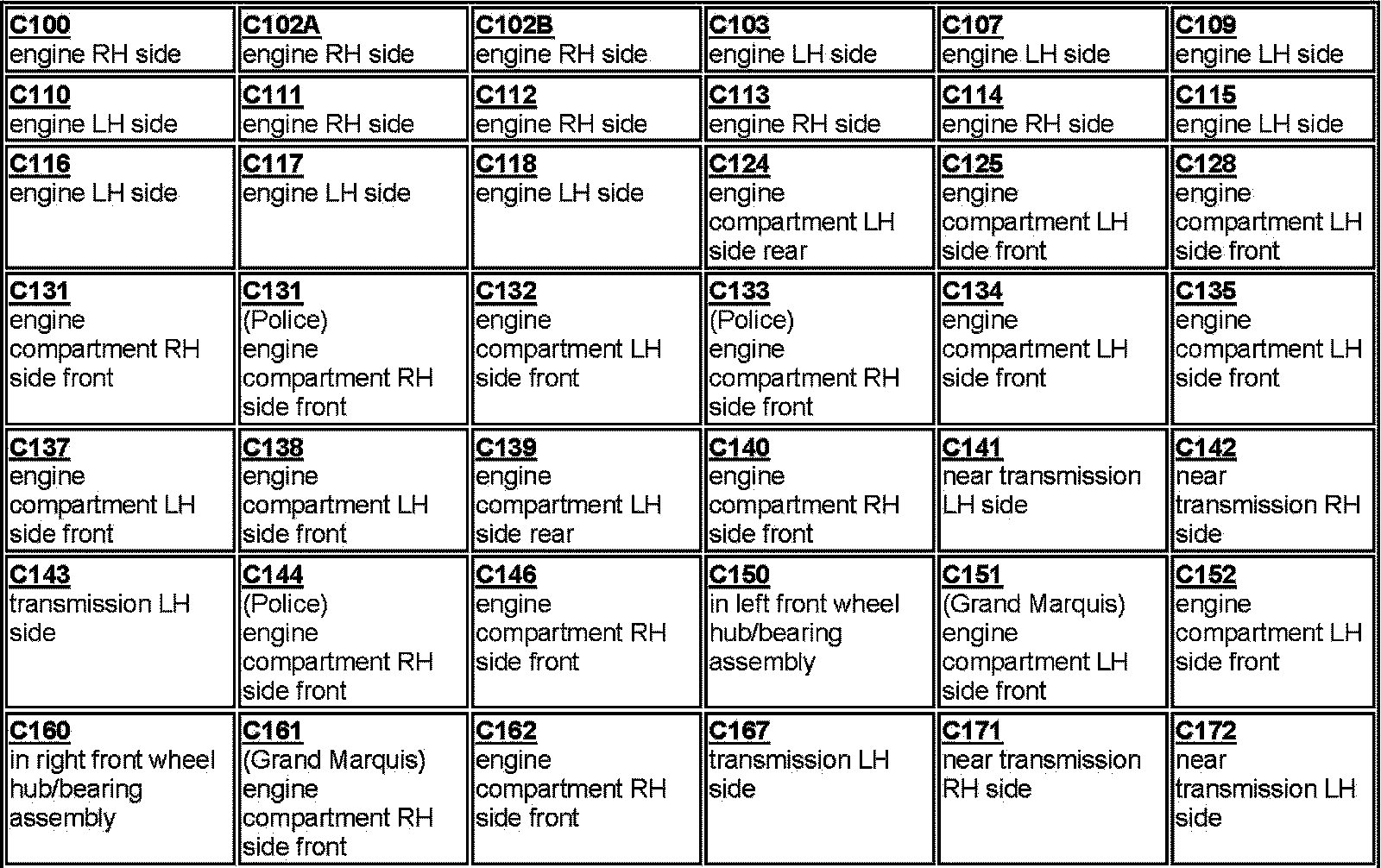

C100-C172:

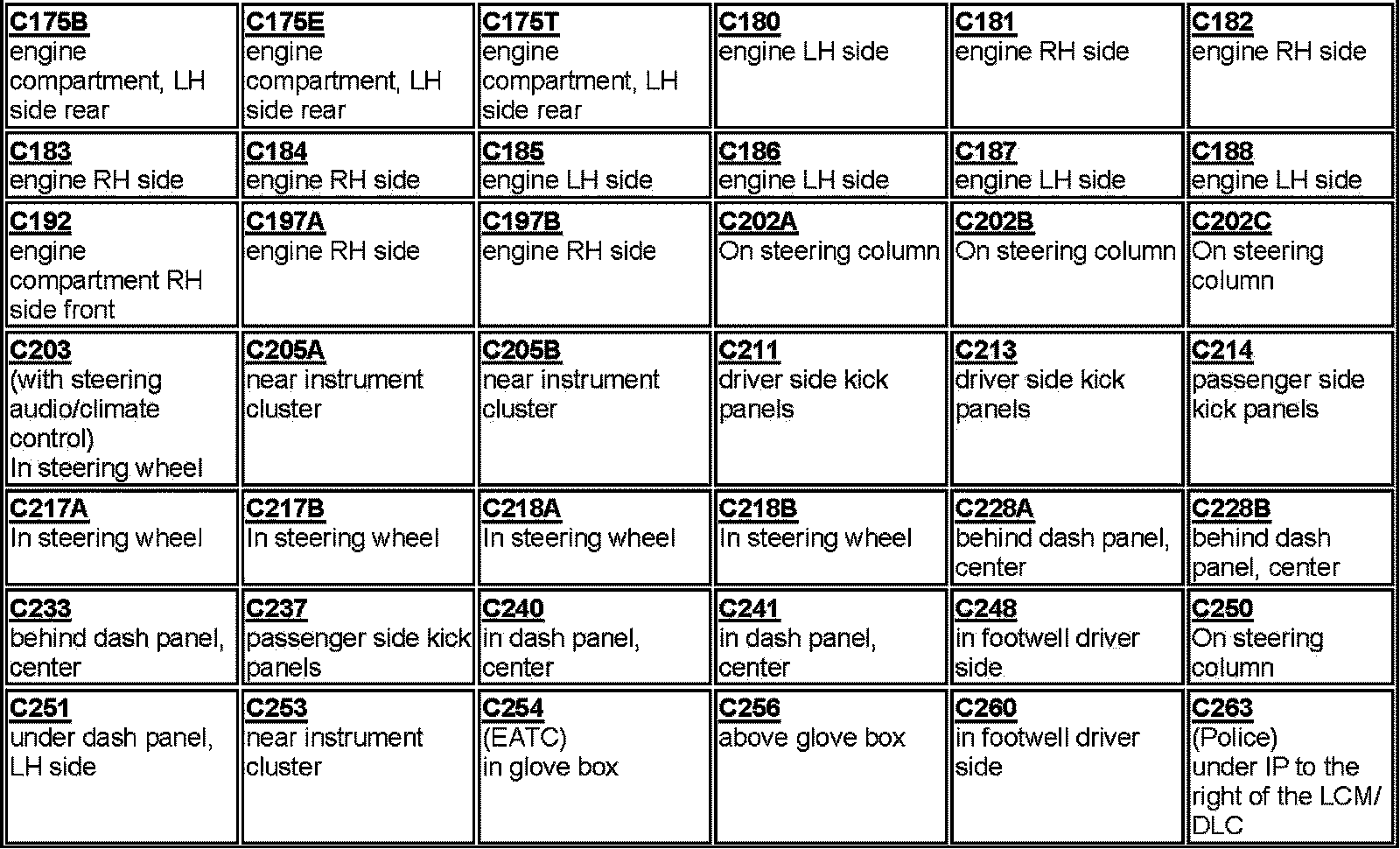

C175B-C263:

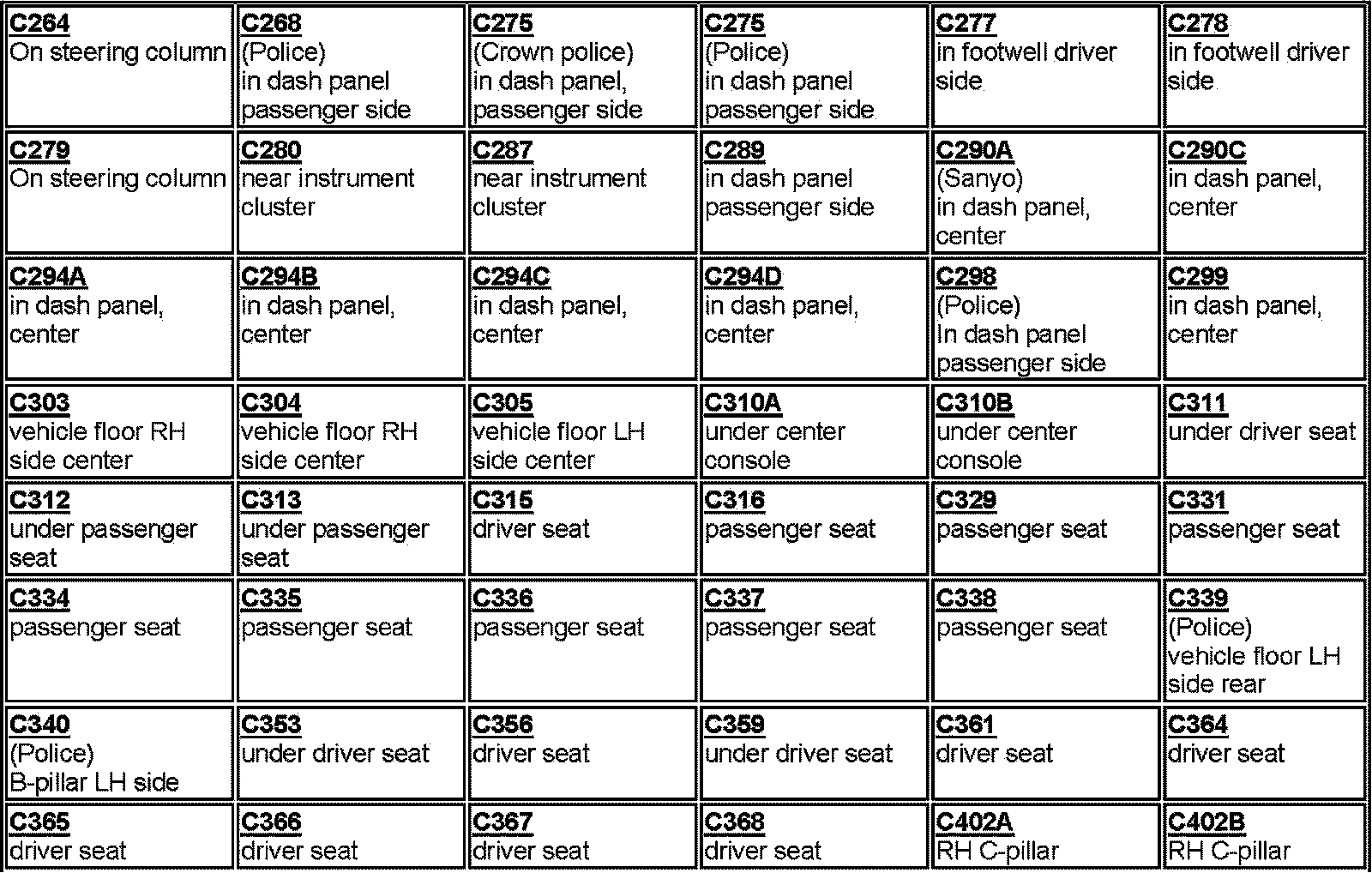

C264-C402B:

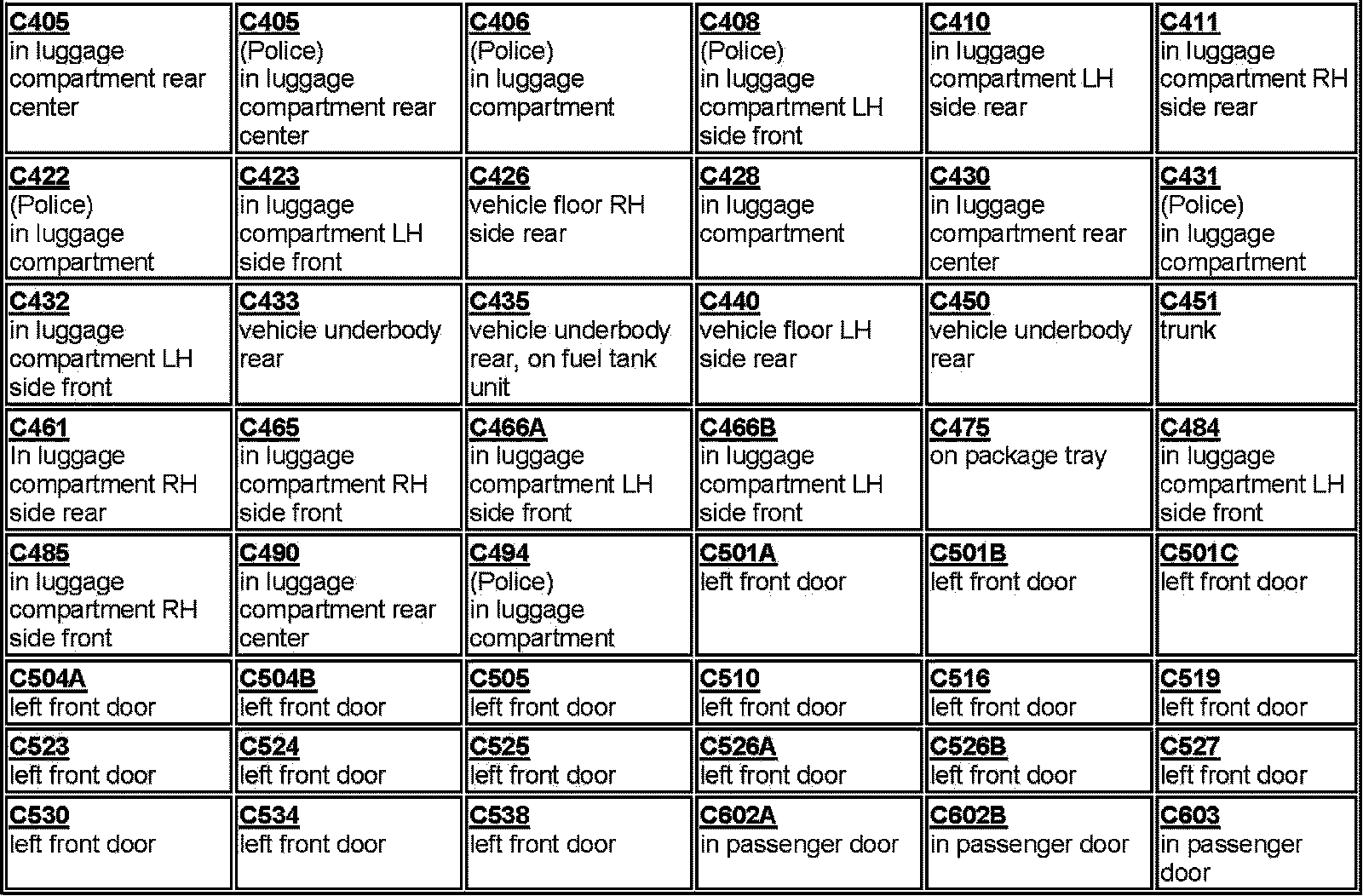

C405-C603:

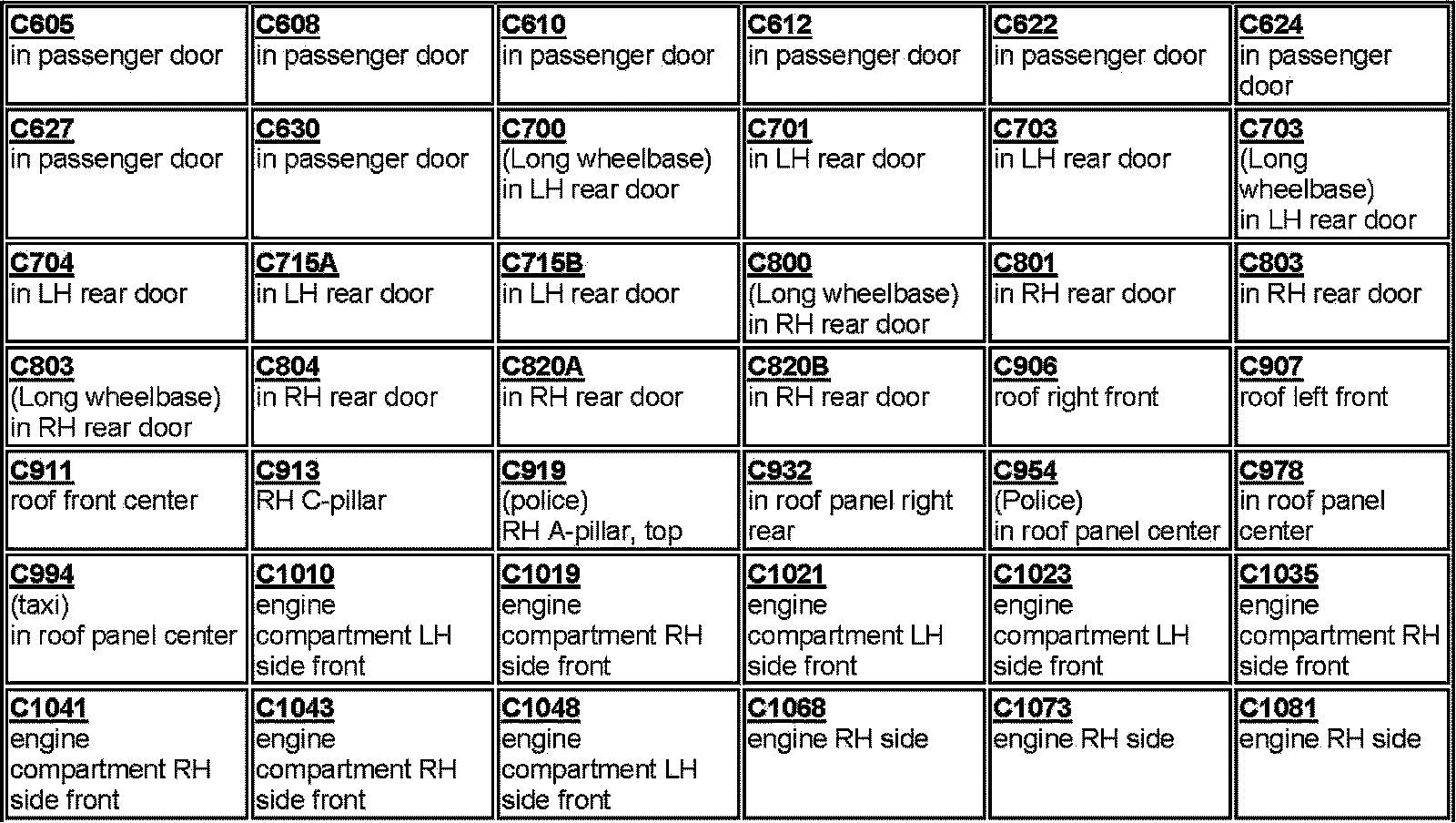

C605-C1081:

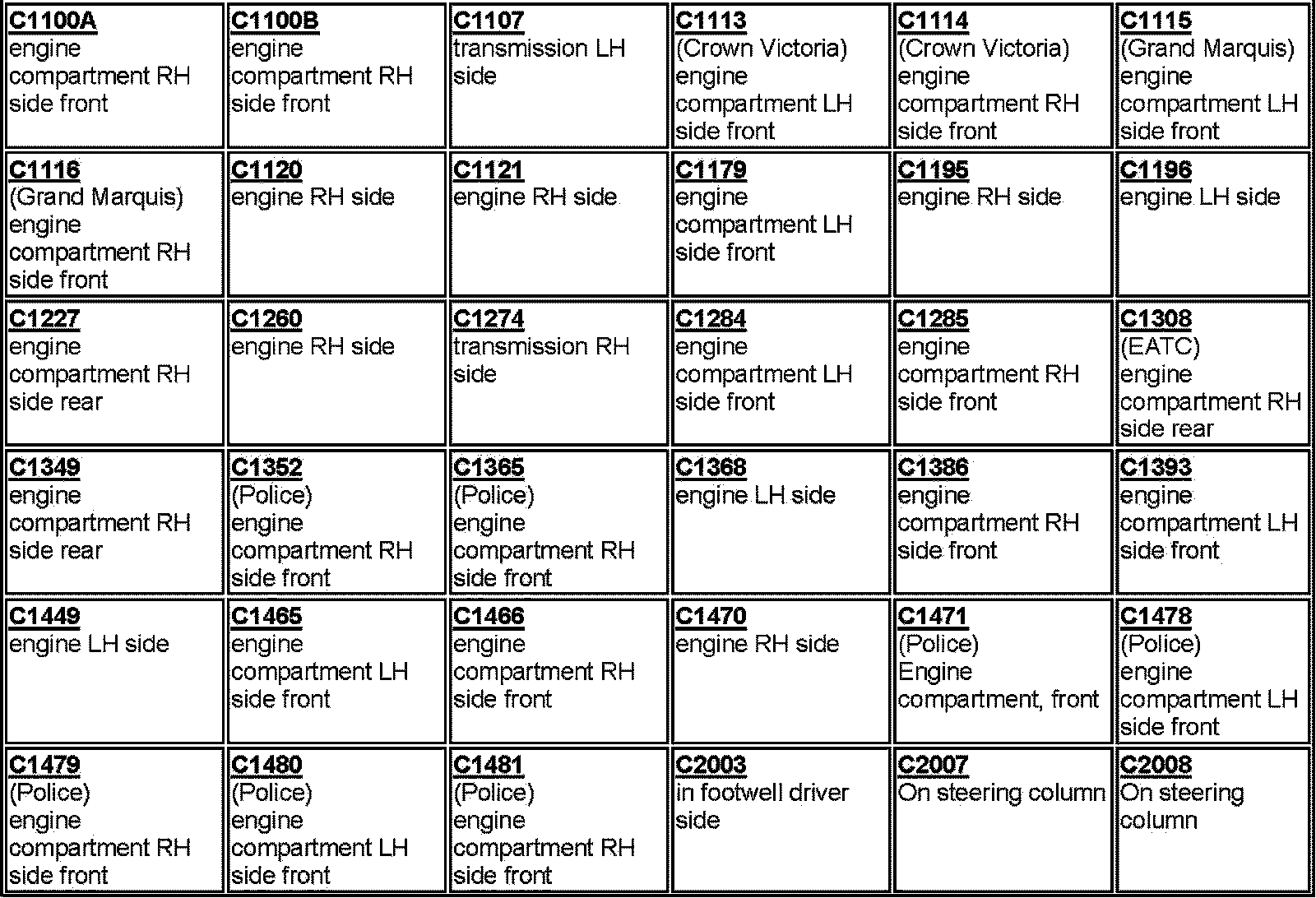

C1100A-C2008:

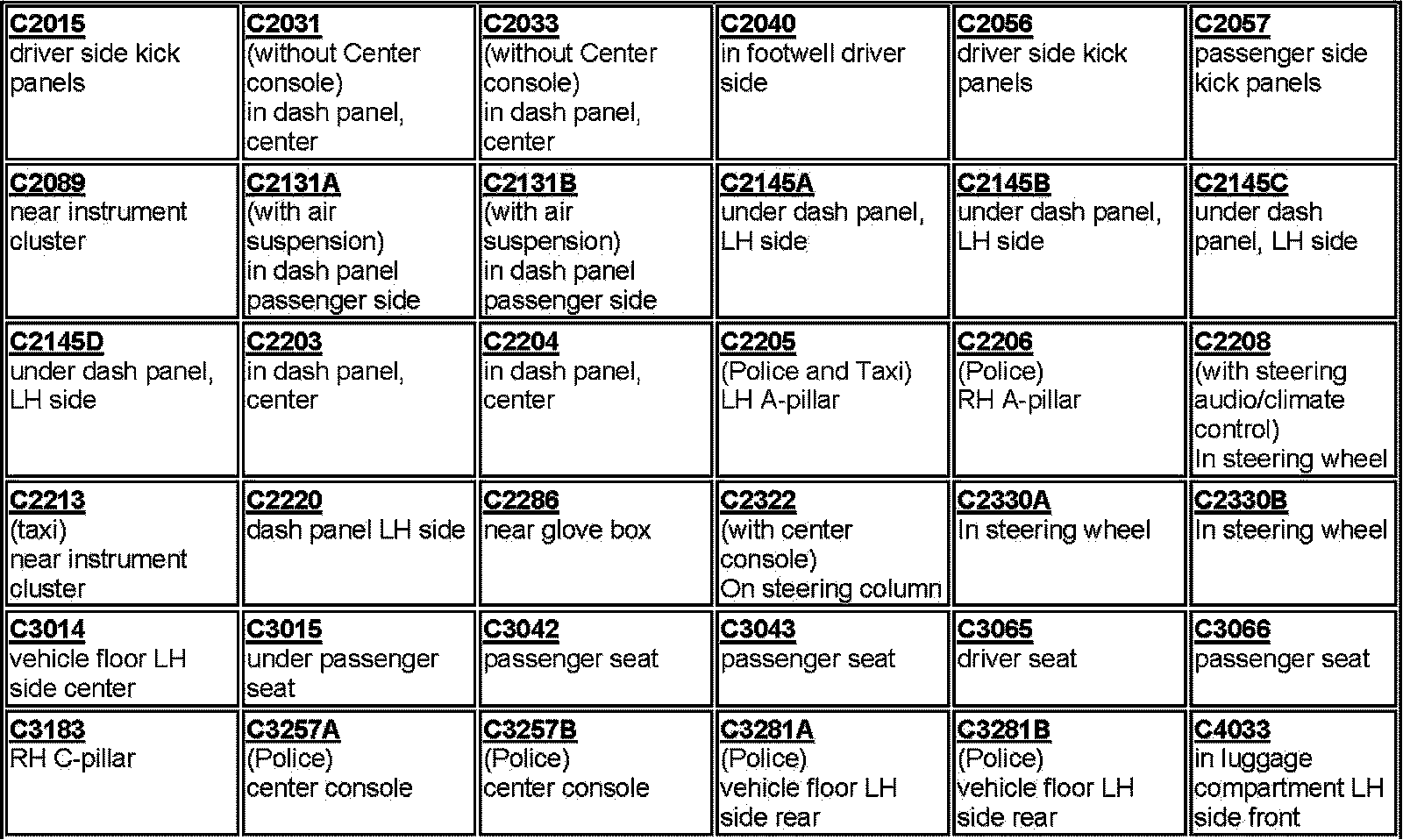

C2015-C4033:

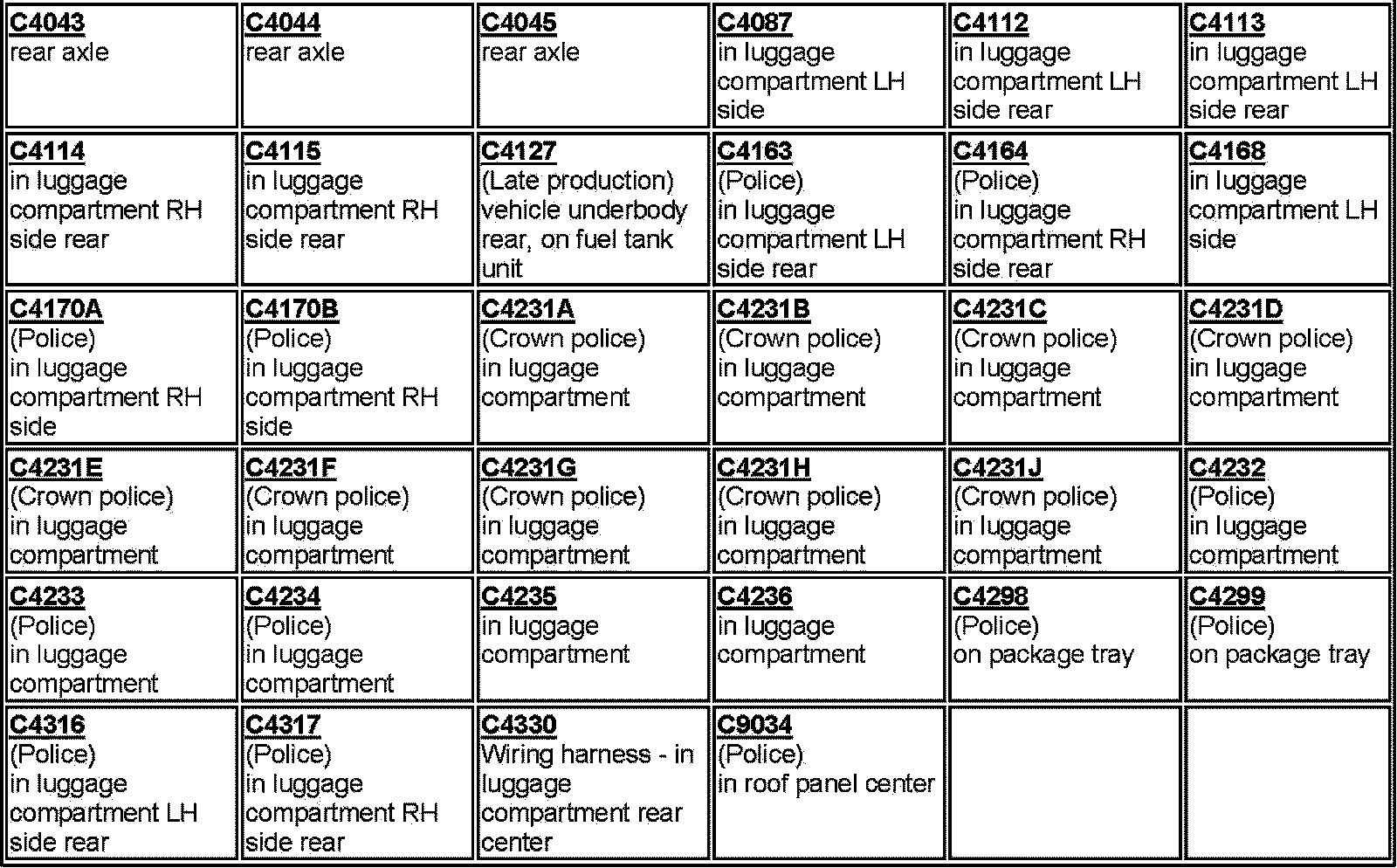

C4043-C9034:
