Stability/Traction Control Switch: Notes

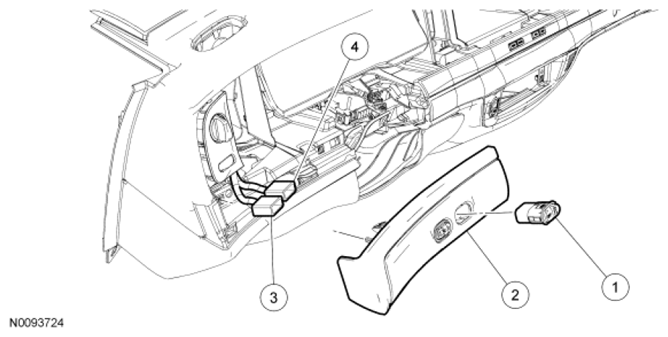

Fig 1: Identifying Stability/Traction Control Switch Components
G06563951Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 2C335 Stability/traction control switch
2 54046A63 LH instrument panel finish panel
3 - Adjustable pedal electrical connector (part of 14401)
4 - Stability/traction control switch electrical connector (part of 14401)
