Communications Network
Communications Network

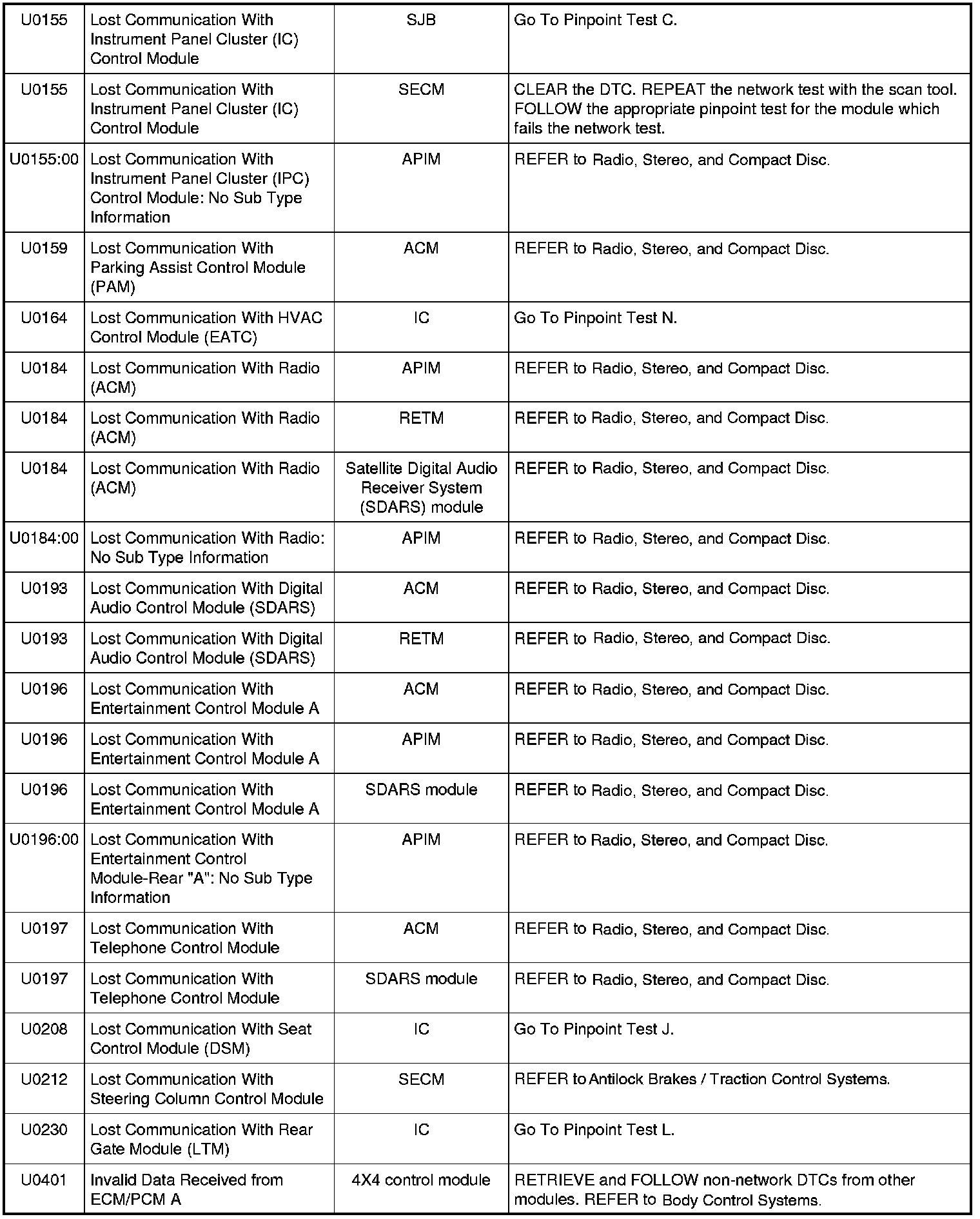

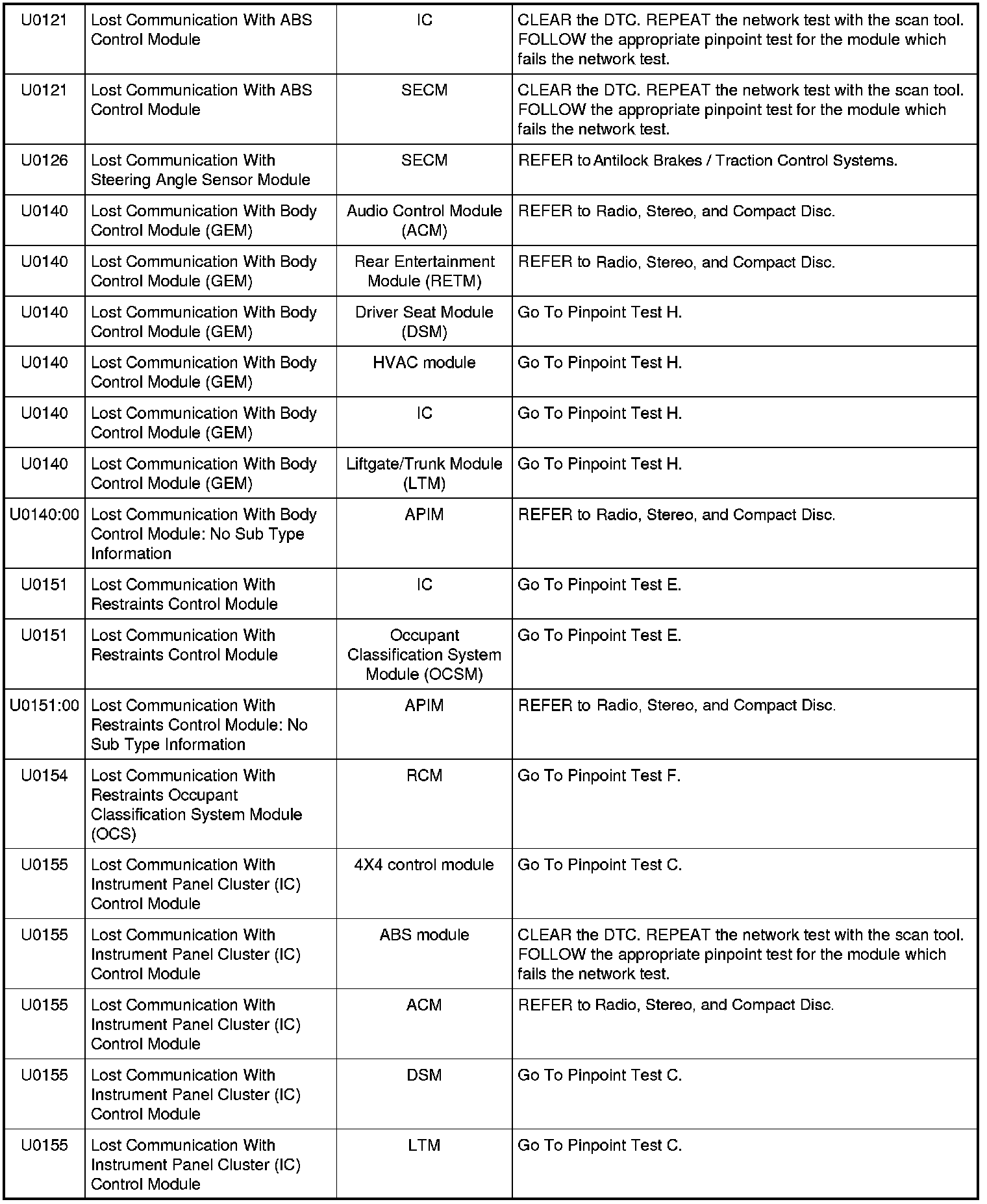

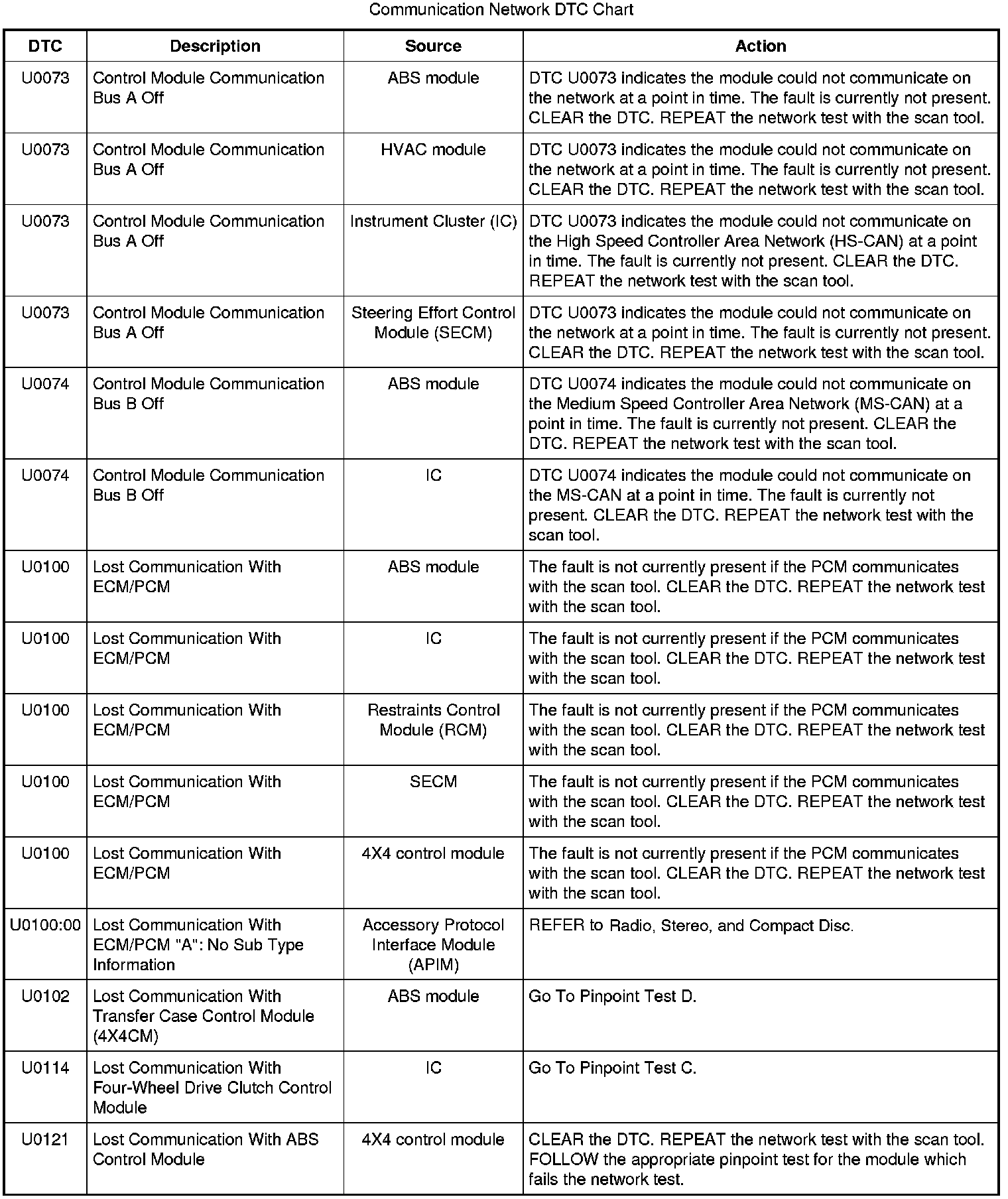

DTC Charts
U0073-U0121:
U0121-U0155:
U0155-U0401:
U261A-U3000:88:
