Fog/Driving Lamp: Service and Repair

Fog Lamp

Taurus










Sable










Taurus X









Removal and Installation

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the fog lamp electrical connector.

Taurus

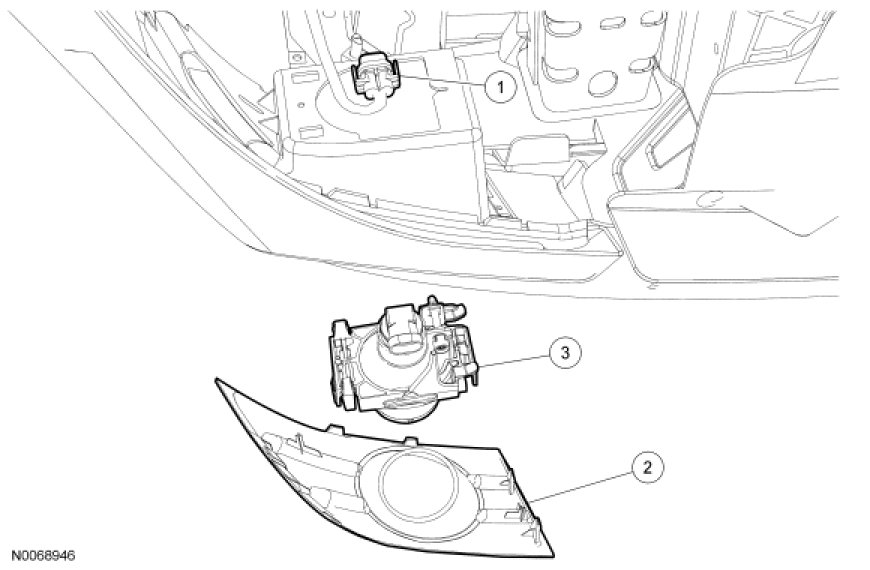

3. Release the tabs and remove the fog lamp bezel.

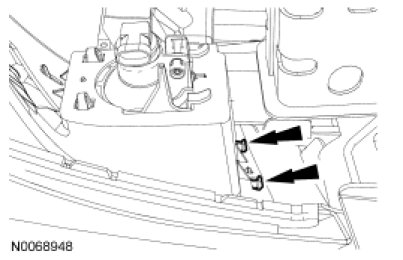

4. Release the 2 tabs and remove the fog lamp.





Sable

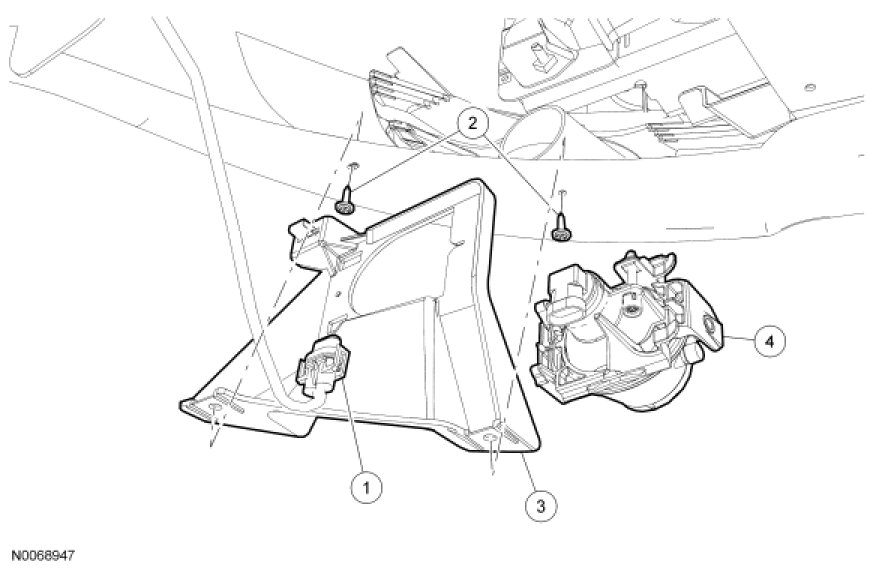

5. Remove the 2 screws and the fog lamp bracket assembly.

6. NOTE: Taurus shown, Sable similar.

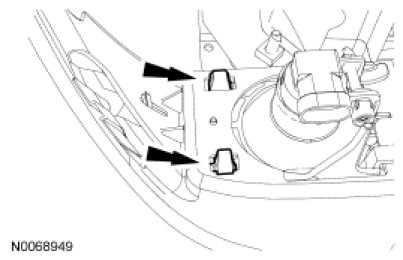

Release the 2 tabs and remove the fog lamp.





Taurus X

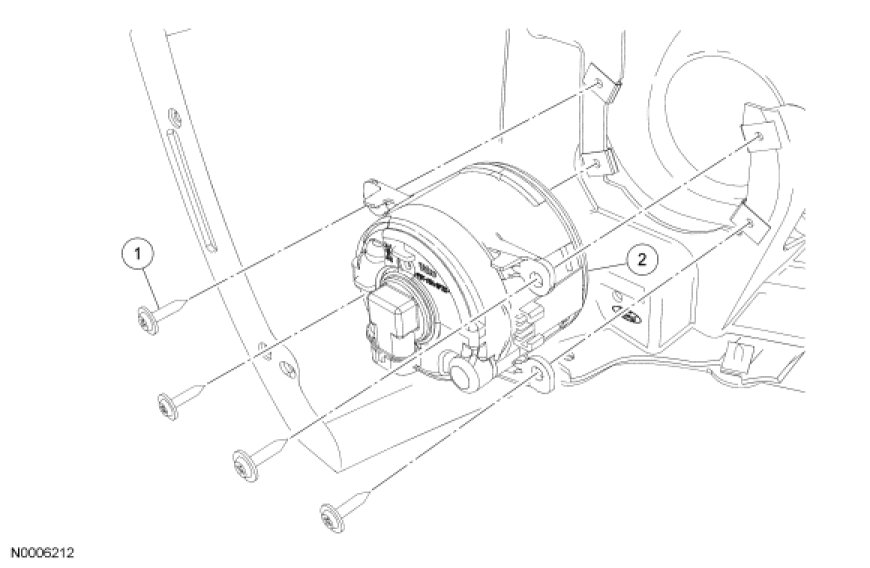

7. Remove the 4 screws and the fog lamp.

All vehicles

8. To install, reverse the removal procedure.
