Home >> Ford >> 2009 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Side Impact Sensor, Passenger 1

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

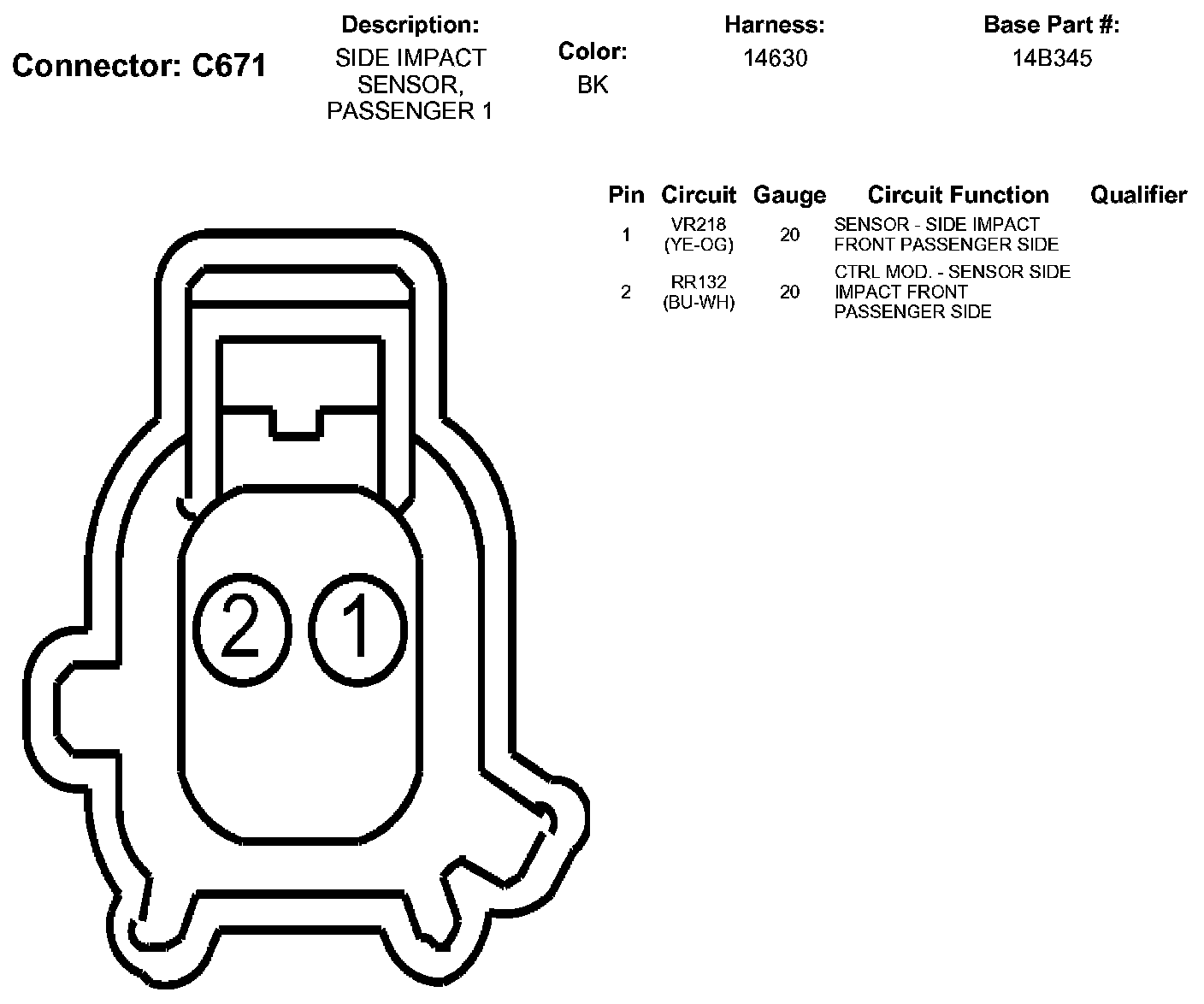

Side Impact Sensor, Passenger 1
