Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

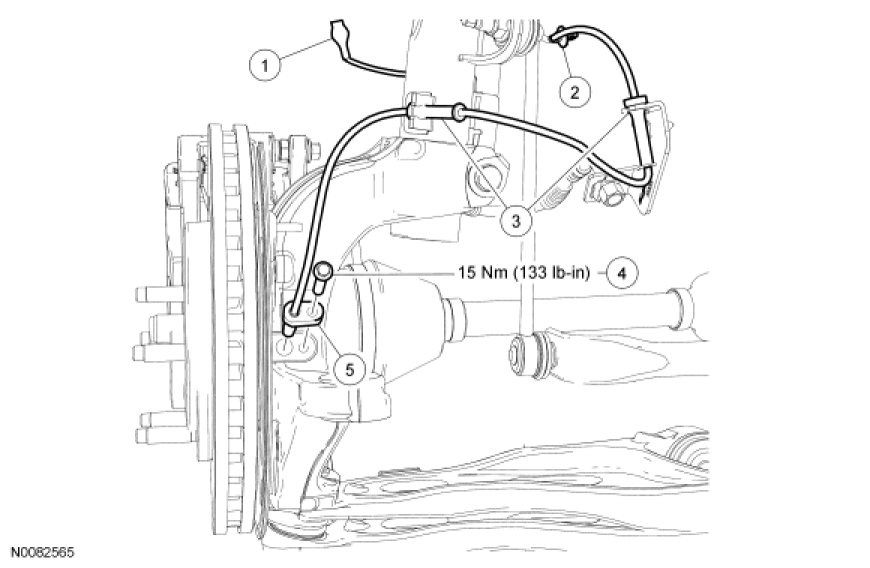

Removal and Installation

1. Remove the wheel and tire.

2. Disconnect the wheel speed sensor electrical connector.

3. Remove the 2 scrivets and position aside the fender splash shield.

4. Remove the wheel speed sensor harness pin-type retainer.

5. Remove the 2 wheel speed sensor harness retainers.

6. Remove the bolt and the wheel speed sensor.
- To install, tighten to 15 Nm (133 lb-in).

7. To install, reverse the removal procedure.
