Audio Control Module (ACM) DTC Chart




Information and Entertainment System

DTC Charts

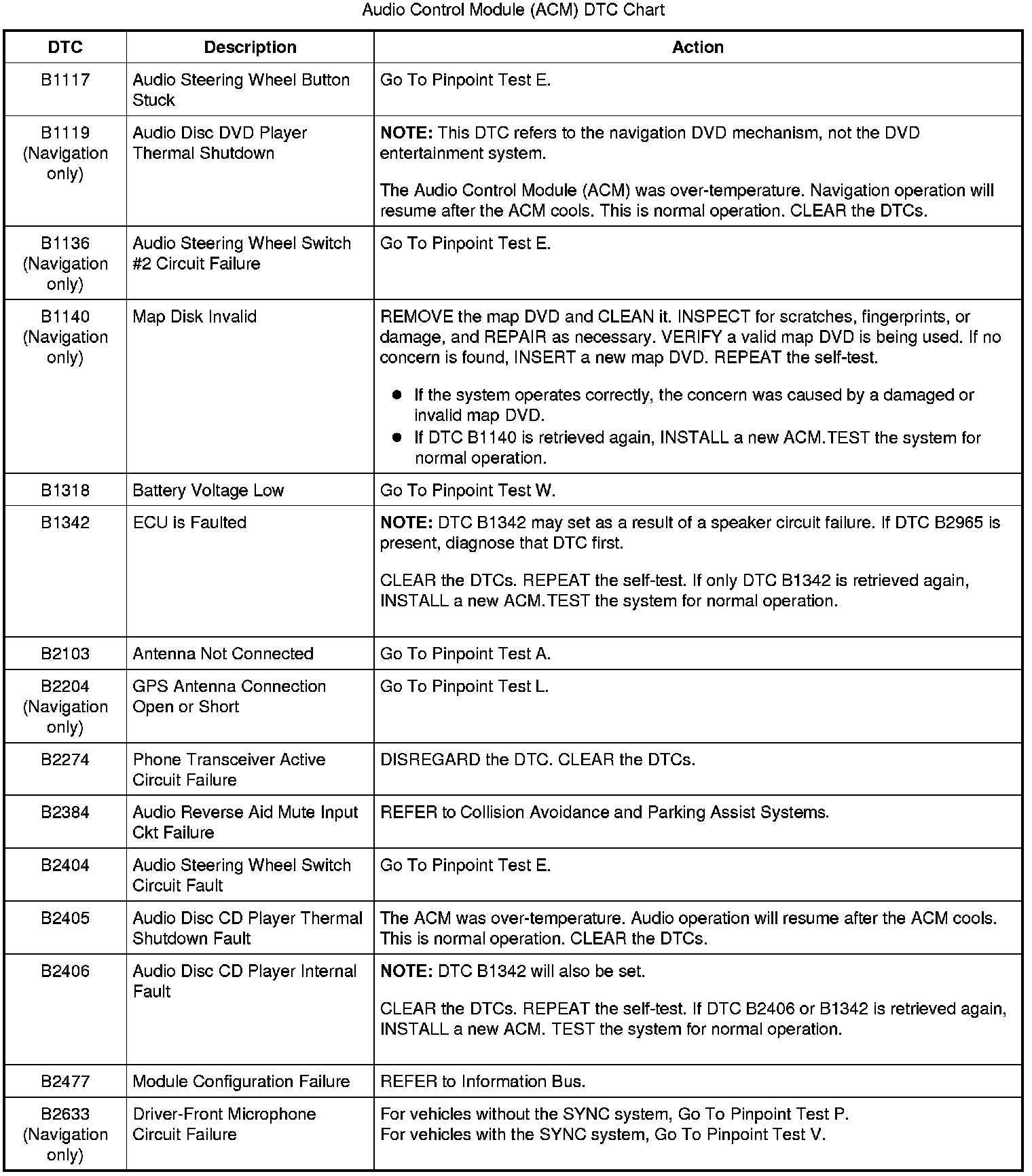

B1117-B2633:

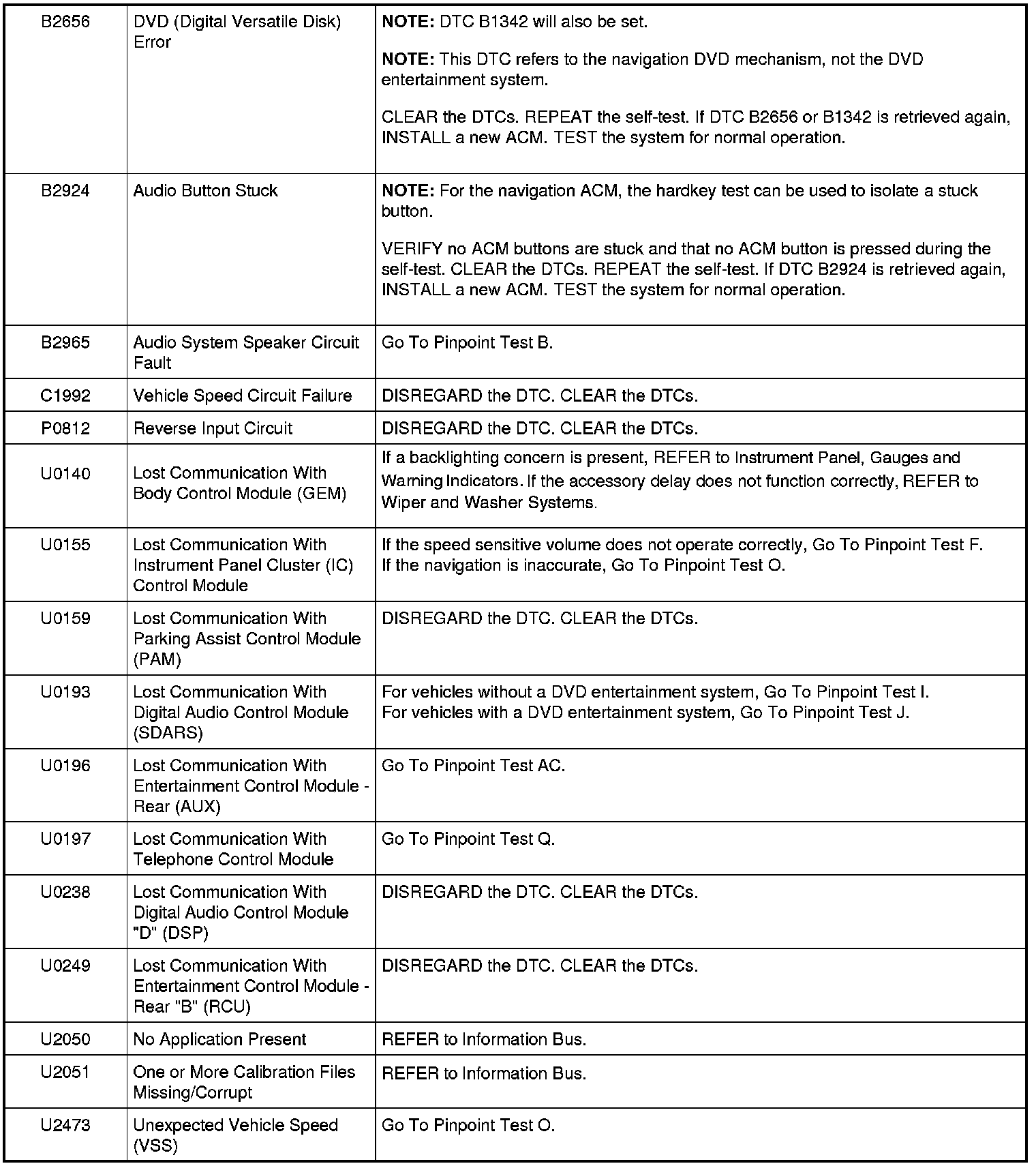

B2656-B2965 / C1992 / P0812 / U0140-U2473:
