Home >> Ford >> 2009 >> Ranger 2WD L4-2.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C238

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

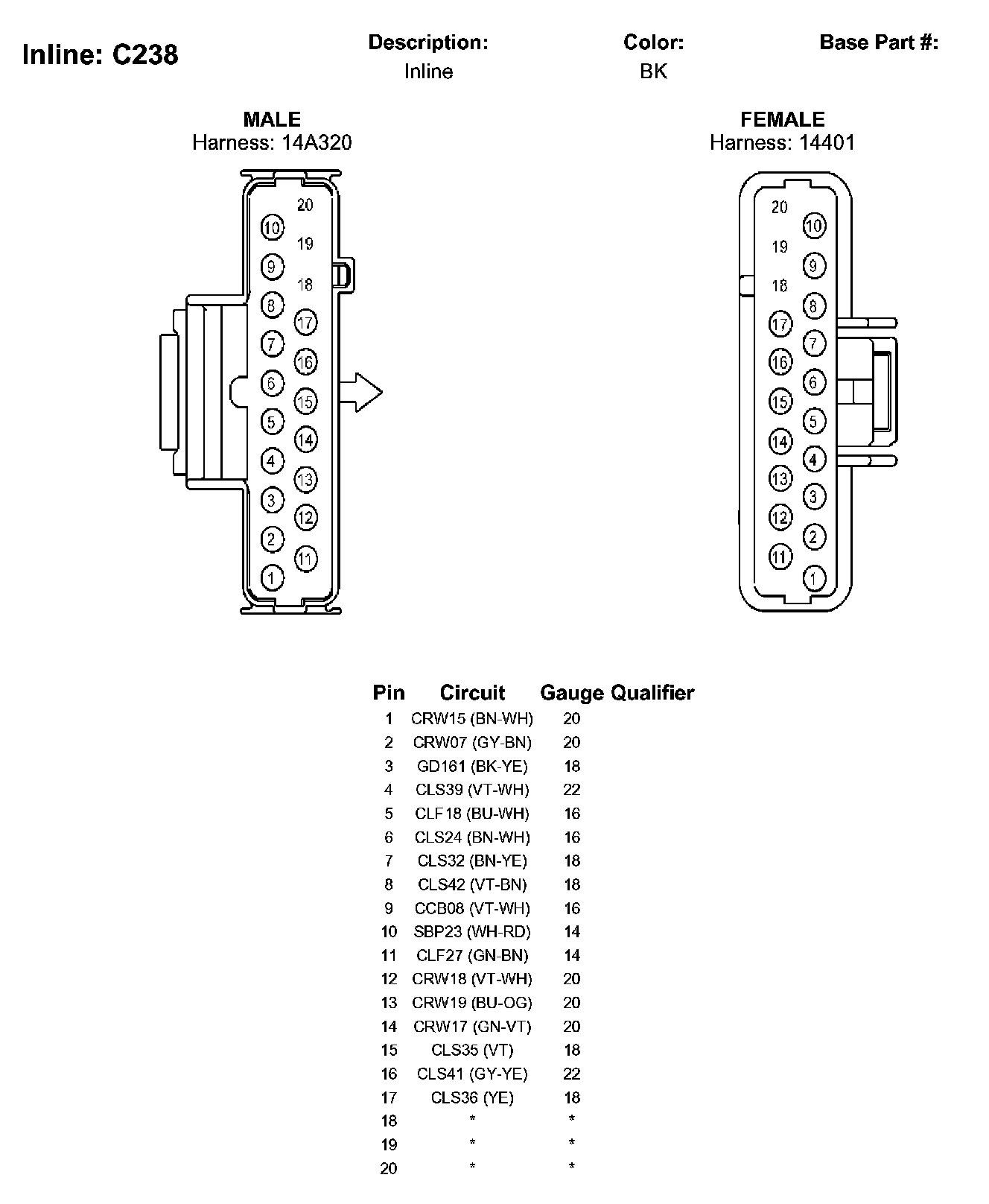

C238
