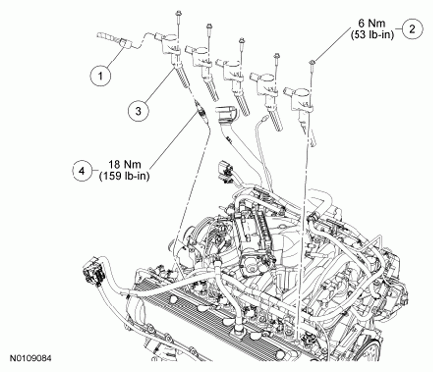

Engine Ignition Components - Exploded View
NOTE:
LH shown in illustration, RH similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH ignition coil electrical connector (part of 12C503) (5 required) |
| 2 | W711062 | LH ignition coil retaining bolt (5 required) |
| 3 | 12A366 | LH ignition coil (5 required) |
| 4 | 12405 | LH spark plug (5 required) |
- For additional information, refer to the appropriate procedures.
