Blower Motor Resistor: Service and Repair

Blower Motor Resistor









Removal and Installation

NOTE: The blower motor resistor can be accessed from below the RH side of the instrument panel.

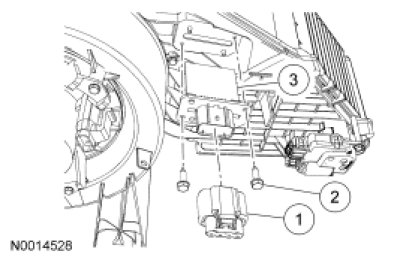

1. Disconnect the blower motor resistor electrical connector.

2. Remove the 2 blower motor resistor screws.

3. Remove the blower motor resistor.

4. To install, reverse the removal procedure.
