Air Register: Service and Repair




Register - Instrument Panel









Removal and Installation

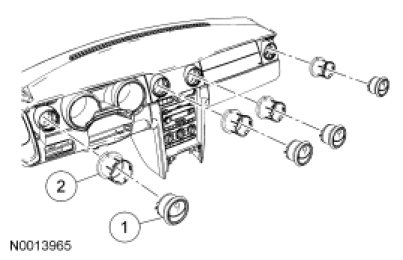

1. Pull and remove the instrument panel register barrel.

2. Release the tabs and remove the instrument panel register housing.

3. To install, reverse the removal procedure.
