Traction Control Switch: Service and Repair




Traction Control Switch









Removal and Installation

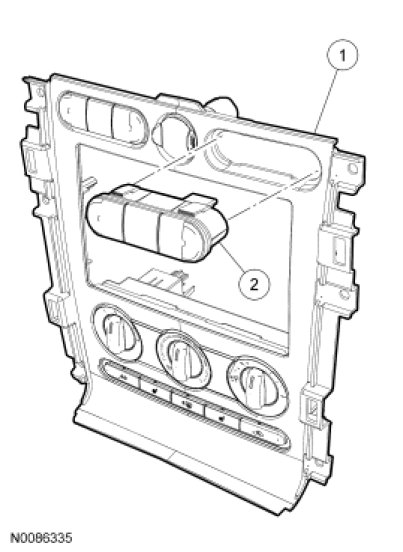

1. Remove the instrument panel center finish panel.

2. Press the retaining tabs and remove the switchblock.





3. To install, reverse the removal procedure.
