ABS Module DTC Chart




Anti-Lock Control

DTC Charts

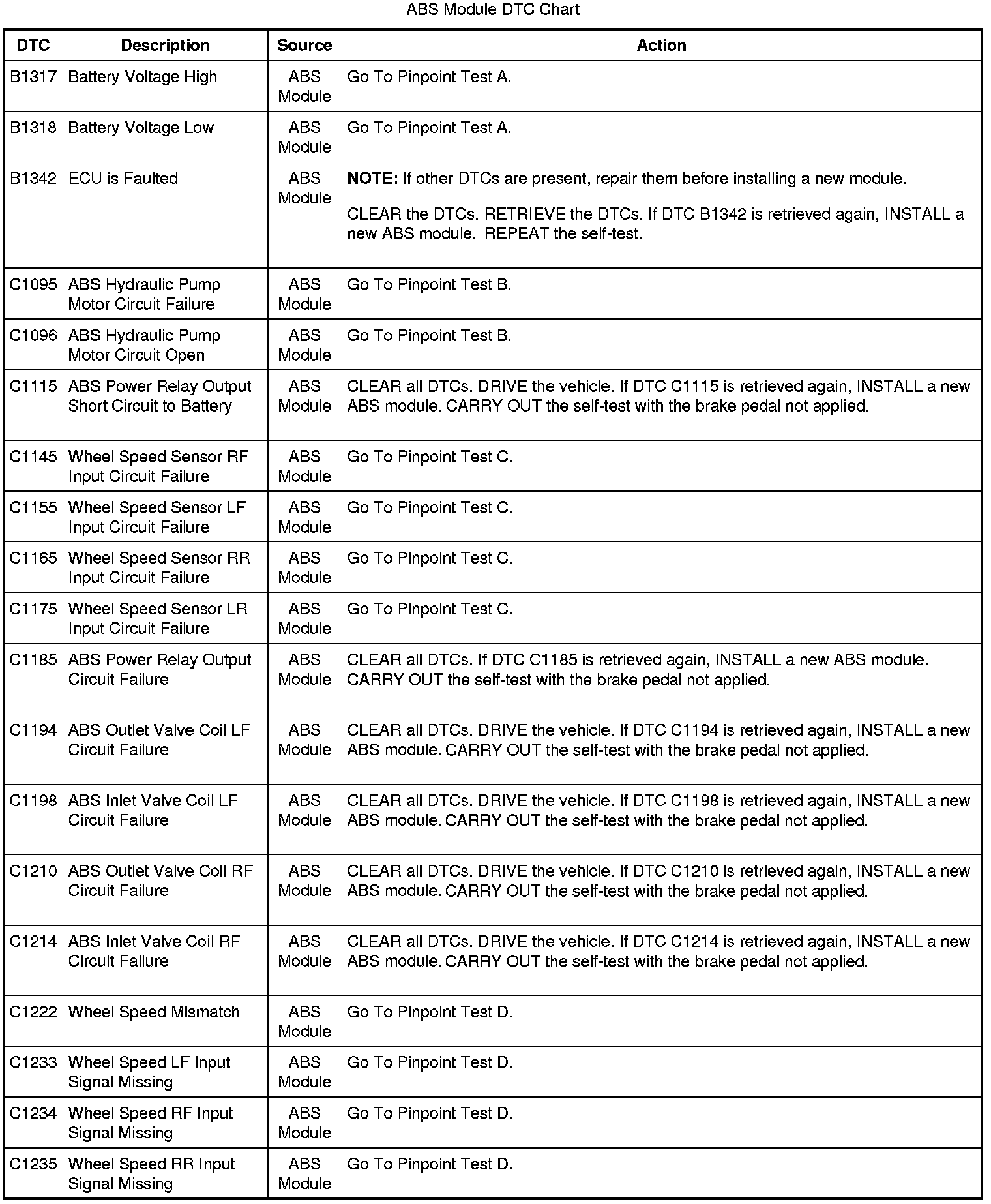

B1317-B1342 / C1095-C1235:

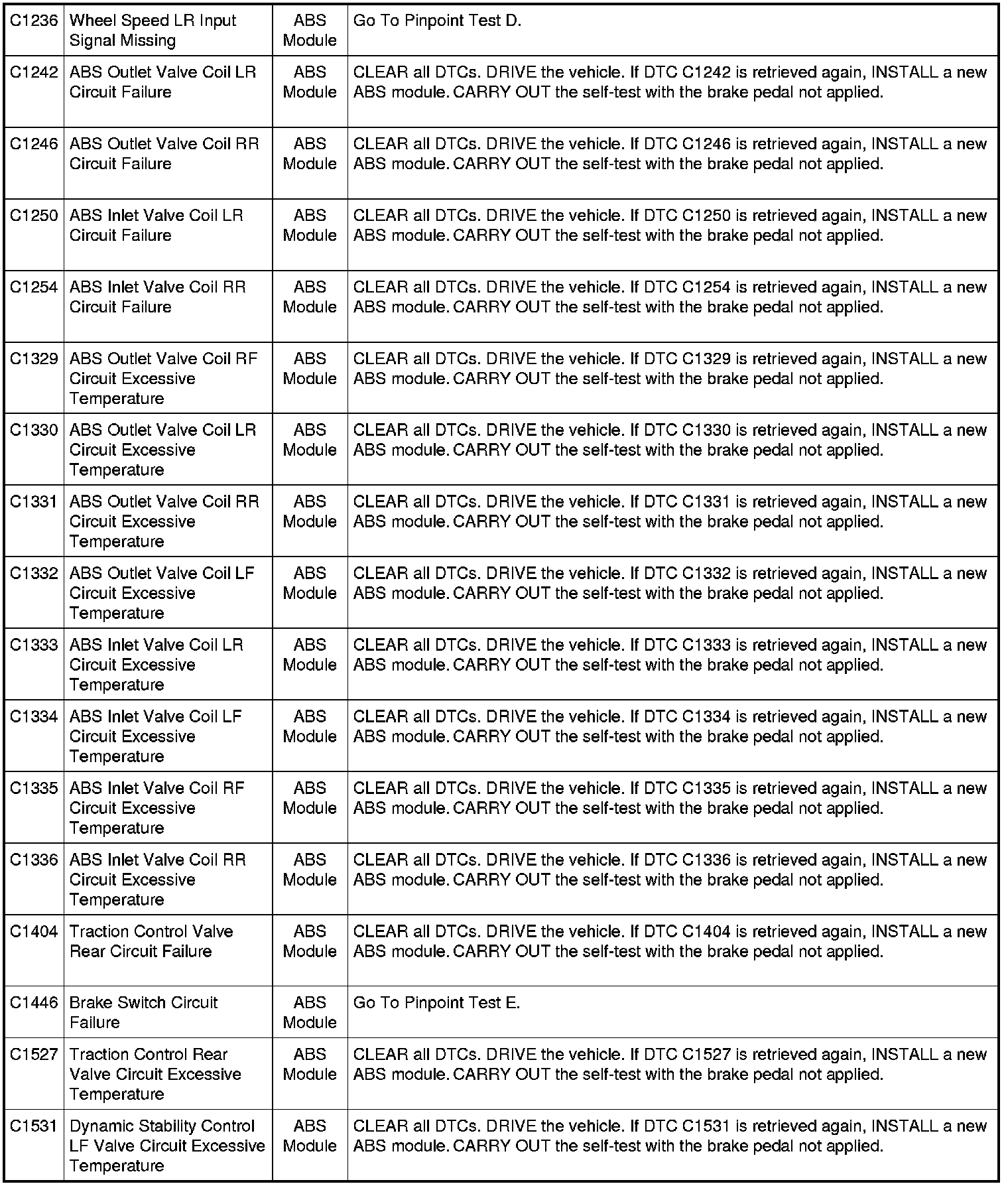

C1236-C1531:

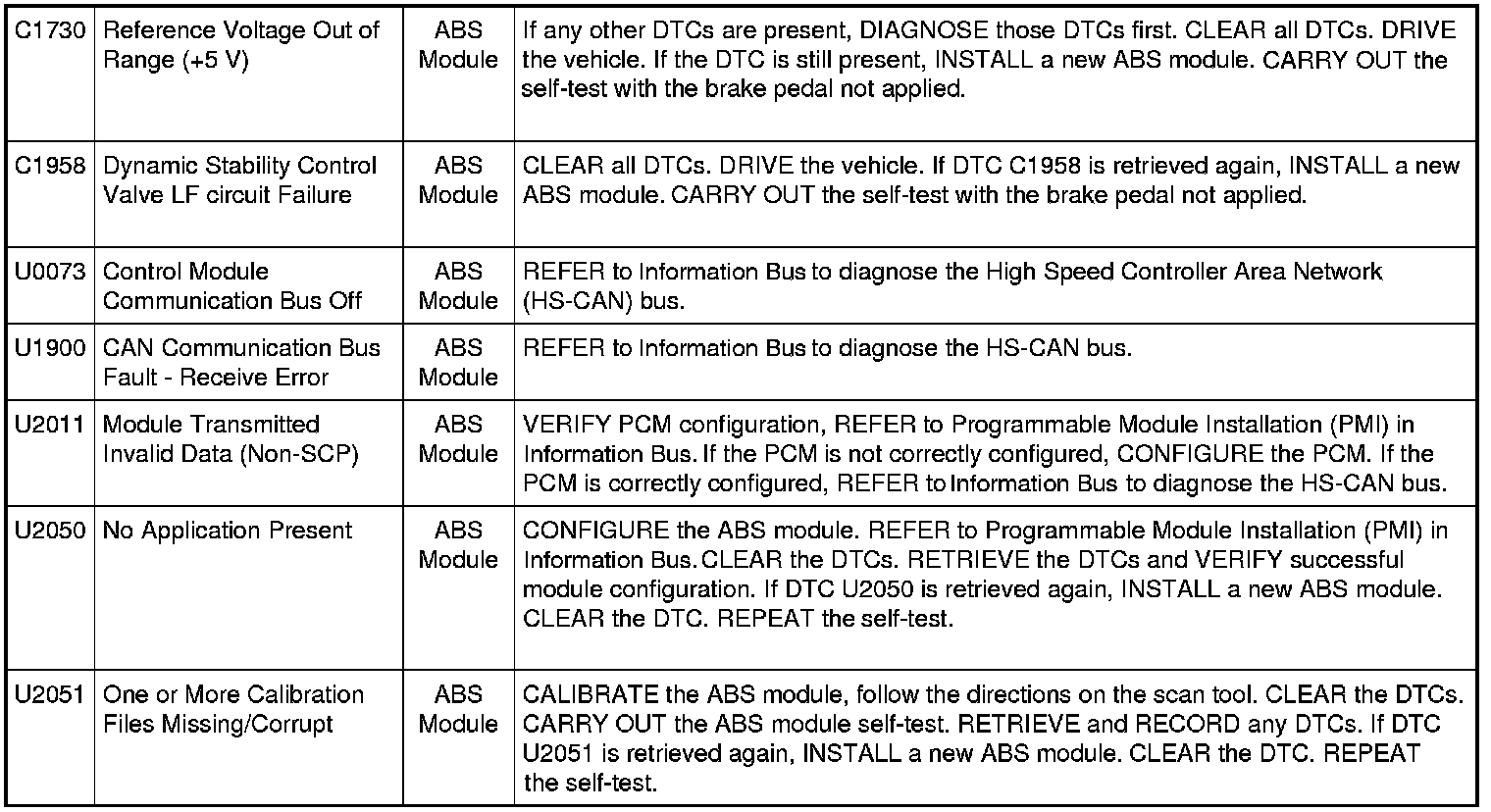

C1730-C1958 / U0073-U2051:
