Flywheel

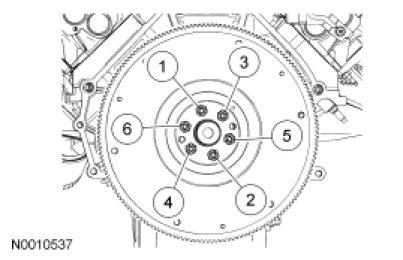

Tighten the flywheel bolts evenly in the sequence shown to fully seat the flywheel on the crankshaft pilot.
Tighten to 80 Nm (59 lb-ft).
