Timing Cover

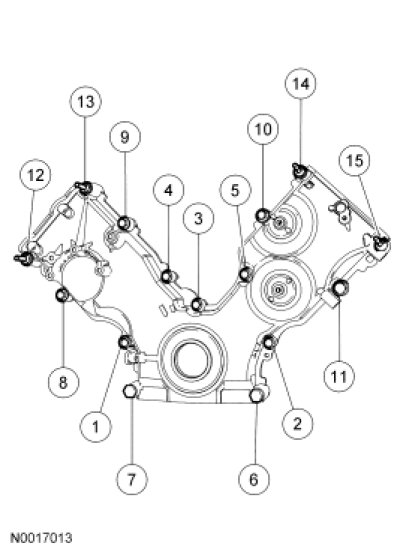

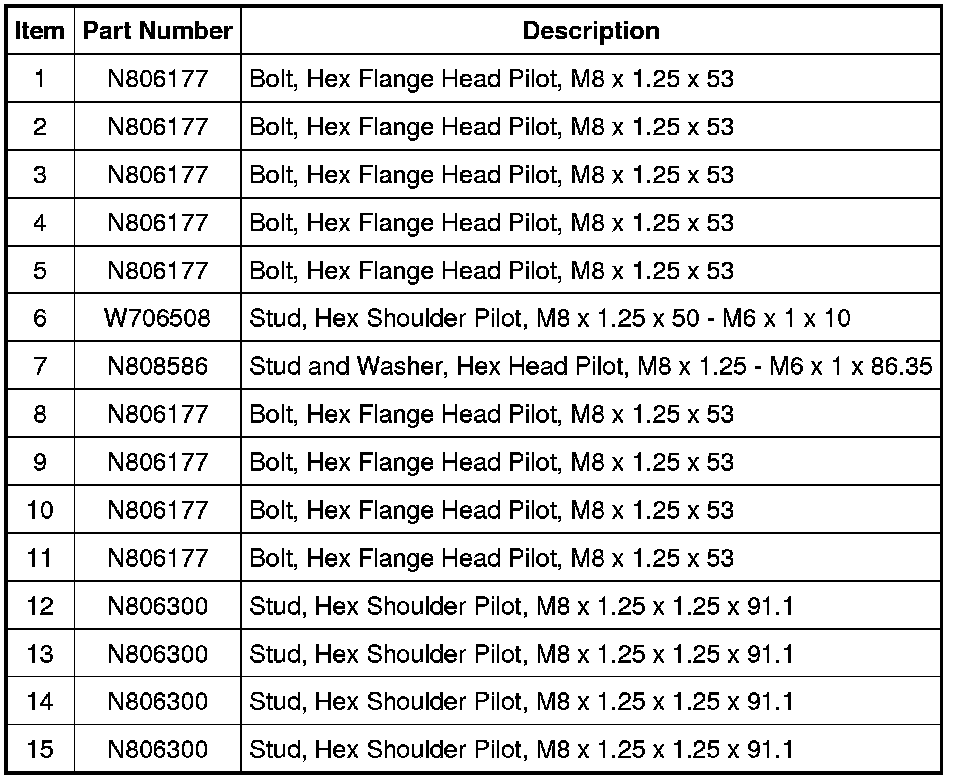

Tighten the 15 engine front cover fasteners in the sequence shown to 25 Nm (18 lb-ft).

Loosely install the bolts, then tighten the bolts in 2 stages, in the sequence shown.
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Tighten an additional 60 degrees.
