Intake Manifold

Install the 9 intake manifold bolts and stud bolt.

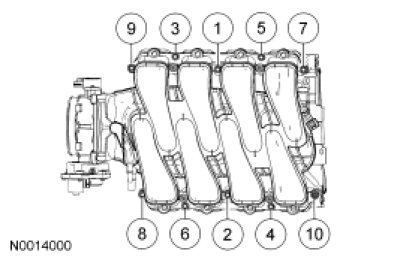

Tighten in the sequence shown to 10 Nm (89 lb-in).
