Subframe and Engine Support Insulators - Exploded View




Engine Lubrication Components - Exploded View

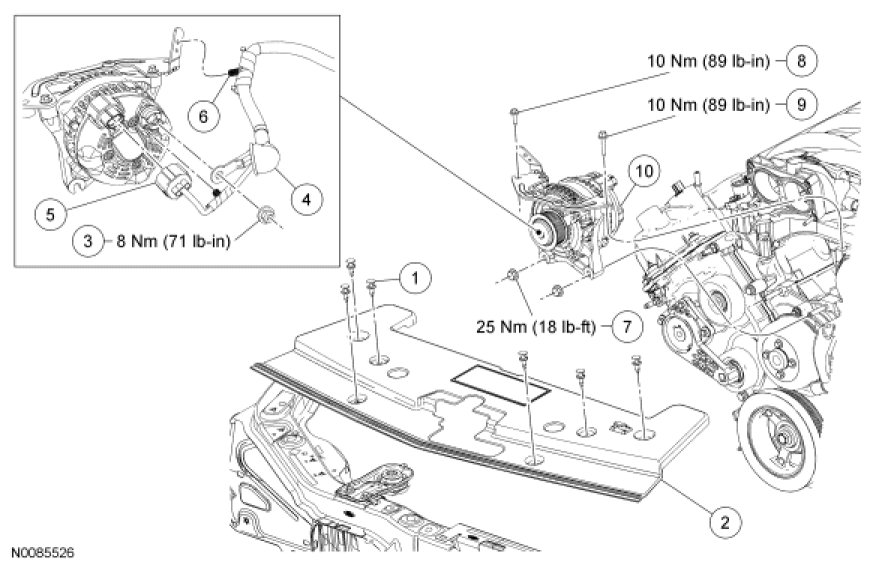

Generator and Radiator Sight Shield

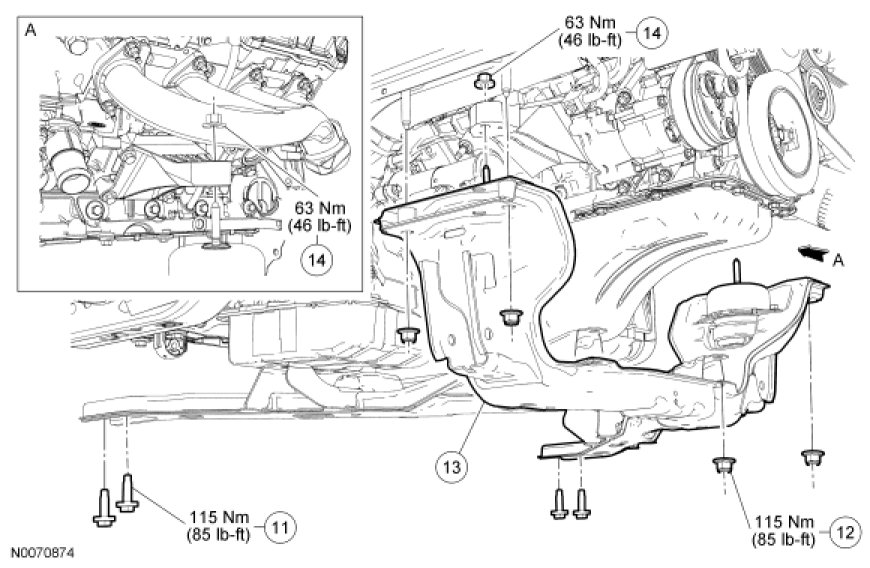

Subframe and Engine Support Insulators

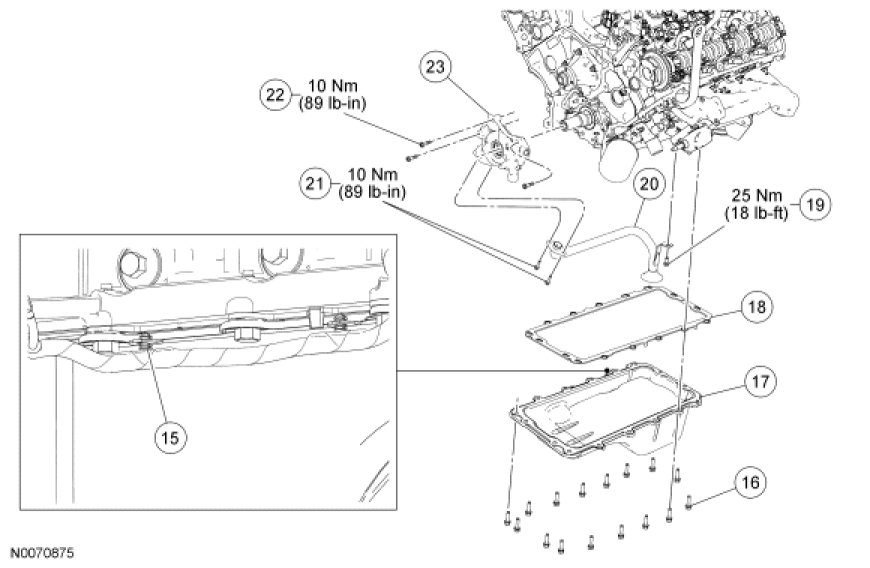

Oil Pump, Oil Pan and Oil Pump Screen and Pickup Tube









1. For additional information, refer to the procedures.
