Memory Set Switch




Memory Set Switch









Removal and Installation

1. Remove the driver interior door panel.

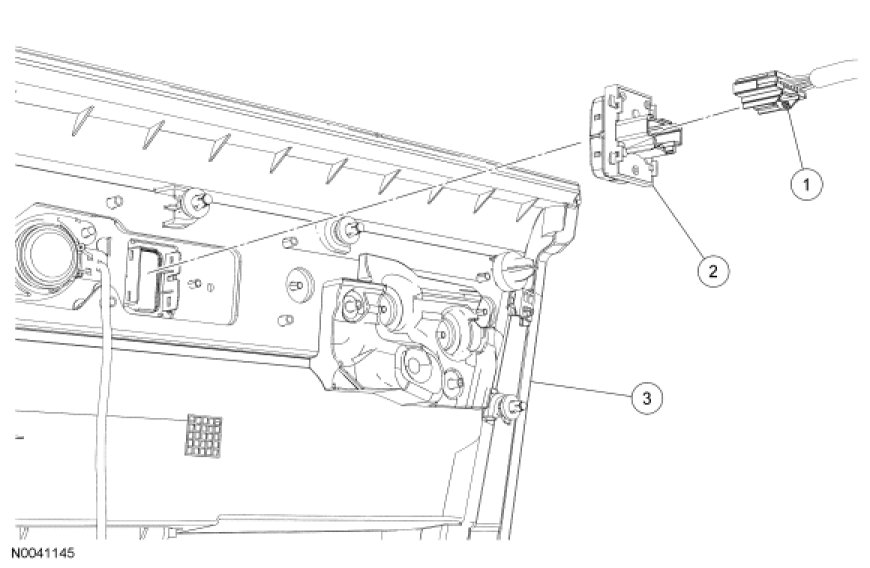

2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch.

3. To install, reverse the removal procedure.
