Audio Control Module (ACM) DTC Chart




Information and Entertainment System

DTC Charts

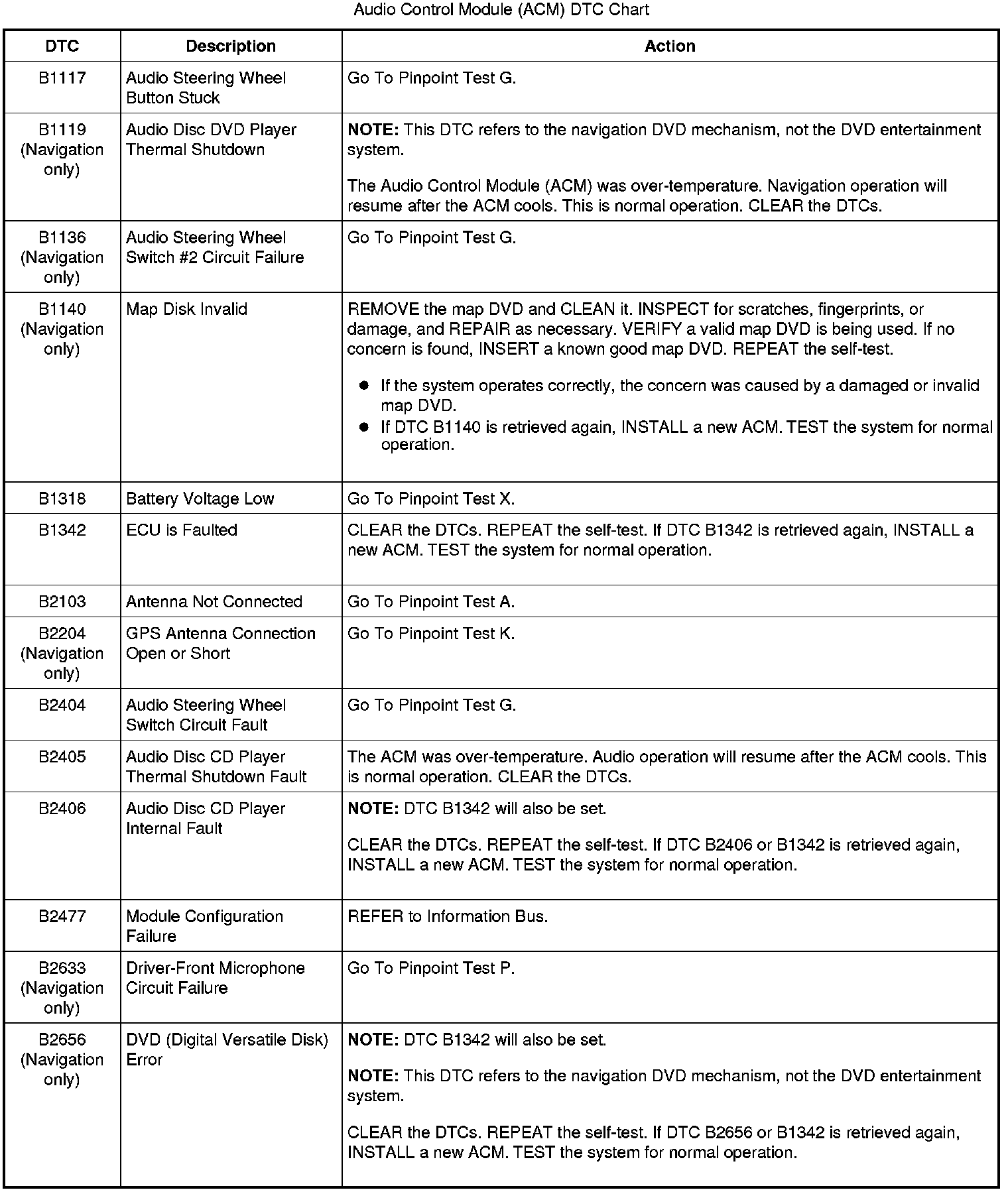

B1117-B2656:

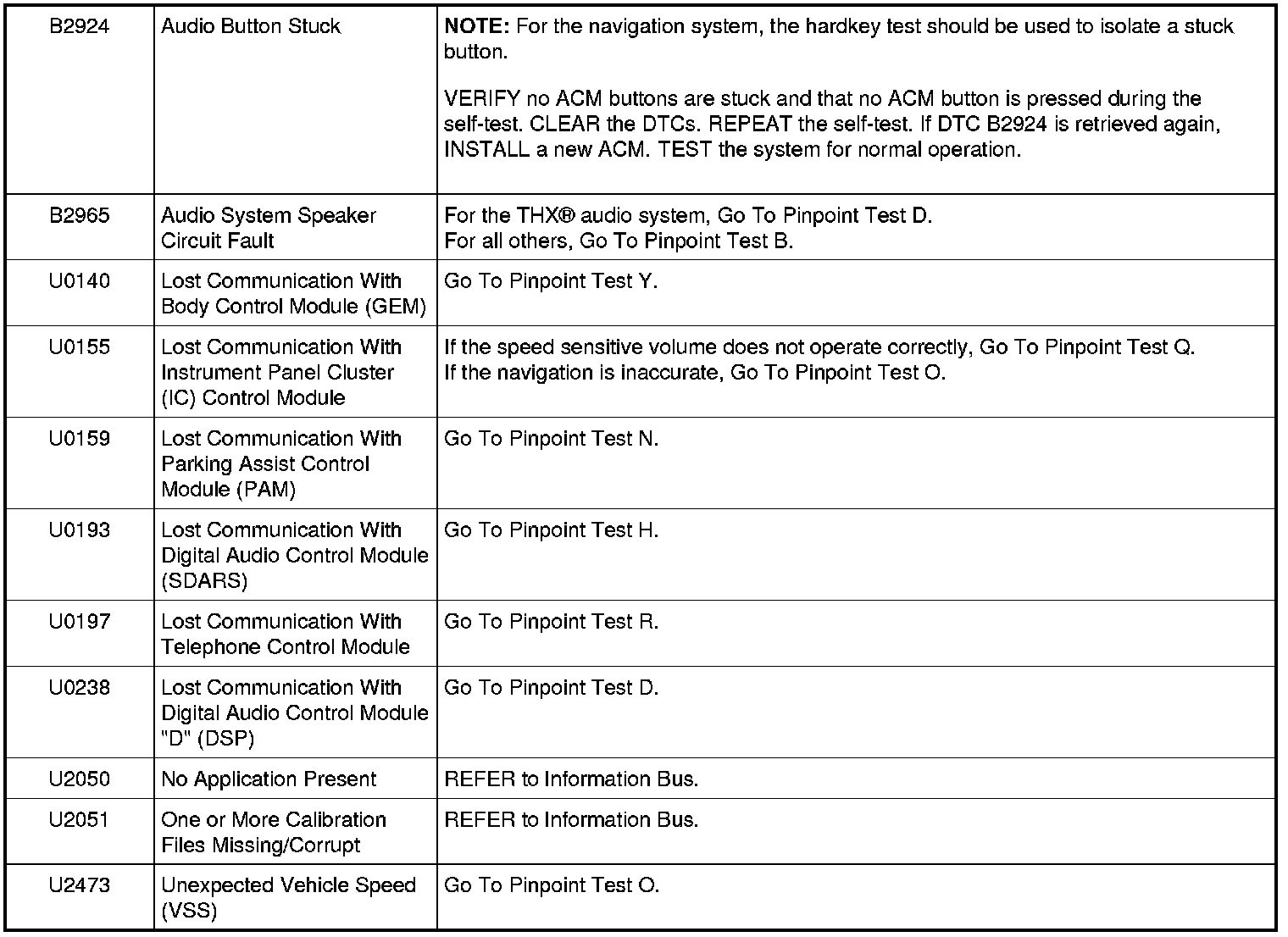

B2924-B2965 / U0140-U2473:
