Transaxle LH Support Insulator
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Support Bar, Engine | 303-290A | |
| Adapter for 303-290A (Support Leg) | 303-290-03A | |
| Adapter for 303-290A | 303-290-01 |

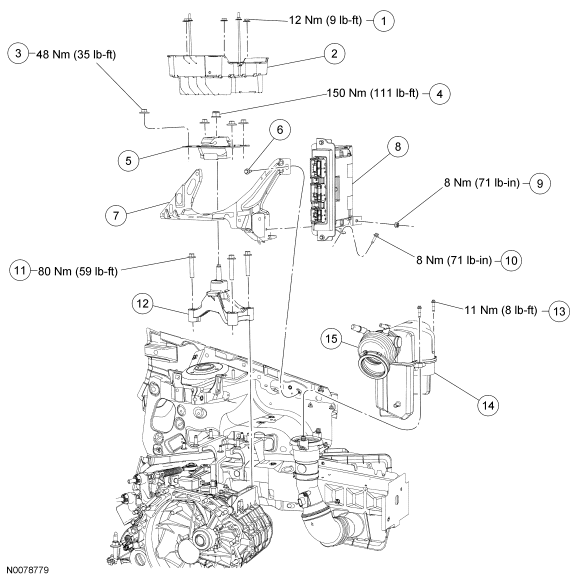

| Item | Part Number | Description |
|---|---|---|
| 1 | W700069-S | Battery tray nut (3 required) |
| 2 | 10723 | Battery tray |
| 3 | W703457-S | LH transaxle support insulator nut (4 required) |
| 4 | W520215-S | LH transaxle support insulator nut |
| 5 | 7M121 | LH transaxle support insulator |
| 6 | W710090-S | PCM/battery support bracket bolt (3 required) |
| 7 | 6K034 | PCM/battery support bracket |
| 8 | 12A651 | PCM |
| 9 | W520413-S | PCM nut |
| 10 | W500614-S | PCM bolt |
| 11 | W706777-S | LH transaxle support insulator bracket bolt (3 required) |
| 12 | 7M125 | LH transaxle support insulator bracket |
| 13 | - | Resonator bolt (2 required) |
| 14 | - | Resonator |
| 15 | - | Intake air hose |
- Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
- Release the 2 wiring harness pushpins, then remove the 3 battery tray nuts and the battery tray.
- To install, tighten to 12 Nm (9 lb-ft).
- Install the special tools.
- Remove the 5 LH transaxle support insulator nuts and the LH transaxle support insulator.
- To install, tighten the center nut to 150 Nm (111 lb-ft).
- To install, tighten the outer nuts to 48 Nm (35 lb-ft).
- To install, reverse the removal procedure.
