Safety Belt Retractor - Rear, Outboard: Notes

NOTE: LH shown in illustration, RH similar.

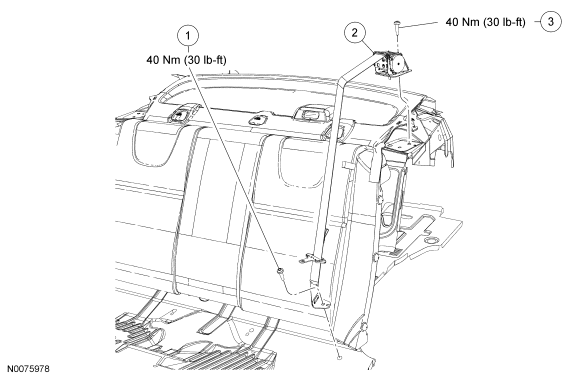

Fig 1: Safety Belt Retractor - Rear, Outboard Components With Torque Specifications
GF0042963Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Outboard safety belt anchor bolt (part of 611B68)
2 611B68 Outboard safety belt retractor
3 - Outboard safety belt retractor bolt (part of 611B68)
