Safety Belt Retractor - Rear, Center: Notes

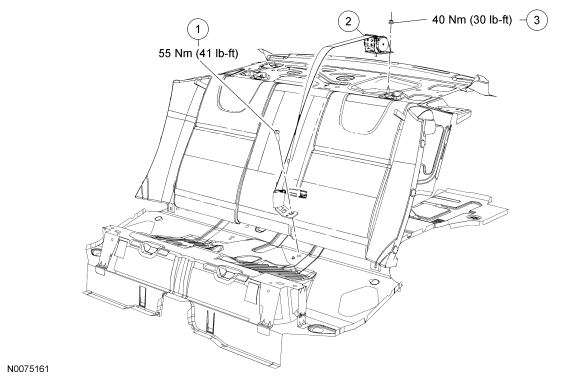

Fig 1: Safety Belt Retractor - Rear, Center Components With Torque Specifications
GF0042961Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Rear center safety belt anchor bolt (part of 611B66)
2 611B66 Rear center safety belt retractor
3 W708903 Rear center safety belt retractor nut
