Overhaul Specs

Direct Clutch Hub Shim Selection Chart:

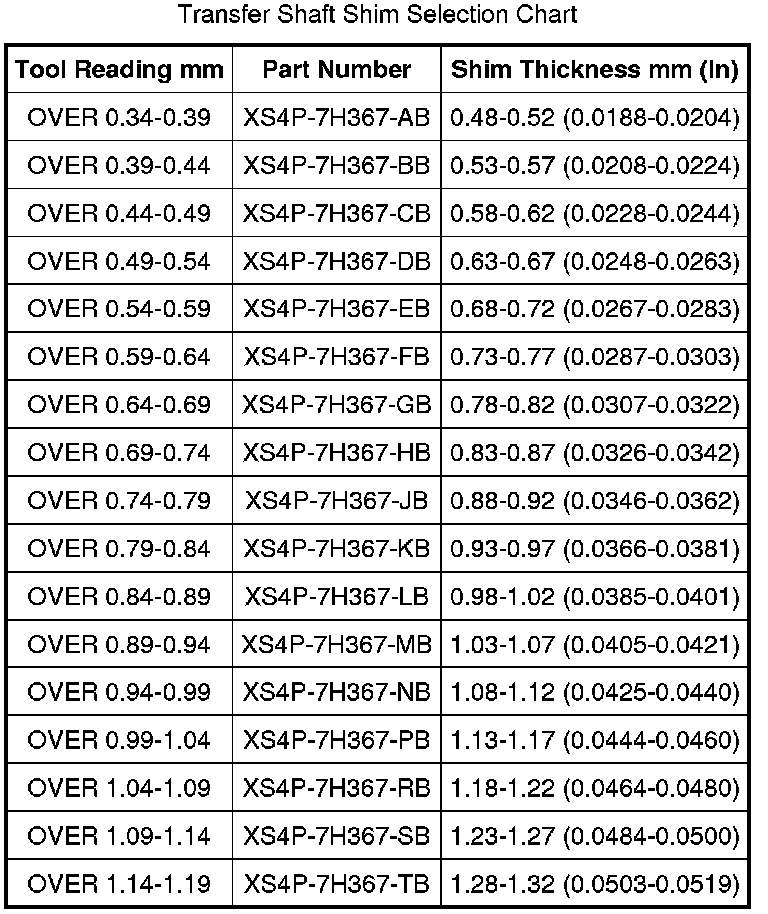

Transfer Shaft Shim Selection Chart:

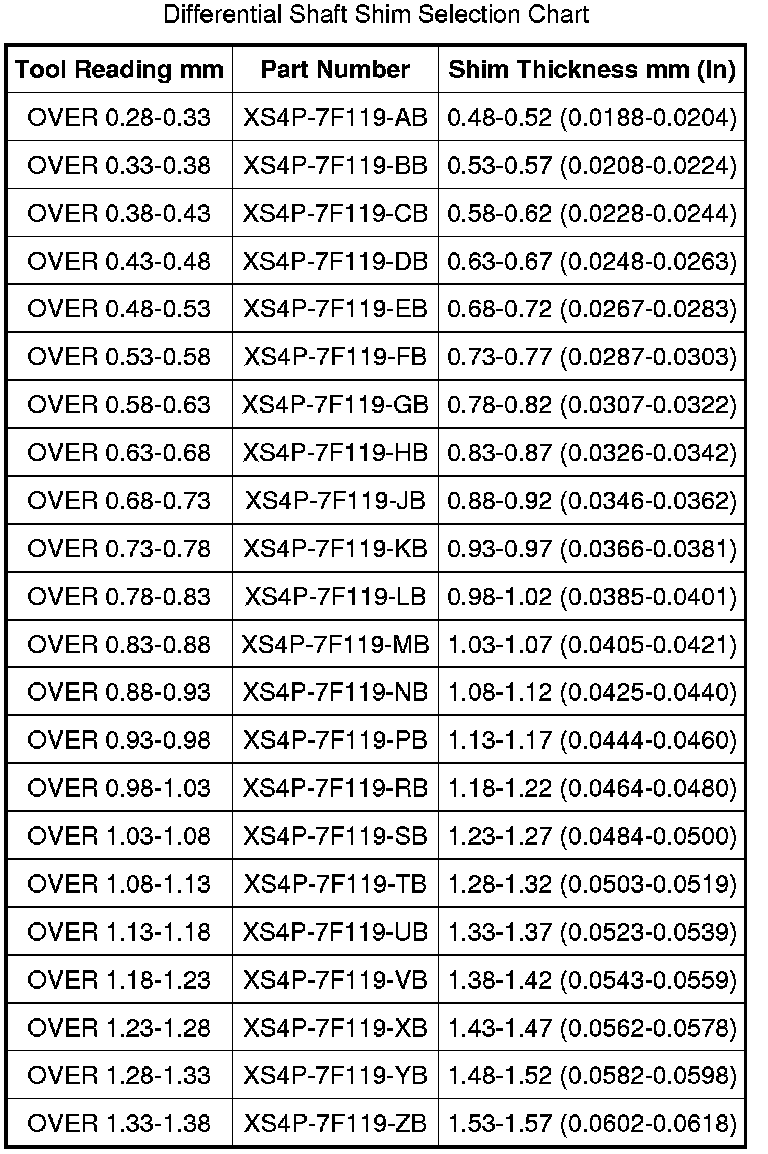

Differential Shaft Shim Selection Chart:






Solenoid Operation Chart - Converter Engaged:






Solenoid Operation Chart - Converter Disengaged:

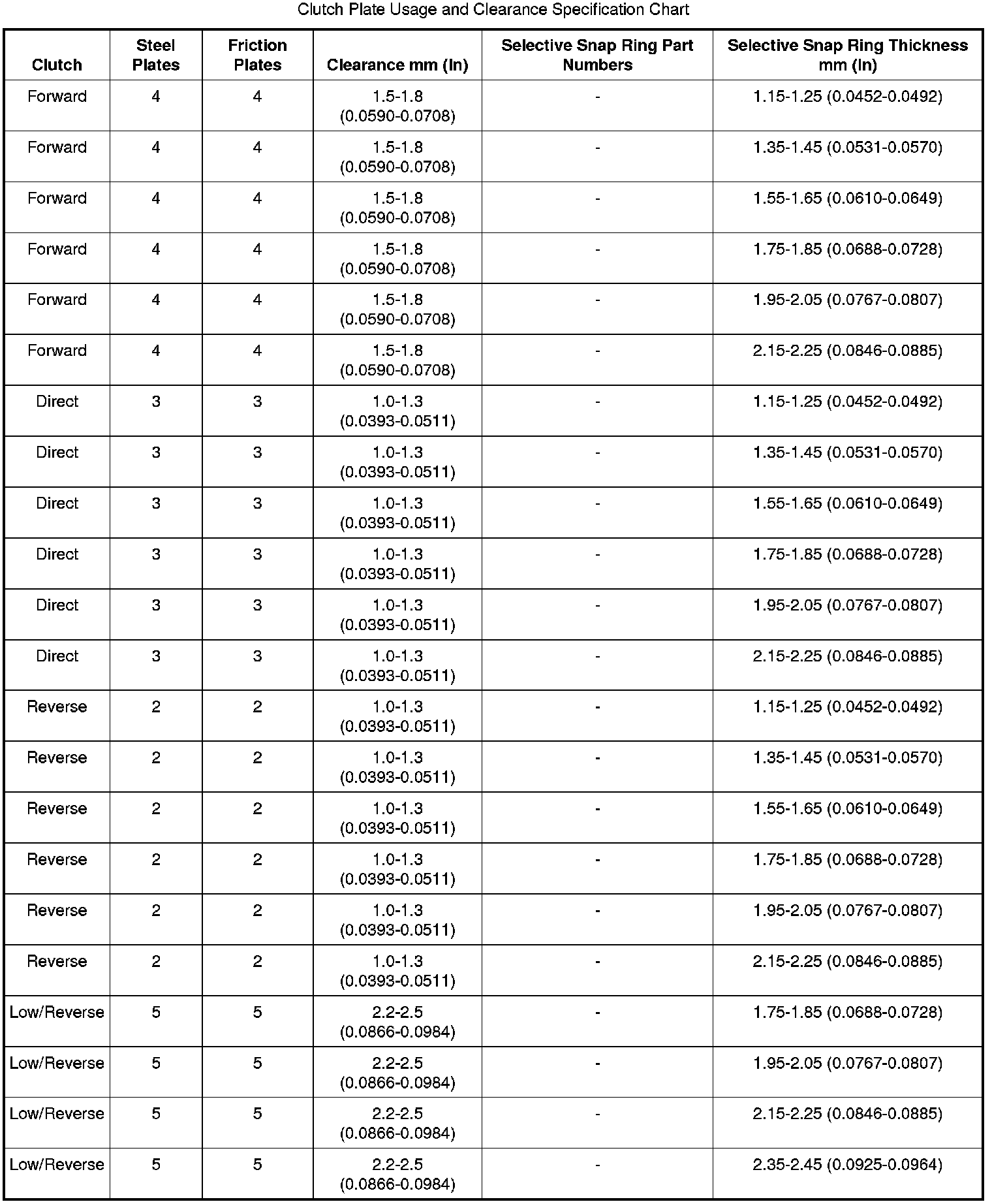

Clutch Plate Usage and Clearance Specification Chart (Part 1):





Clutch Plate Usage and Clearance Specification Chart (Part 2):






Intermediate/Overdrive Band Bolt Chart:






Reference: Band/Clutch Application Chart:






Line Pressure Chart:






Stall Speed Chart:
