Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):

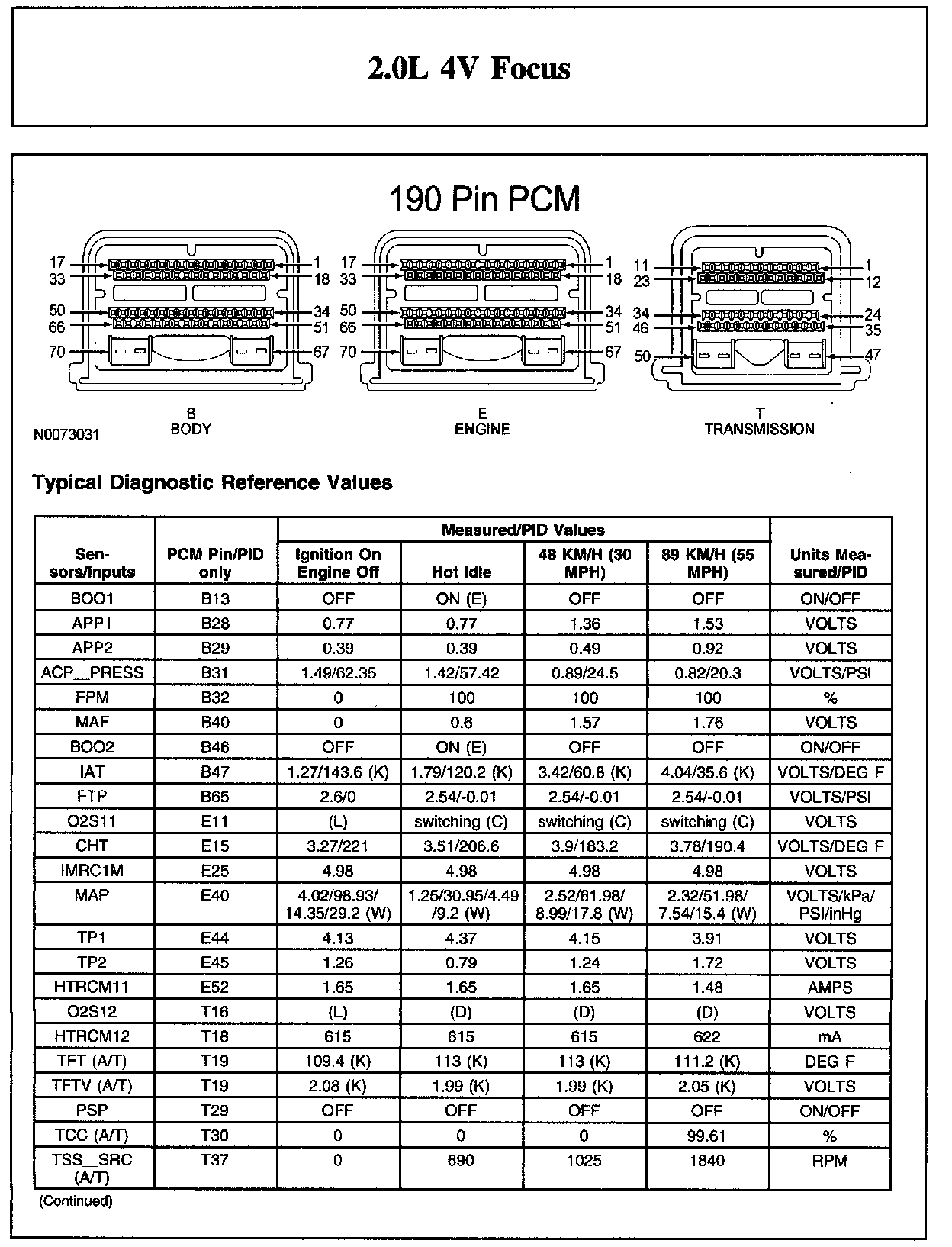

2.0L 4V Focus (Part 1):

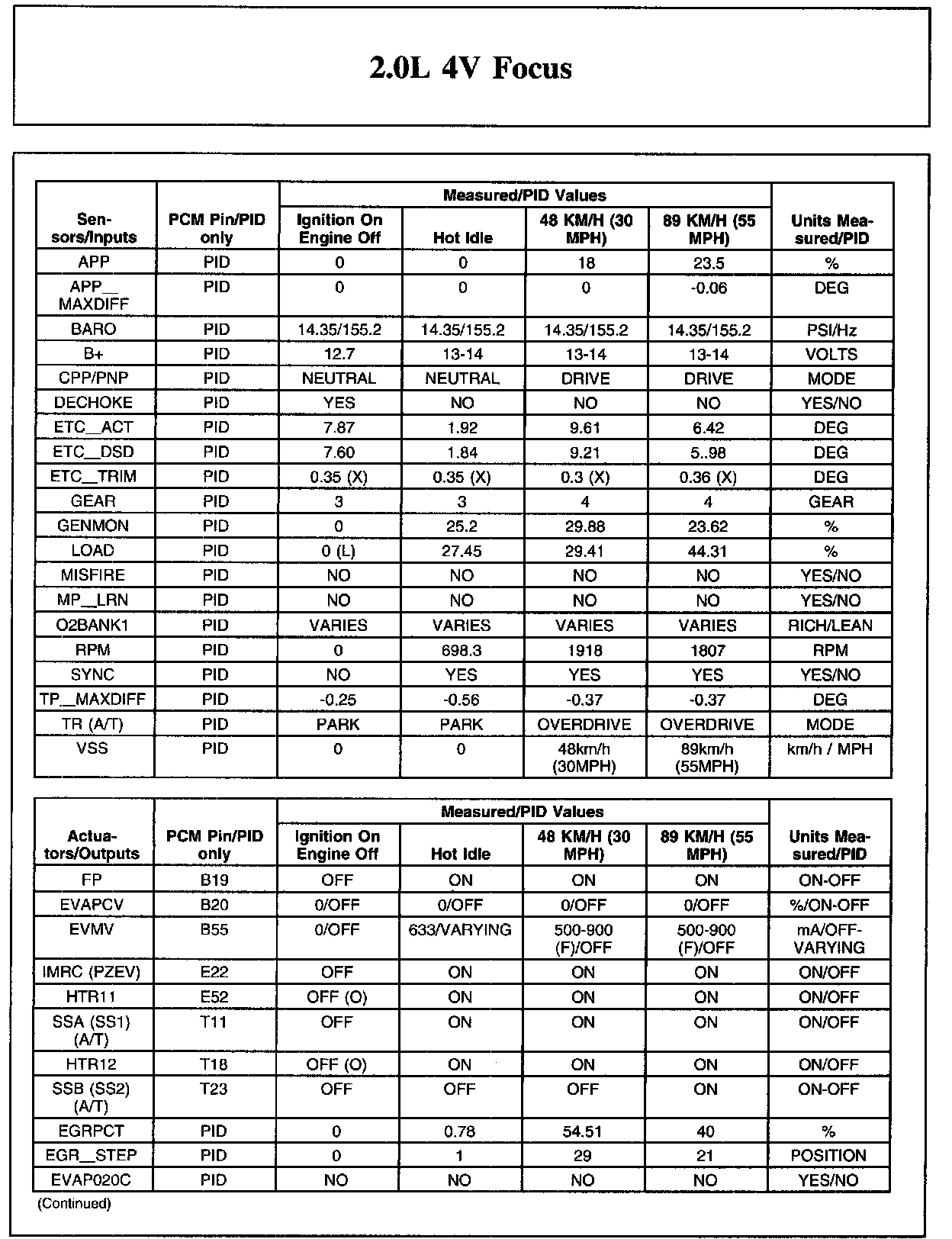

2.0L 4V Focus (Part 2):

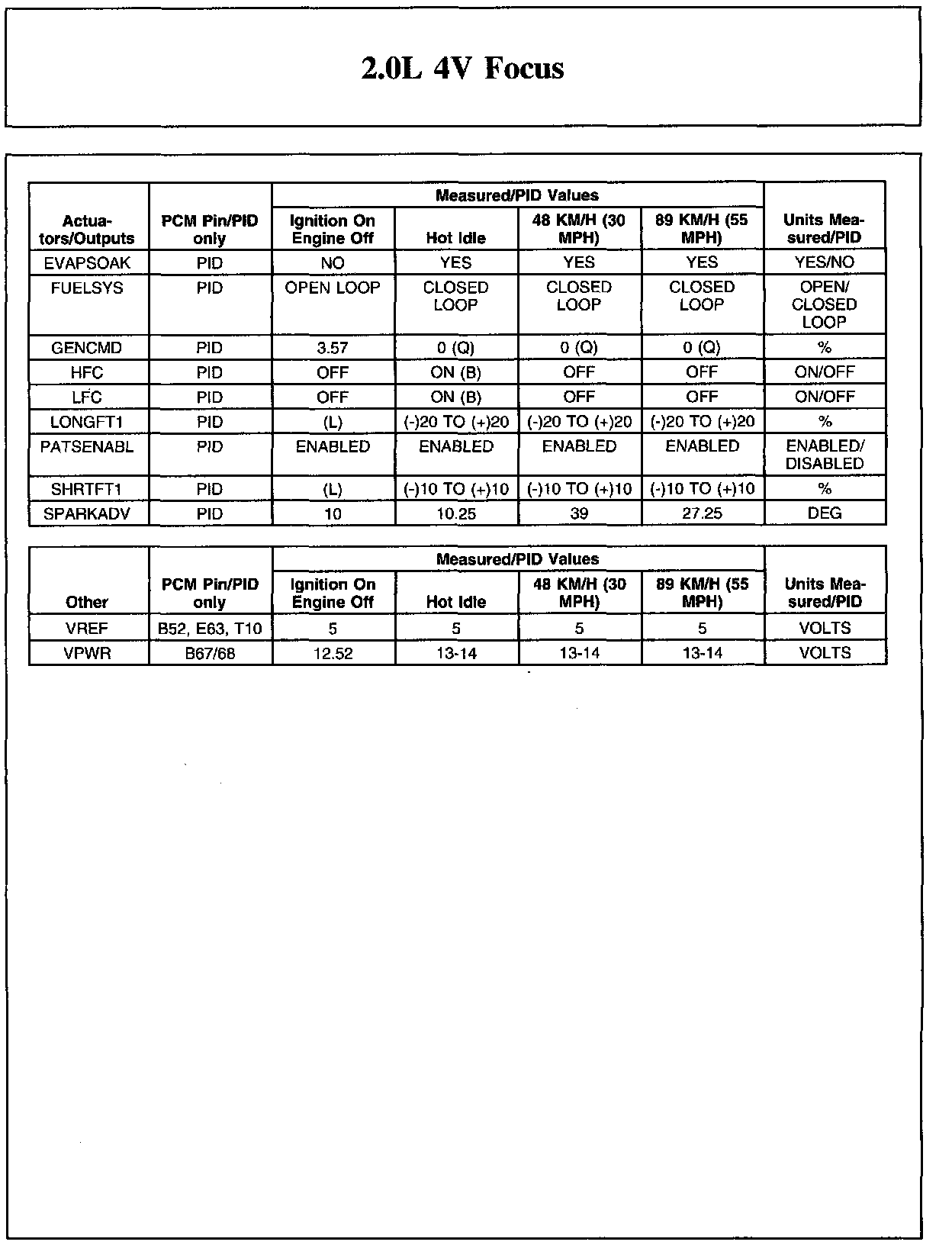

2.0L 4V Focus (Part 3):
