ABS Module DTC Chart




Anti-Lock Control

DTC Charts

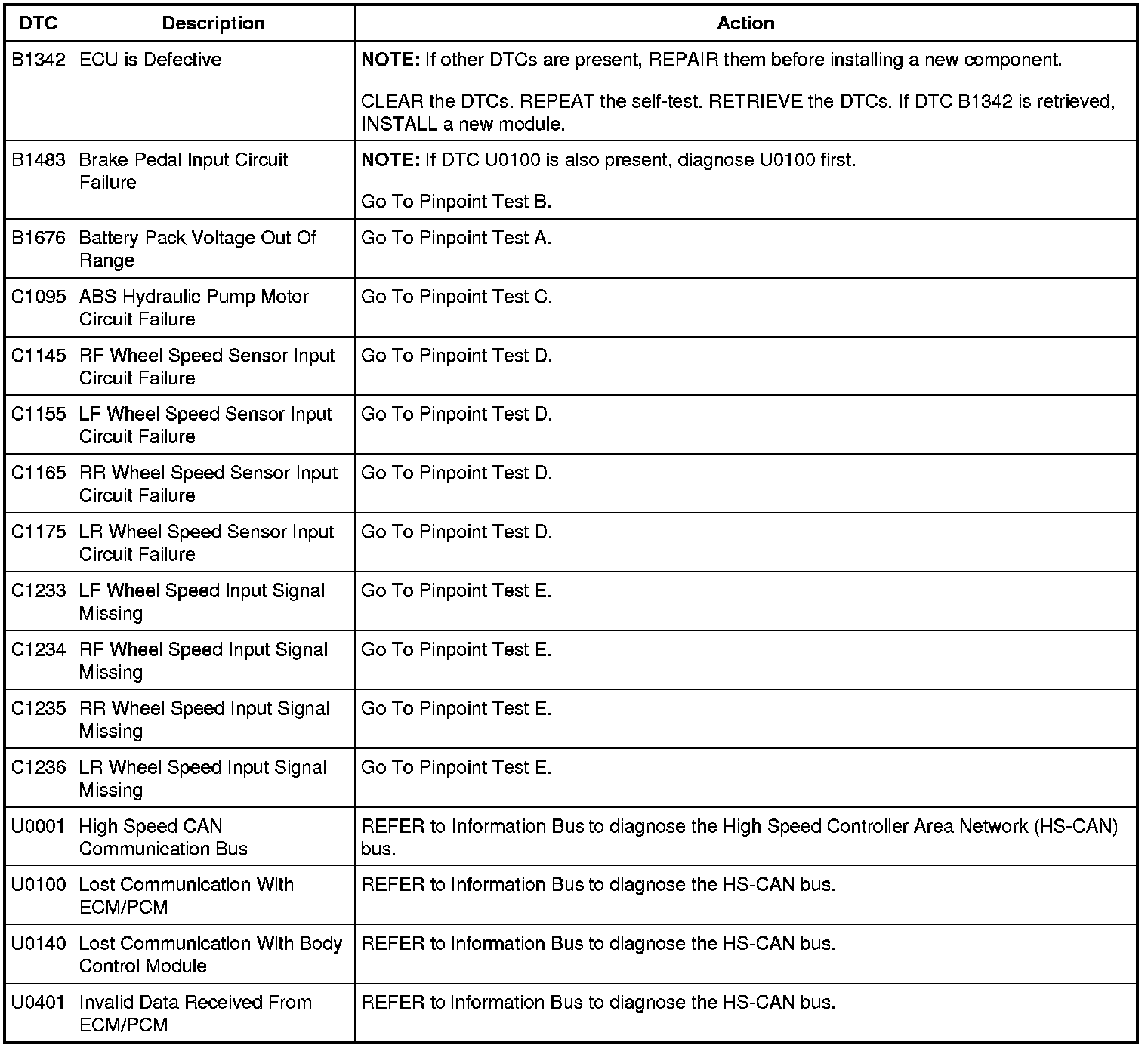

ABS Module DTC Chart

B1342-B1676 / C1095-C1236 / U0001-U0401:
