Right Front Impact Sensor Connector - C1466

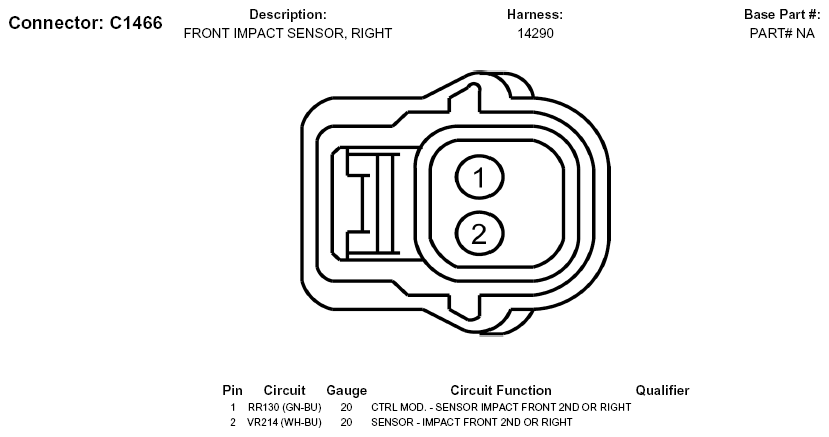

Fig 1: Right Front Impact Sensor Connector End View (C1466)
G05776992Courtesy of FORD MOTOR CO.
