Driver 2 Side Impact Sensor Connector - C3210

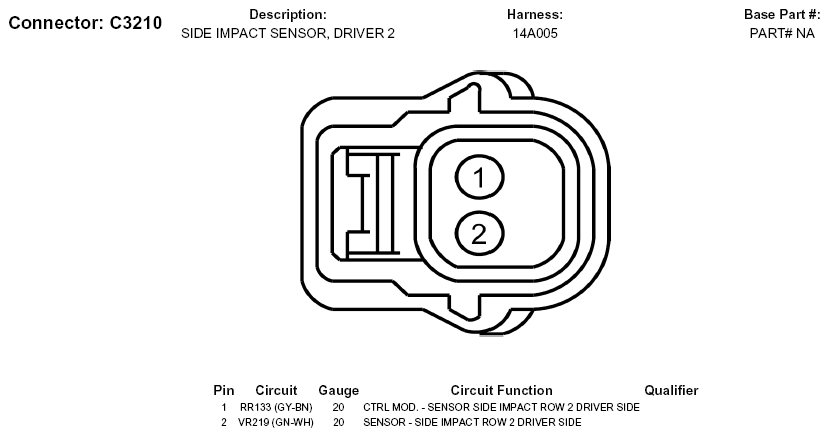

Fig 1: Driver 2 Side Impact Sensor Connector End View (C3210)
G05777052Courtesy of FORD MOTOR CO.
