Steering Column Shaft - Intermediate: Notes

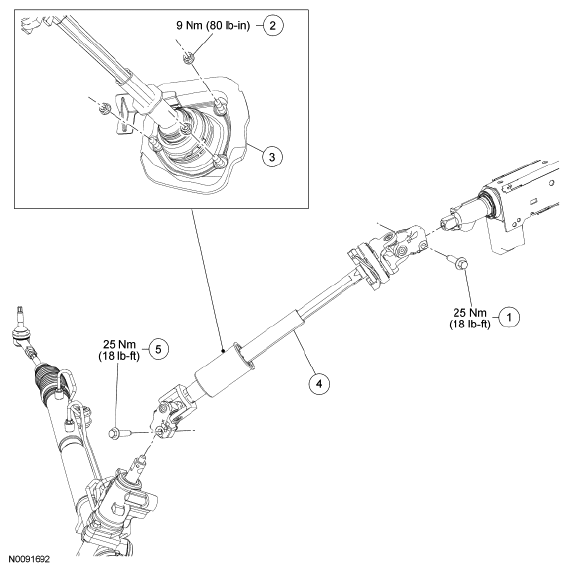

Fig 1: Steering Column Shaft Replacement Components -- Intermediate -- With Torque Specifications
G06063998Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W712961 Steering column shaft-to-steering column bolt
2 W705460 Steering column shaft boot nut
3 3C611 Steering column shaft boot
4 3B676 Steering column shaft
5 W712961 Steering column shaft-to-steering gear bolt
