Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch

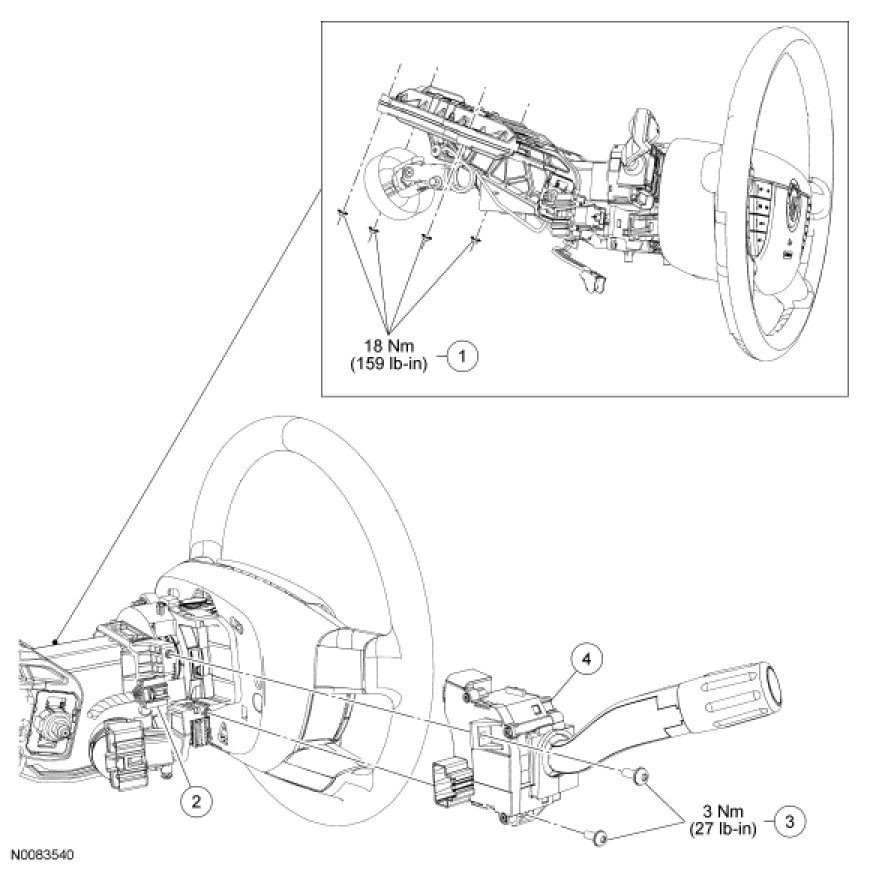

Removal and Installation

1. Remove the steering column shroud.

2. Remove the 4 nuts and lower the steering column.
- To install, tighten to 18 Nm (159 lb-in).

3. Disconnect the multifunction switch electrical connector.

4. Remove the 2 screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).

5. To install, reverse the removal procedure.
