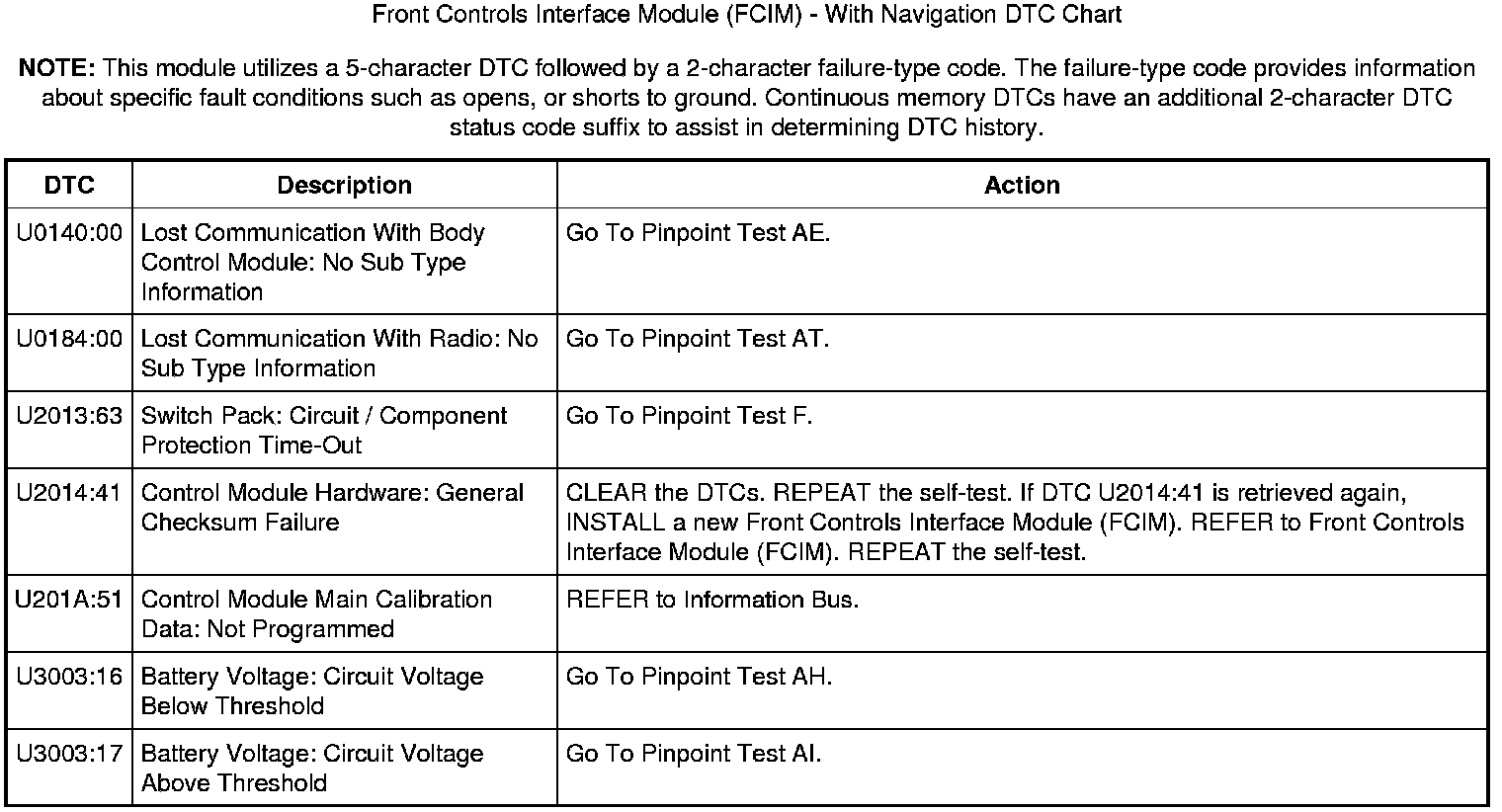

Front Controls Interface Module (FCIM) - With Navigation DTC Chart




Information and Entertainment System

DTC Charts

U201A:51-U3003:17:
