Passenger Compartment Fuse Panel

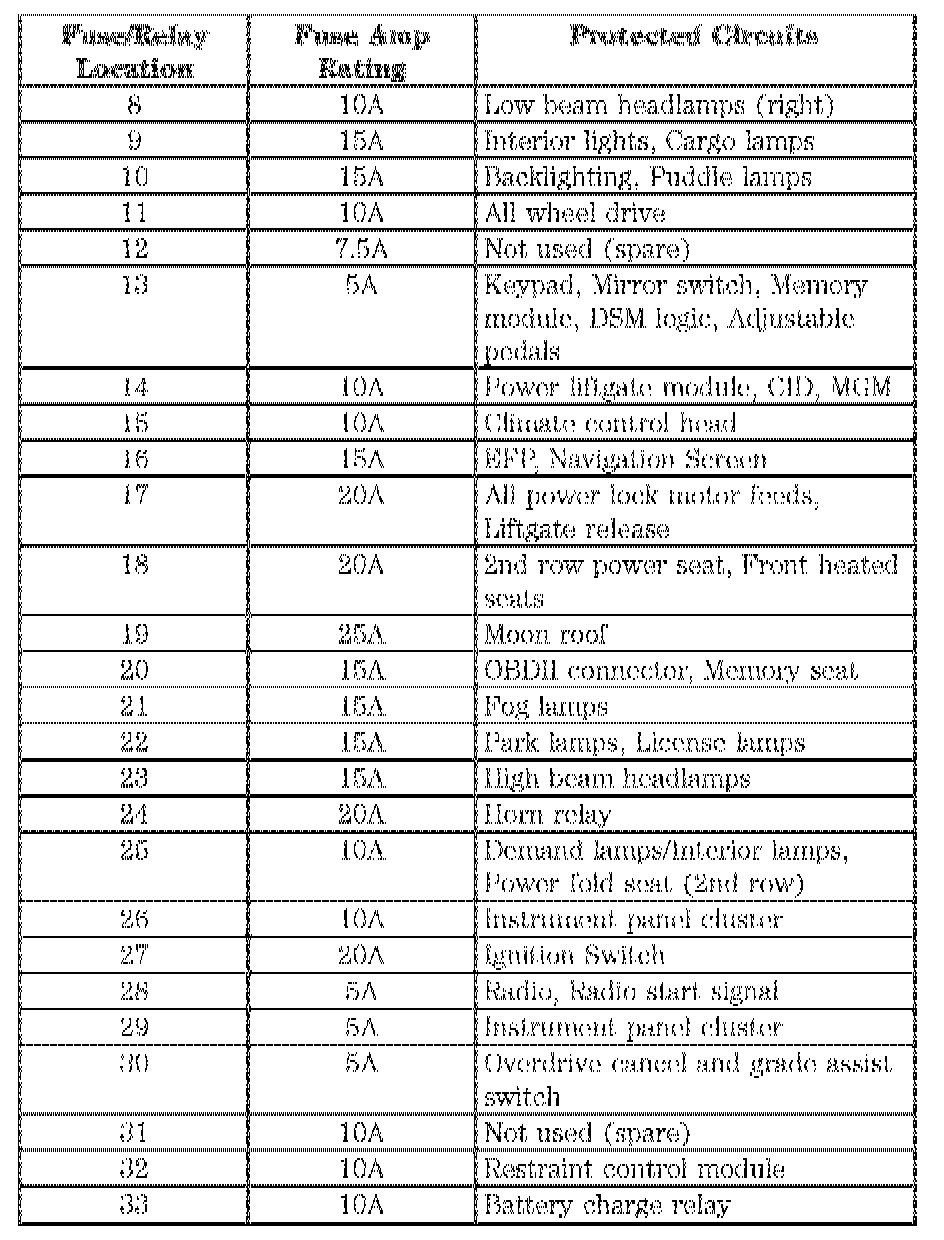

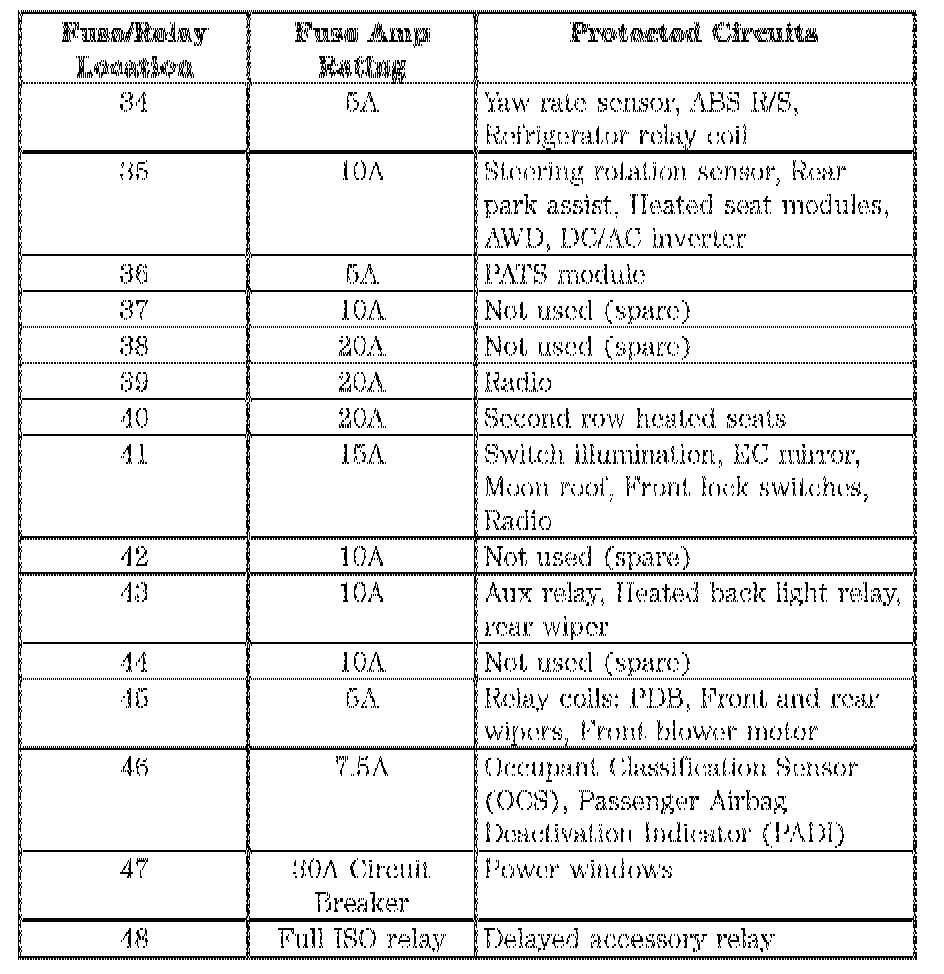

Passenger compartment fuse panel

The fuse panel is located under the instrument panel to the left of the
steering wheel.
