Home >> Ford >> 2009 >> Flex AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Adjust Switch, Left Rear

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

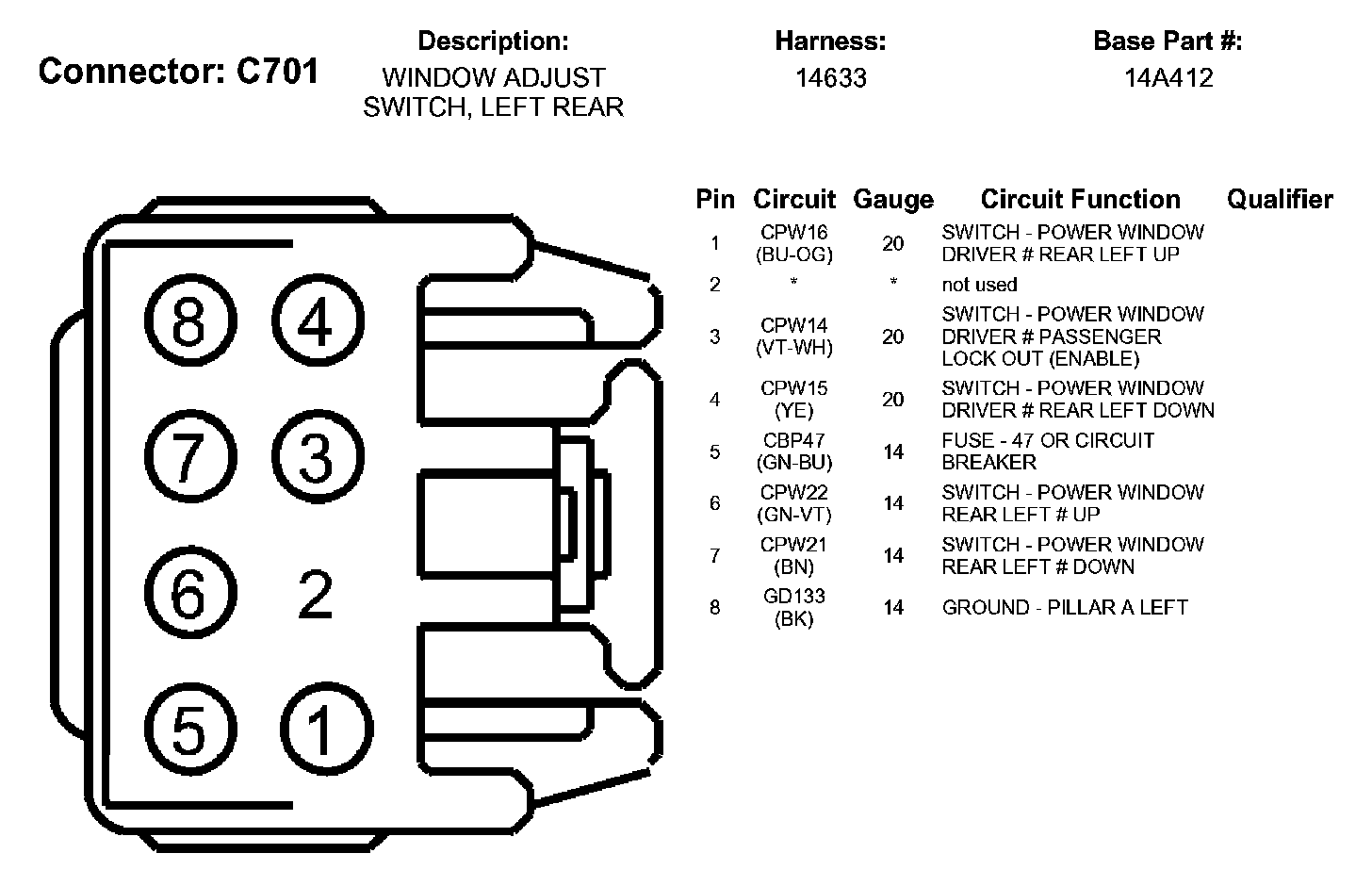

Window Adjust Switch, Left Rear
