Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor - 4.6L (2V)













Removal and Installation

1. Remove the generator.

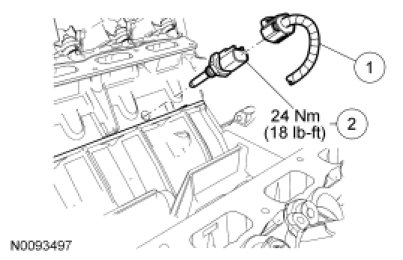

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

3. Remove the CHT sensor.
- To install, tighten to 24 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
- Apply anti-seize to the threads of the CHT sensor.
